About the Sloan 3453234

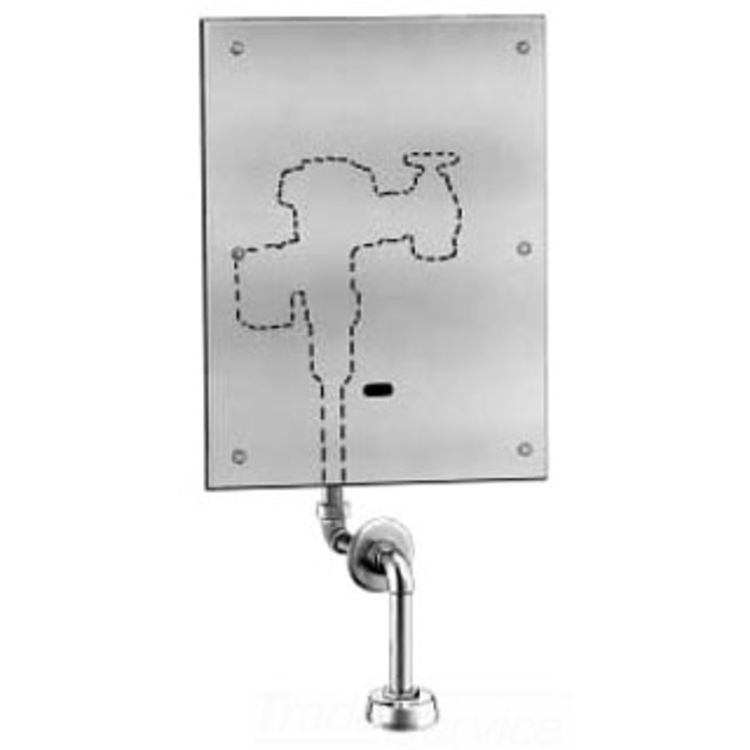

Sloan Royal 197 is a Concealed Sensor Operated Royal Model Urinal Flushometer enclosed behind a 13" x 17" Wall Box with Stainless Steel Access Panel, for top spud urinals. 1. 0 Gpf, ADA Compliant. Adjustable from 11 3/4 In. to 12 3/4 In. from center of valve to finished wall. Sloan Royal 197 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer.

Product Details

Product: Educational
  Top Spud Flush Valve
Style: Billiard Table
  Sensor Operated
Faucet Features: ADA
Manufacturer: Sloan
Product Collection: Royal
Mpn # 3453234
Weight 21.13 lbs.

Product Features

  • 11-3/4" 12-3/4" L Dimension
  • 1.0 gpf (3.8 Lpf)
  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • OPTIMA EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
  • Non-Hold-Open Integral Solenoid Operator
  • 13" x 17" EASY ACCESS Wall Box with Stainless Steel Access Panel and Vandal Resistant Screws
  • 3/4" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection, Spud Coupling and Flanges for 3/4" Exposed Top Spud
  • Sweat Solder Adapter
  • Chrome Plated Exposed Flushometer Parts? High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX Rubber Compound for Chloramine Resistance
