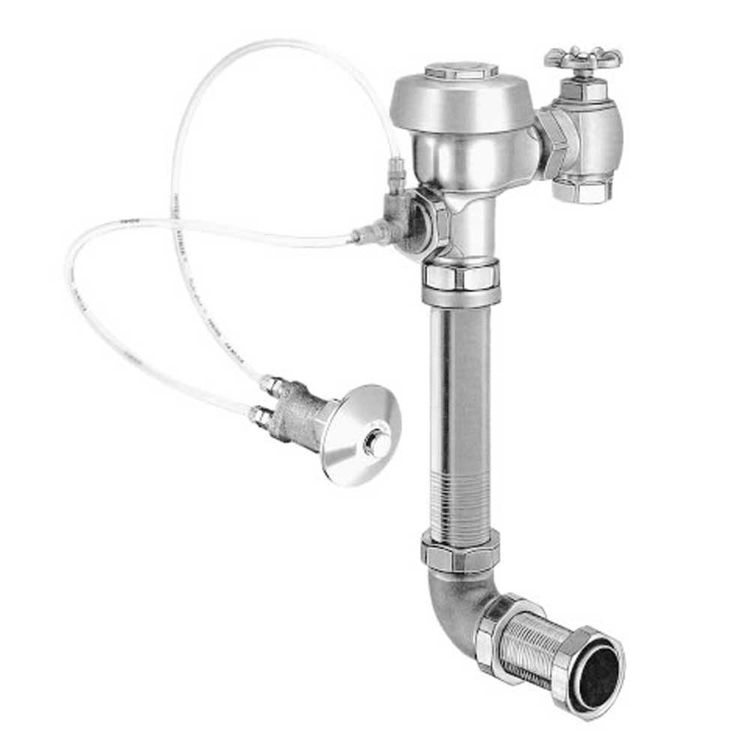

Sloan Royal 9609-1.5 Concealed Manual Specialty Urinal Hydraulic Flushometer (3918729)

SKU: 93776
$273.26/ea
 Free Shipping!
Save 35% · Retail: $420.40

  Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$273.26/ea

About the Sloan 3918729

Sloan Royal 9609 is a Concealed Hydraulically Operated Urinal Flushometer, for 1 back Inlet urinals. 1. 5 Gpf. ADA Compliant. Sloan Royal 9609 is a Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply.

Product Details

Product: Medical
  Back Spud Flush Valve
Manufacturer: Sloan
Style: Bunk Beds
  Hydraulic
Faucet Features: ADA
Mpn # 3918729
Weight 9.26 lbs.

Product Features

  • Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for either left or right hand supply
  • Dual Filtered By-Pass
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX rubber compound for Chloramine resistance
  • ADA Compliant Non-Hold-Open feature type Actuator (specify Actuator type listed below)
  • 1" I.P.S. Wheel Handle Bak-Chek Angle Stop
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker
  • Elbow Flush Connection
  • Coupling for 1-1/2" NPT Back Inlet Urinals (for connection in the pipe chase - flush connection through the wall not provided by Sloan)
  • Sweat Solder Adapter
  • Exposed parts Chrome Plated
  • Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
