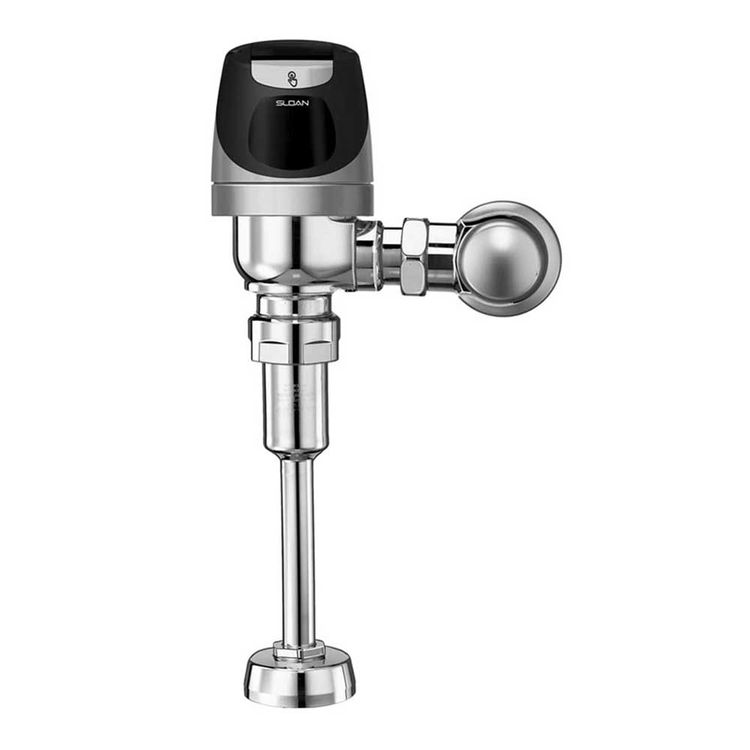

Sloan 3370004 Sloan SOLIS 8186-0.5-OR Exposed Sensor Urinal Flushometer (3370004)

Sloan SOLIS 8186-0.5-OR Exposed Sensor Urinal Flushometer (3370004)

SKU: 93909
$ 573.63 / ea
 Free Shipping!
Save 35% · Retail: $882.50

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks




Ships From Price Qty
Sacramento California Warehouse
Ships in 2-3 days
$573.63/ea 4
Order From Manufacturer
Available to Ship in 2-3 weeks
$573.63/ea ∞

About the Sloan SOLIS 8186-0.5-OR Exposed Sensor Urinal Flushometer (3370004)

Sloan SOLIS 8186 is an Exposed, Solar Powered, Sensor Activated Sloan SOLIS Model Urinal Flushometer, with Smart Sense Technology. 0. 5 GPF. Sloan SOLIS 8186 is a Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right-hand supply. ADA Compliant.

Product: Top Spud Flush Valve
Style: Sensor Operated
Mount Type: Wall Mount
Manufacturer: Sloan
Product Collection: Solis
Mpn # 3370004
Weight 8.20 lbs.
  • 0.5 gpf (1.9 Lpf)
  • Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right hand supplyFor flush volumes 0.125 gpf and 0.25 gpf:
  • Pressure compensating cartridge assembly
  • Synthetic rubber seals for chloramine resistance For flush volume 0.5 gpf: PERMEX Synthetic Rubber Diaphragm with Dual Filtered Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance.
  • Flush Accuracy Controlled by CID Technology For All Flush volumes:
  • Reduces water usage up to 80% over Standard Sensor Urinals.
  • Solar Powered - The sensor assembly is powered by a solar cell that will harvest power from artificial indoor light, either incandescent or fluorescent light, and use it as the energy source. The solar cell can provide approximately 100% power with 650 Illuminance (lux).
  • Four (4) Size AA Battery Back-up Power Source
  • Low Battery Flashing LED
  • ADA Compliant Sloan Solis Solar Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator
  • Engineered Metal Cover with replaceable Lens Window
  • User friendly three (3) second Flush Delay
  • Courtesy Flush Override Button
  • Infrared Sensor Range Adjustment Screw
  • Initial Set-up Range Indicator Light (first 10 minutes)
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning, Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine resistance
