Sloan WES-7 (1001502) T-Bar Cartridge Removal Tool

SKU: 94055
   based on 1 Reviews
100% recommend this product
Save 19% · Retail: $40.90

In Stock and Ready to Ship
More Buying Options

Ships From Price Qty
California Warehouse
Ships in 1-4 Days
$36.88/ea 27
Iowa Warehouse
Ships in 1-4 Days
$38.48/ea 27
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Sloan 1001502

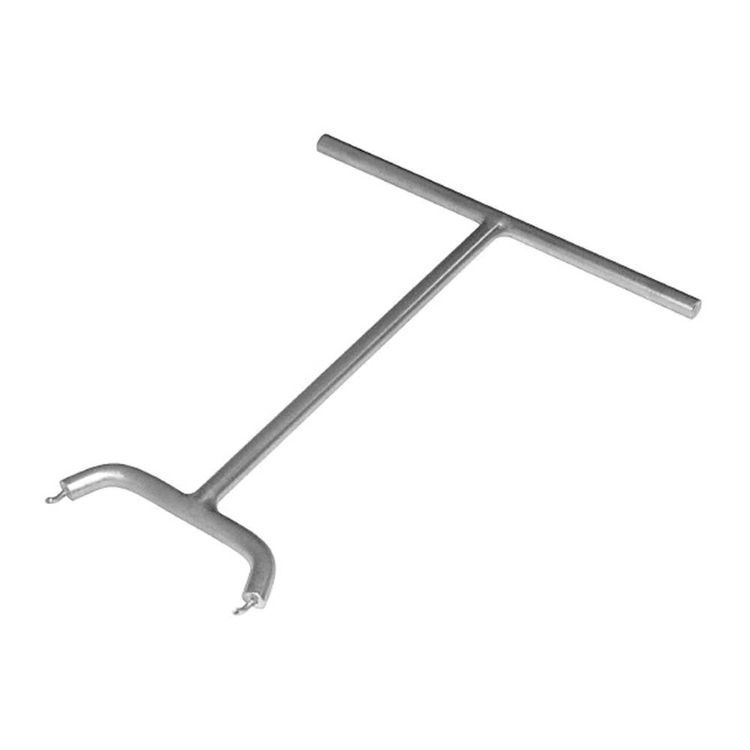

This Sloan WES-7 (Part 1001502) T-bar cartridge removal tool/key is made of solid steel and makes it easy to install and replace Sloan universal waterfree urinal cartridges. The T-bar handle provides good leverage for removing a used cartridge. Simply insert the two prongs of the key into the matching holes on the top of the cartridge, turn left to unlock, lift, drain, and then dispose of the cartridge according to the manufacturer's instructions. After sanitizing the urinal fixture, insert a new cartridge into the housing, turn the key right until the cartridge clicks and locks into place; then follow the instructions for adding clean water and sealant to the system. The Sloan Valve Company has been committed to designing and manufacturing innovative, reliable, high-quality plumbing products that conserve water and energy since it began in 1906.

Product Details

Product: Hand Tools
Manufacturer: Sloan
Style: Waterless
Mpn # 1001502
Weight 1.30 lbs.

Product Features

  • Width: 9-1/4 Inch
  • Length: 9-1/4 inch
  • Material: steel
  • Designed for installing and replacing Sloan universal waterfree urinal cartridges
  • T-bar handle provides good leverage for unlocking, twisting, and removing used cartridges
  • Solid-steel hand tool


Rated 3 out of 5 based on 1 reviews

Works OK Rated 3 by CJ
  Yes, I recommend this product.
This tool is far better than the ones that come with replacement cartridges. More leverage can be applied for both twisting and lifting the old cartridge out of place. However, the tangs/prongs on the end are easily bent. Once bent, you will obviously grab a pair of pliers and straighten them. That's the down-side with this product. Those tangs will break off shortly afterwards. They are not heat strengthened, just honed down metal that is quite small in diameter. So, try you best to not bend them. Tip: insert the tool into the cartridge as designed then hit it gently with a hammer before twisting. Better tip: spray diameter of cartridge lightly with WD40 before hand. Best tip: if urinal becomes a fish bowl filled with urine and you think you can use the tool through the liquid level think again. Please use caution! That extra urine will act as a vacuum and makes it very hard to pop it up. You might be able to twist it, but pulling it up will simply soak you with lemonade (if you know what I mean). DRAIN IT FIRST, no matter how disgusting that is. One more tip: use a uratic salt remover down the drain after flushing it with a lot of water. Uratic salt build up will either plug up or destroy the pipes. Good luck.....
Originally posted on PlumbersStock May/2017
