Toro O-T-5-HP Precision Spray 5-H Nozzle, Male-Threaded

SKU: 507515

$4.85/ea

In Stock and Ready to Ship


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4.85/ea

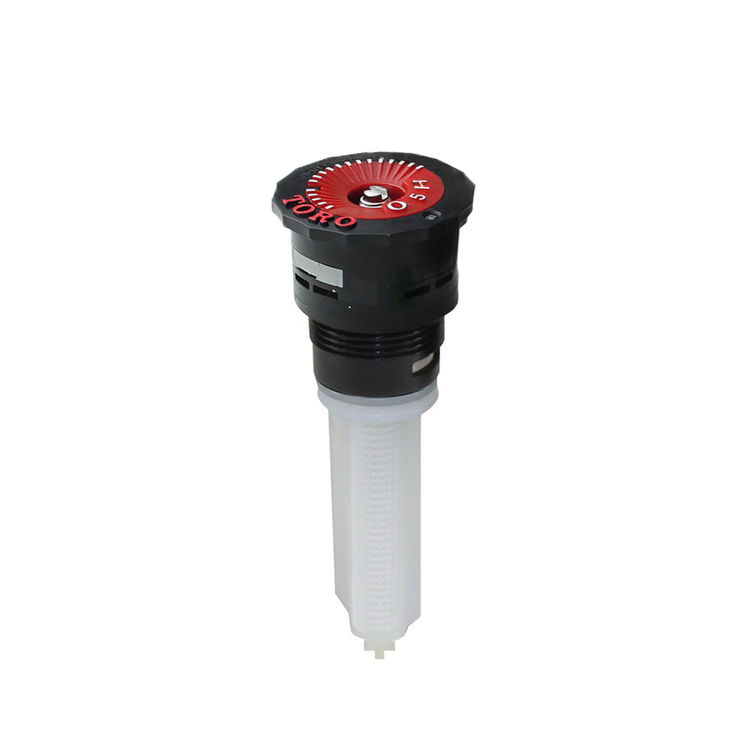

About the Toro O-T-5-HP

This Toro O-T-5-HP Precision Spray Nozzle is male-threaded (indicated by letter T for "Toro" after O in model number) and comes with a screen to filter out debris. With its patented H2O Chip Technology, this nozzle can save up to 35% of typical water consumption over conventional spray nozzles. Even though it has no moving parts, this nozzle generates high-frequency, oscillating streams of uniformly-sized water droplets for consistent distribution at a 1-inch-per-hour precipitation rate (indicated by letter O at front of model number). The Toro O-T-5-HP is color-coded with a red nozzle top, signifying a spray radius of 5 feet and a spray trajectory of 5 degrees (Flow Rate: 0.13 gpm at 50 psi). The spray arc of the Toro O-T-5-HP nozzle is a "Half" circle (180 degrees) indicated by letter H in model number. Also, to minimize misting and wasted water, this Precision Spray Nozzle has a factory-installed, pressure-compensating disc (indicated by letter P at end of model number) to regulate the flow and maintain steady water pressure. This nozzle is backed by a two-year warranty. The Toro Company has been helping its customers maintain golf courses, sports fields, residential yards, and agricultural land since 1914. Toro thrives on innovation, adapting new technologies into their products to provide the perfect blend of high-performance, precision, and reliability. Trust Toro to help you achieve beautiful results while saving time, water, and energy.

Product Details

Style: Half Circle
Connection Type: Male Thread
Product: Nozzle
Manufacturer: Toro Irrigation
Mpn # O-T-5-HP
Weight 0.05 lbs.

Product Features

  • Differentiating Attributes of Toro O-T-5-HP: Letter O in model number specifies 1-inch-per-hour precipitation rate; Thread: male-threaded (indicated by letter T for "Toro" after O in model number); Radius: 5 feet; Nozzle Trajectory: 5 degrees; Flow Rate: 0.13 gpm at 50 psi; Arc: "Half" circle (180 degrees) indicated by letter H in model number; Pressure-compensating (indicated by letter P at end of model number)
  • Toro Precision Series Spray Nozzles are the most efficient, best-in-class spray nozzles available
  • Patented H2O Chip Technology in each nozzle generates larger, uniform droplet size and distributes water efficiently to reach desired radii
  • High-frequency oscillating stream delivers precipitation rate of 1 inch per hour - an industry first - while using 35% less water than standard MPR nozzle
  • No moving or sonic-welded parts
  • Integrated pressure compensation minimizes need for a regulating head at a fraction of the cost
  • Ideal for large-scale installations and retrofits with nozzles available in wide variety of arcs and radii, as well as Toro (male) and female-threaded bodies
  • Five radii available between 5 and 15 feet (color-coded nozzle tops)
  • Expanded selection of arc choices for precise distribution: Nine different arcs between 60 and 360 degrees; three specialty arcs for right-corner strips, left-corner strips, and side strips
  • Better edge-definition with no variation at end of water arc
  • Minimizes run-off and unintentional watering of hardscape features
  • Increased wind resistance
  • No wasteful misting or fogging
  • Operating pressure range: 20-75 psi
  • Recommended operating pressure: non-Pressure Compensating - 30 psi, Pressure Compensating - 50 psi
  • Flow Rate: 0.04 - 2.4 gpm
  • Warranty: Two years
