Viega 49306 Manabloc 30-Port 3/8" and 1/2" Combo Poly Press
$ 0.00
Viega 49306 Viega 49306 Manabloc 30-Port 3/8

Printer friendly page

Viega 49306 Manabloc 30-Port 3/8" and 1/2" Combo Poly Press

SKU: 518357

$242.41/ea
Save 45% · Retail: $442.29

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$242.41/ea

About the Viega 49306

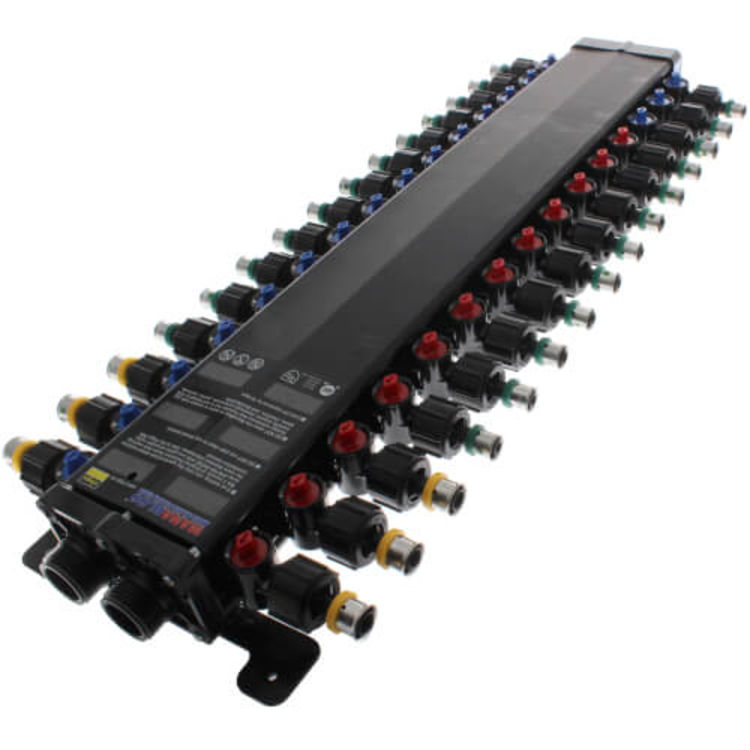

The Viega 49306 is a 30-port combo ManaBloc with both 3/8" & 1/2" PEX ports and is designed for hot and cold water applications (10 hot and 12 cold - 3/8" PEX, 2 hot and 6 cold - 1/2" PEX).  It features modular ManaBloc sections for added versatility and is made of polysulfone plastic which is highly resistant to hot temperatures and chemicals that are commonly found in potable water systems. Corrosion-resistant metals provide added durability and lengthen the ManaBloc's service life without the need for constant part replacement.

This Viega ManaBloc uses 1/2" and 3/8" PEX press connections for quick and easy installation and is also designed to be used with the ViegaPEX Ultra and Viega FostaPEX tubing and connection for optimal performance.  It is lead-free for potable water use and is designed with a max pressure rating of 100 PSI at 180 degrees Fahrenheit. The port or branch has a pressure drop of 3.4 PSI at 4.0 GPM for the 1/2" PEX and 2 PSI at 2.5 GPM for the 3/8". This ManaBloc is designed for both home and commercial applications and is ideal for zoning multiple outlets for added safety and efficiency.

Veiga is a company that designs and manufactures plumbing- and material-related products that are driven by quality, integrated with both proven and innovative technology. PlumbersStock offers a wide range of products from Viega from fittings to manifolds. If you want quality and longevity, you will not go wrong with Viega.


Product Details

Manufacturer: Viega
Product: Manifold
Connection Type: Pex
Color: Black
Material: Plastic
Connection Size: 3/8"
  1/2"
Mpn # 49306
Weight 10.15 lbs.

Product Features

  • Total Ports (Branches): 18 (For 3/8" PEX - (10) Hot & (12) Cold
  • For 1/2" PEX - (2) Hot & (6) Cold)
  • Port Connections: 3/8" & 1/2" PEX Press
  • Hot/Cold Water Inlet Connections: 1" (manabloc adapters required)
  • Branch spacing: 1-11/16" OC (On Center)
  • Dimensions (L x H x W): 28-7/8" x 3" x 8"
  • Max Pressure Rating: 100 psi @ 180F
  • Port (Branch) Pressure Drop: 3.4 psi @ 4.0 GPM (for 1/2" PEX)
  • 2 psi @ 2.5 GPM (for 3/8" PEX)
  • Port K-Factor: 0.21 (for 1/2" PEX), 0.35 (for 3/8" PEX)
  • Lead-free, approved for potable water use
  • Meets NSF/ANSI 61 & 372, ASTM F876/F877, CSA B137.5
  • UPC-IAPMO Certified
  • Made in the USA.
