Viega MXBD30-3 30-Port 1/2 Inch Manabloc

SKU: 410

We are Sorry we no longer carry this item.

Check below for similar items!

About the Viega 36303

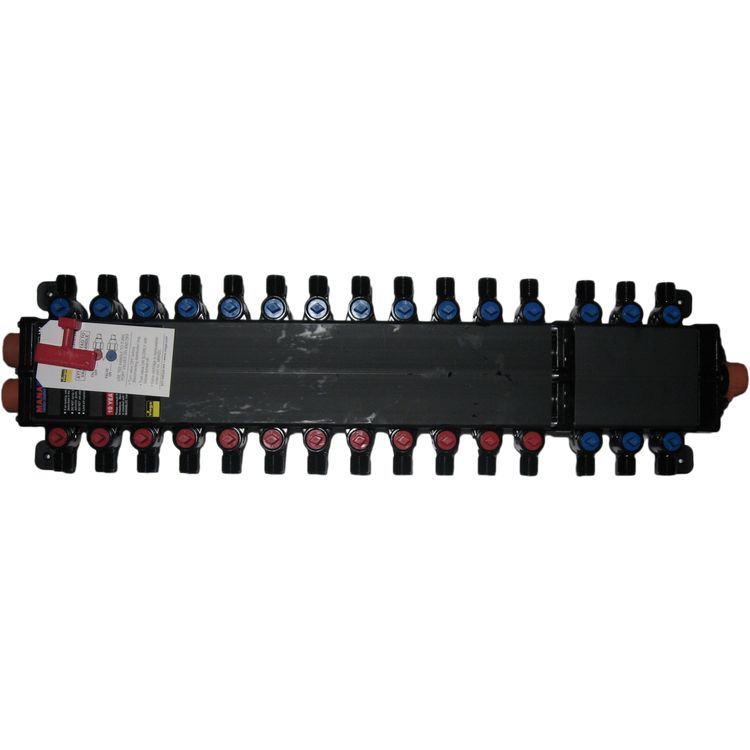

The Viega MXBD30-3 30-Port 1/2 Inch Manabloc uses dedicated outlets and parallel water distribution lines to supply water to individual plumbing fixtures and appliances. A built-in shut-off valve is equipped on every port to provide the ability to shut the water off or turn the water supply on, much like a circuit breaker in electrical applications. The Viega MXBD30-3 30 PORT 1/2 Inch Manabloc has a division of both hot and cold water inlets as well as ports designated for hot and cold supplies. This Manabloc has a variety of fitting options available for the inlet ports which include PEX Compression, Bronze PEX Press, Brass PEX Crimp and PolyAlloy PEX Crimp fittings (Each sold Separately). This Manabloc does include the distribution connections when purchased. The modular sections of this Viega MXBD30-3 30 PORT 1/2 Inch Manabloc are formed from polysulfone (PLS) plastic. This material is extremely resistant to hot water, chlorine and other chemicals classically found in potable water systems. These Manablocs feature color coded hot and cold ports and are factory pre-assembled. All these Manabloc Systems includes port compression connections, drill templates, instruction guide, faceplate and port labels.

Product Details

Product: Manifold
Manufacturer: Viega
Use: Water
Mpn # 36303
Shipping Dimensions 32.0" x 9.8" x 5.0"
Weight 13.10 lbs.

Product Features

  • Individual shut-off valves
  • Quiet operation
  • ManaBloc supply end cap 53601 must be purchased separately

Reviews

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Hi there! We appreciate your interest in the Viega MXBD30-3 Port Manabloc. There are different fitting options available for the inlet ports of this manabloc which are the PEX Compression, Bronze PEX Press, Brass PEX Crimp and PolyAlloy PEX Crimp fittings. Each fitting needs to be ordered separately. For more details, you may want to check this Catalog. If you want to order the product, just click "Add to Cart" and put your postal code and you're ready to go. If we can be of any further help, you may call our customer support team at 435-868-4020 between 8:00 AM and 7:00 PM MT or e-mail them @ support@plumbersstock.com. Have a wonderful day!

Anonymous responded:

I am replacing a copper pipes systems, what are all the products do I need to get this up and running in my house?

*PLUMBERSSTOCK EXPERT* responded:

Hi, Thank you for asking about the Viega MXBD30-3 manabloc. The size of the supply lines is 1/2". Unfortunately, we no longer carry this item, however, you may look into this Viega MXBD24-XR 50243 24 Port 1/2" Manabloc Poly Crimp. It has 24 ports with 1/2" supply lines. Should you have further questions, please let us know of you may contact one of our knowledgeable customer support specialists at 435-868-4020 between 8:00 AM and 7:00 PM MST or via E-mail @ support@plumbersstock.com. They will be happy to assist you further. Thank you for visiting PlumbersStock. Have a good one.

*PLUMBERSSTOCK EXPERT* responded:

Hello! We value your interest in our Viega MXBD30-3 Manabloc. You will get a color-coded hot and cold 30-Port Manabloc (12 hot, 18 cold) with 1/2" distribution ports. It comes with port compression connections, drill templates, an instruction guides, and faceplate and port labels. The mounting straps and supply connections will need to be ordered separately. To start placing an order, just click Add To Cart and fill in the required fields. Should you have further questions, please let us know. We are eager to make online shopping as fast and easy for you! Thank you for choosing plumbersstock.com!
