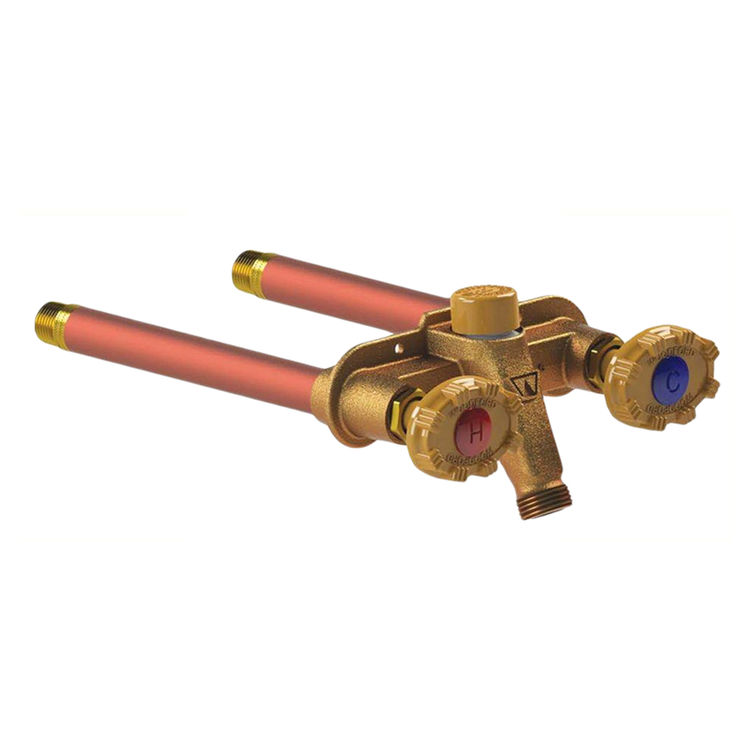

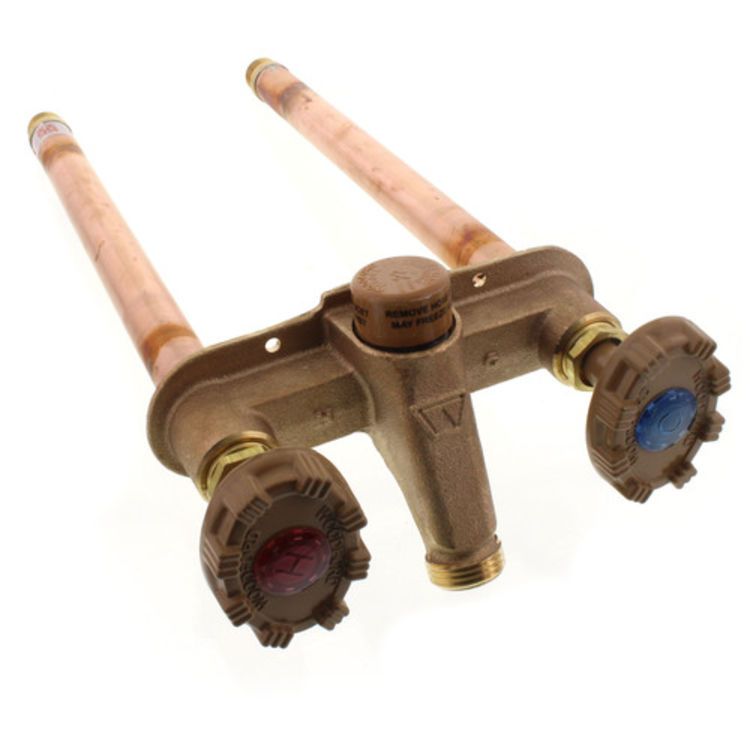

Woodford 22C3-10-MH (Model 22) Freezeless Hot and Cold Wall Faucet

SKU: 638953

Save 34% · Retail: $142.40

  Available to Ship in 1-2 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Woodford 22C3-10-MH

Looking for a faucet with pressure relief valves and anti-siphon protection? Woodford showcases this Model 22 freezeless hot and cold wall faucet, the 22C3-10-MH. This Woodford 22C3-10-MH is designed for convenient year-round outside hot and cold irrigation and cleaning purposes regardless of the temperature. It is rated for a maximum pressure of 125 psi and a maximum temperature of 120 degrees F. The number "10" in the product number means that this wall faucet can be installed in a wall that is 10 inches thick while the "MH" signifies that this wall faucet comes with an oval metal (aluminum) handle. It is constructed of rough brass which provides excellent corrosion resistance. This Model 22 wall faucet features separate hot and cold inlet tubes that allow manual operation of temperature control with cross contamination protection. It is mounted horizontally. This hot and cold wall faucet prevents faucet burst and eliminates pipe rupture from freezing conditions even when a hose is accidentally left on, thanks to its pressure relief valves. With its integral backflow protection, this freezeless wall faucet is protected against back pressure up to 125 psi without the need of an add-on vacuum breaker. It is ASSE 1019-type C-certified as this freezeless wall faucet contains an integral and permanent mechanism to prevent against backflow due to back pressure or back siphonage. It is CSA-approved and cUPC-listed which means that it is thoroughly evaluated for safe and sanitary plumbing systems. This anti-siphon wall faucet has a 3/4-inch female sweat connection. Please see the specification sheet for more details. Woodford is one of the leading manufacturers of residential, commercial, and agricultural hydrants, wall hydrants, wall faucets, and more!

Product Details

Manufacturer: Woodford
Mount Type: Wall Mount
Product: Faucet
Style: Anti-Siphon
Type: Frost Free
Use: Residential
Mpn # 22C3-10-MH
Weight 3.80 lbs.

Product Features

  • A Model 22 freezeless hot and cold wall faucet
  • Made of rough brass
  • Is horizontally mounted
  • For end wall installation
  • Inlet: C3
  • Solder: lead-free
  • Wall thickness: 10 inches
  • Seat washer: regular "O" size
  • Maximum pressure: 125 psi
  • Maximum temperature: 120 degrees F
  • Oval handle: aluminum, die-cast, powder-coated
  • Has an EPDM packing
  • With anti-siphon protection
  • Has a stainless steal seat
  • Contains an integral back flow protection
  • With pressure relief valves
  • Has a 3/4-inch female sweat connection
  • Includes a 3/4-inch male hose thread nozzle
  • With separate hot and cold inlet tubes
  • Is ASSE 1019-Type C-certified, CSA-approved, and cUPC-listed
