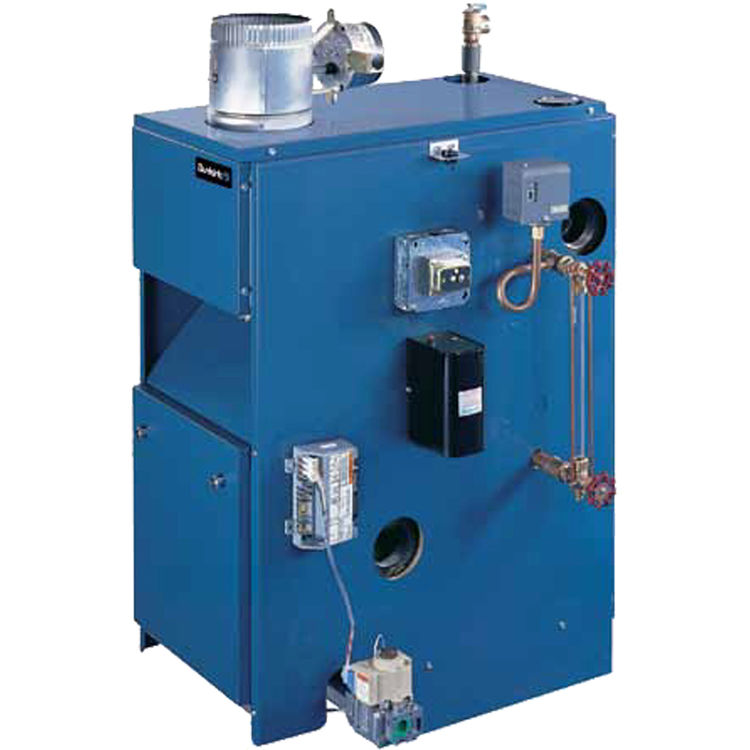

Save on the Dunkirk PSB-8D Steam Boiler from the PSB Series (262.5 Input MBH, 214 Heating Capacity MBH, 161 AHRI Net MBH, 358001000) at PlumbersStock. This cast iron hot water boiler operates with natural gas fuel and an AFUE rating of 82%. It requires a 7" flue.
Alcove design is three sided space with no wall in front of boiler. ANSI standard is 18 inches from appliance to leading edge of side walls. This model includes no pump.
** Due to this product's considerable weight and size our current shipping costs could fluctuate. Please call 435-868-4020 for today's shipping rates.
| Manufacturer: | Dunkirk |
| Product: | Boiler |
| Housing Material: | Metal |
| Vent Type: | Chimney Vent |
| Vent Size: | 7" |
| Mount Type: | Floor Mount |
| Installation Location: | Indoor |
| Color: | Blue |
| Shape: | Vertical Rectangle |
| BTU Rate: | 262,500 BTU |
| Modus Operandi: | Natural Gas |
| Water Connection: | 2-1/2" NPT |
| Fuel Inlet Size: | 3/4" NPT |
| Electrical Voltage: | 120 Volt |
| Motor Type: | Single Phase |
| Amperage: | 15 amps |
| Capacity: | 8.6 Gallons |
| Width: | 27-1/2" |
| Other Info: | ASME Certified |
| AHRI certified | |
| Mpn # | 358001000 |
| Weight | 659.00 lbs. |
