Hydro-Rain HRM-100-03-BD HRM 100 3-Port Manifold

SKU: 180121

Save 26% · Retail: $8.76

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

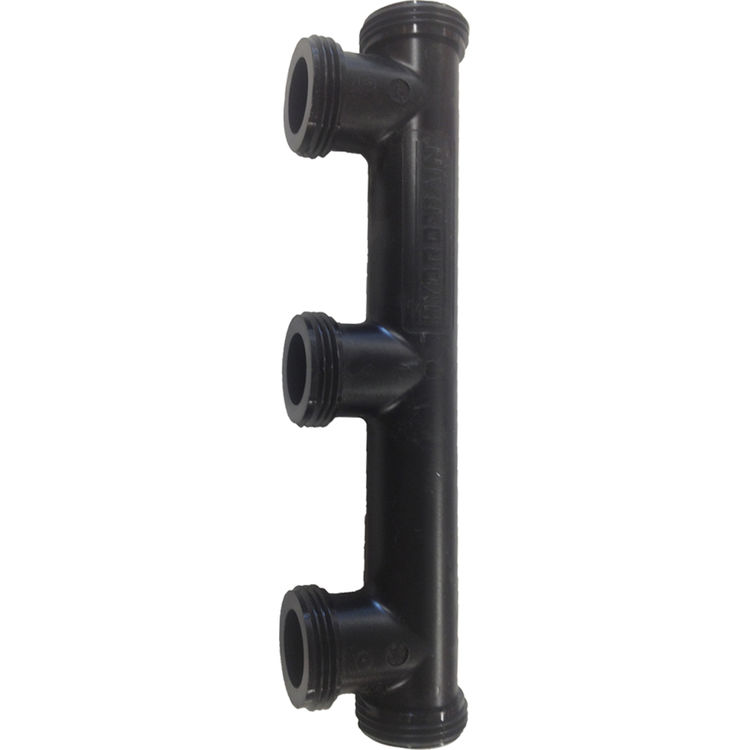

About the Hydro-Rain HRM-100-03-BD

The Hydro-Rain HRM-100-03-BD is a Three Port Valve Manifold. The manifold system, the HRM Series, provides a nontoxic gluless installation and convenient servicibility. The HRM10003PBD tripple port manifold ie equiped with "wrenchfree" features, promoting a noleak installation. The Compact design and expandability of the HRM10003 PBD maximizes the valve box area while providing quick and simple modification when you need it. For use with Blu-Lock irrigation fittings

Product Details

Product: Parts and Accessories
Use: Water
Mpn # HRM-100-03-BD
Weight 0.20 lbs.

Product Features

  • No Cutting, Priming, Gluing or Waiting- Standardized and ready to go when you are.
  • High Deflection Temperature-Withstands pressure of 350 PSI and ambient temperature of 120F.
  • Patent Pending Swivel-Eliminates the need for primer and glue, and serves as the tool for threading the adapter into the valve.
  • True 1" I.D. and Ultra Smooth Core-Maximizes flow and minimizes friction loss.
  • Three-Year Warranty-Hydro-Rain ensures full quality performance for the warranty period or well replace it.
  • Max Working Pressure: 200~250 PSI (at 73 F)
  • Burst Pressure: Exceeds 350 PSI (at 73 F)
  • Dimensions: HRM-100-3P-BD: Length 10" x Width 2.5" HRM-100-2P-BD: Length 6.25" x Width 2.5" HRM-100-2P-BD: Length 3" x Width 2.5"
  • No Guesswork and No Rework-Takes the estimation out of the installation process and eliminates wasteful, costly mistakes.
  • Fewer Callback and Faster Service-Built to high industry specifications so you can be sure youre getting watertight seals the first time and every time-which means fewer callbacks and faster service-its never been easier.
  • No Primers or Glues-All connections are buttress thread swivel and Mipt, eliminating the need for any toxic chemicals.
  • Blu-Lock Compatibility-Factory-installed Blu-Lock adapters allow you to go straight out of valves to headers and laterals with environmentally-friendly Blu-Lock pipe.
  • Drip Zone Compatibility-The HRM 100 can handle up to four HRZ 100 drip control zones in a standard rectangular valve box, minimizing material waste.
  • O-Ring Shape and Volume-Allows more torque and compression to satisfy a wider variety of angles. Over 4X the size of the leading competitor.
  • Sealing Surface-Has twice the surface area at critical connections between fittings and manifold.
  • Buttress Threads-Provide exceptionally high axial thrust so you can crank them hard and they have extremely low friction properties so that you can hand tighten the fittings fast and effortlessly.
