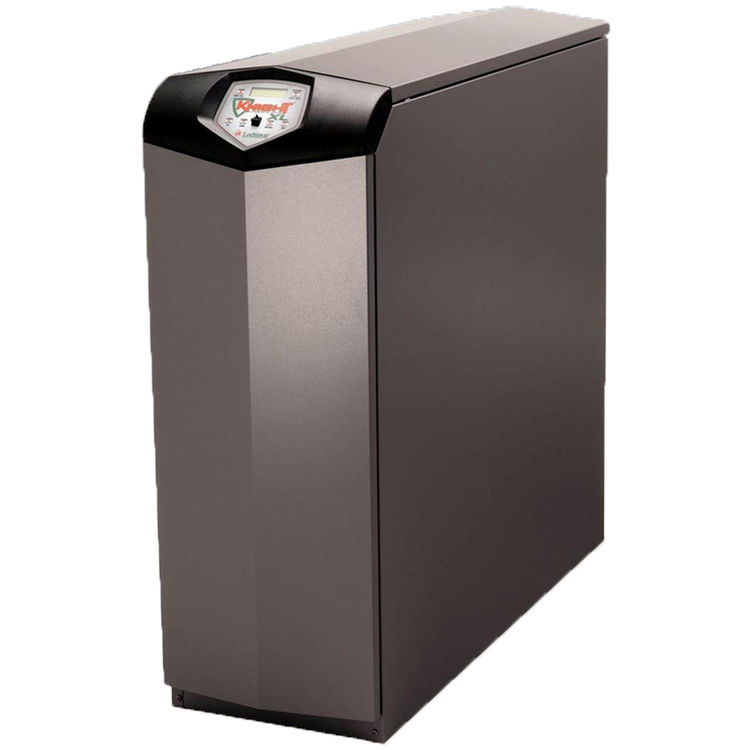

Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 2 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 3 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 4 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 5 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 6 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701
View 7 of Lochinvar KBL701 Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701

Product Options

Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701

SKU: 189522
$ 15,213.15 / ea
Cargo Shipping Only
Save 27% · Retail: $20,818.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$15,213.15/ea

About the Lochinvar Knight XL High Efficiency Liquid Propane Boiler, 701000 BTU, 1in Gas Connection, 2in Water Connection, 4in Air inlet, 6in Vent, SMART SYSTEM Digital Operating Control - KBL701

Lochinvar Knight XL KBL701 701000 BTU High Efficiency Liquid Propane Boiler. The Lochinvar Knight XL Series Boilers are the smartest choice for a condensing performance boilers. Engineered with Lochinvars exclusive SMART SYSTEM Control (LCD Display Screen, and the ability to control up to three temperature set-points) and a vast variety of other innovative features. Knight Boilers promise to deliver ease of installation and maintenance. With up to 94.6% efficiency, low emissions and a fully modulating burner, these are the best Green Choice for todays conscious market. All boilers are equipped for direct-vent installation with air intake and exhaust runs up to 100 feet. This range of choices is ideal for residential or light-duty applications such as small hotels, schools and office buildings. Included with Lochinvar's Knight XL Boiler Series, is a 399,000-800,000 BTU/hr, and a fully modulating burner with 5:1 turndown. You can find optional equipment kits for your Knight Boilers also.


** Due to this product's considerable weight and size our current shipping costs could fluctuate. Please call 435-868-4020 for today's shipping rates.

Manufacturer: Lochinvar
Product: Boiler
Color: Stainless
Modus Operandi: Liquid Propane
BTU Rate: 700,000 BTU
Electrical Voltage: 120VAC, 60Hz
Vent Size: 6"
Connection Size: 1"
Connection Type: NPT
Other Info: ASME Certified
Pressure Rating: 160 PSI
Digital: Yes
Mpn # KBL701
Shipping Dimensions 41.0" x 16.0" x 43.0"
Weight 395.00 lbs.
  • Modulating Burner With 5:1 Turndown
  • Low Gas Pressure Operation
  • Zero Clearances to Combustibles
  • Easy Access Terminal Strip
  • Natural to LP Conversion Kit
  • Inlet & Outlet Temperature Sensors
  • Low Water Flow Indication
  • Domestic Hot Water Prioritization
  • Adjustable Leveling Legs
  • Sidewall Vent Terminals
  • On/Off Switch
  • ASME Stainless Steel Heat Exchanger
  • Contact On Any Failure
  • SMART SYSTEM Digital Operating Control
  • 2 line, 16 Character LCD Display
  • Password Security
  • Built In Cascading Sequencer
  • Building Management System Control
  • 0-10 VDC Input Control
  • Outdoor Reset
  • Night Setback
  • Three Pump Control (System, Boiler & DHW)
  • Direct-Vent Sealed Combustion
  • Pump Relay With Freeze Protection
  • Product Service Indicator
  • Field Connection Versatility
  • Optional PC Or Pocket PC Software
  • Floor Standing
  • Gallon Capacity: 5.0
  • Heating Surface (Sq.Ft.): 57.8
  • Water Connections: 2"
  • Drain: 3/4"
  • Max Working Pressure: 160 psi
  • 50 psi Relief Valve
  • Number of Relief Valves: 1
  • Relief Valve Size: 3/4"
  • Relief Valve Pressure Rating: 50 psi
  • Gas Inlet Connection: 1"
  • BTU/Hr Input: 700,000
  • BTU/Hr Output (High Fire): 660,100
  • BTU/Hr Output (Low Fire): 132,020
  • Voltage/Heater: 120 V
  • Voltage/Control: 24 V
  • Total Amps: 2.7 A
  • Adjustable High Limit With Manual Reset
  • Number of Electrical Connections: 1
  • Dimensions (H x W x D): 42-1/2" x 15-1/2" x 40-1/4"
  • Vent Size: 6"
  • Vent Category: IV
  • Vent Material: PVC
  • Shipping Weight: 395 lb
  • Flow Switch
  • Temperature & Pressure Gauge
  • Direct-Spark Ignition
  • Low NOx Operation
