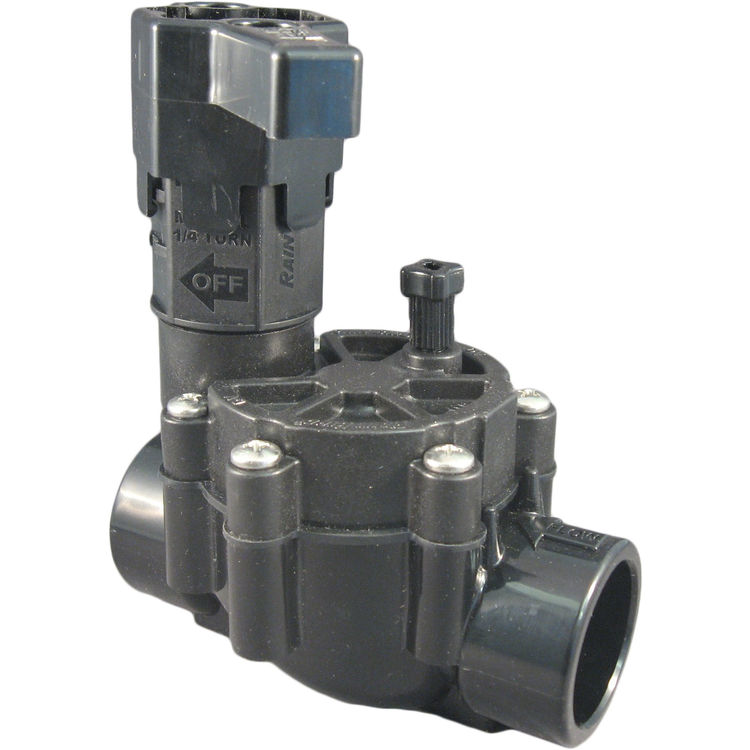

Rainbird 100DVFSS 24 VAC 1" Electric Control Valve Slip

SKU: 41580

$14.54/ea
Save 43% · Retail: $25.50

In Stock and Ready to Ship!
More Buying Options


Ships From Price Qty
Nevada Warehouse
Ships in 3-4 Days
$14.54/ea 4
Order From Manufacturer
Available to Ship in 4-5 weeks
$14.54/ea

About the Rainbird 100DVFSS

Rainbird 100DVFSS 1 Electric Control Valve 24Vac. The Rain Bird 100DVFSS is a 1" 24V Electric (Slip x Slip) Control Valve. It features a double-filtered pilot-flow design for long-lasting reliability, a balanced-pressure diaphragm, external-bleed to manually flush the system of dirt and debris during installation and system start-up. It also features an internal bleed for spray-free manual operation, energy-efficient low-power encapsulated solenoid with captured plunger and 90-mesh solenoid filter.

Product Details

Manufacturer: Rainbird
Sprinkler Valve Features: Globe Valve/ Angle Valve
Mpn # 100DVFSS
Shipping Dimensions 4.5" x 3.3" x 6.3"
Weight 0.99 lbs.

Product Features

  • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
  • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
  • 3/4" (20/27) and 1" (26/34) standard in-line configuration.
  • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
  • Ambient air temperature: Up to 125 Degrees F (52 Degrees C)
  • Available as: 3/4" (20/27) and 1" (26/34) standard in-line configuration. 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations. 1" (26/34) Angle (A) configurations for flexible installations especially when submains are deep. 1" (26/34) Male-by-Male (MM) thread configuration for quick and easy manifolding. 1" (26/34) Male-by-Barb (MB) and 1" Male-by-1.25" Barb male thread inlet by barb outlet configuration for installation with poly pipe.
  • Balanced-pressure diaphragm for long life.
  • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
  • Double-filtered pilot-flow design for maximum reliability.
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter.
  • External bleed to manually flush system of dirt and debris during installation and system start-up.
  • 075-DV Flow: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation application, use RBY-075-200MX Filter installed upstream.
  • Height (Angle): 5 1/2" (14 cm)
  • Height: 4 1/2" (11,4 cm)
  • Internal bleed for spray-free manual operation.
  • Length (Angle): 3 3/4" (9,5 cm)
  • Length (MB): 5 3/4" (14,6 cm)
  • Length (MM): 5 3/8" (13,6 cm)
  • Length: 4 3/8" (11,1 cm)
  • Operates in low-flow and Xerigation applications when the RBY filter is installed upstream.
  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • Solenoid coil resistance: 38 Ohms
  • 1" (26/34) Angle (A) configurations for flexible installations especially when submains are deep.
  • Temperature: Up to 110 Degrees F (43 Degrees C)
  • Unique, easy-to-turn patented pressure assisted flow control mechanism (DVF models only).
  • Width: 3 1/3" (8,4 cm)
  • 1" (26/34) Male-by-Barb (MB) and 1" Male-by-1.25" Barb male thread inlet by barb outlet configuration for installation with poly pipe.
  • 1" (26/34) Male-by-Male (MM) thread configuration for quick and easy manifolding.
  • 1" (26/34) Slip-by-Slip (SS) configuration for low cost, solvent-weld installations.
  • 1.25" (3,2 cm) stainless steel phillips head screws.
  • 100-DV Flow): 0.2 to 40 GPM (0,05 to 9,08 m3/h; 0,01 to 2,52 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation application, use RBY-100-200MX Filter installed upstream.
  • 100-DVF Flow (non-union): 0.2 to 40 gpm (0,75 m3/h; 0,21 l/s); for flows below 3 gpm or any Xerigation application, use RBY-100-200MX Filter installed upstream.

Resources

Reviews

4.5 out of 5 rating is our rating for plumbersstock.com, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Hi, there! Thank you for your interest in our Rainbird 100DVFSS control valve slip. If used on swimming pool water, the chlorine will damage the diaphragm of the Rainbird 100DVFSS. It is recommended that this product can be used with irrigation water. Usually, the diaphragm, if it's only used for irrigation water, will last about 10 years, but if there is chlorine, it will only last for about 2 years or less. We hope this helps. Thank you and we hope to see you again here @ PlumbersStock.com!
