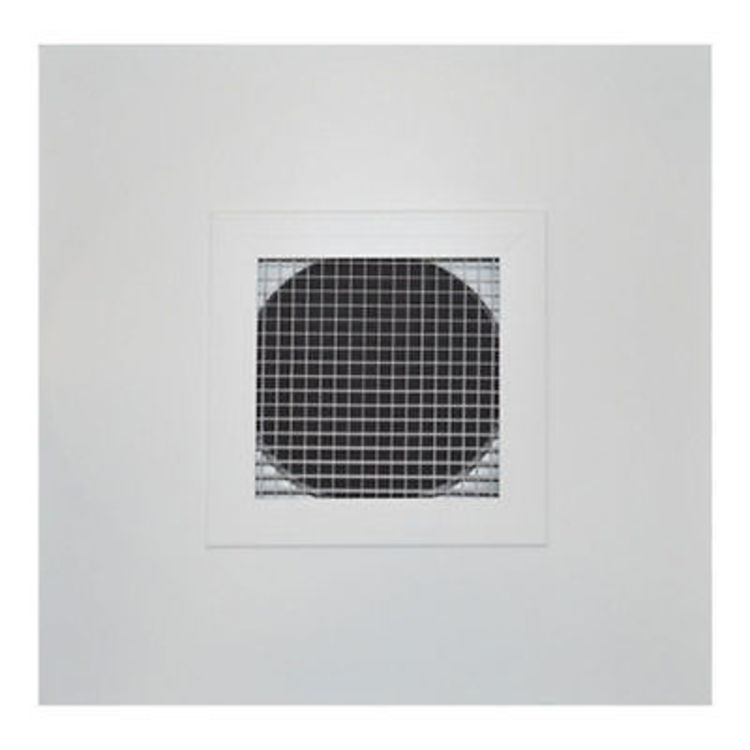

16" x 16" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 14" Collar, Opposed Blade Damper, White - Shoemaker 700-600-0-16X16-14

SKU: 136878
$ 279.00 / ea
 Free Shipping!
Save 25% · Retail: $373.78

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16" X 16" Aluminum Lattice Return Air Grille In T-bar Panel W/ 14" Collar, Opposed Blade Damper, White - Shoemaker 700-600-0-16X16-14

SKU: 136878
$279.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$279.00/ea

About the 16" x 16" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 14" Collar, Opposed Blade Damper, White - Shoemaker 700-600-0-16X16-14

Savings available on the 16" x 16" Aluminum Lattice Return Air Grille in T-Bar Panel with 14" Collar, Opposed Blade Damper in soft white (Shoemaker 700-600-0-16X16-14) via PlumbersStock.com. The 2-inch ADC compliant round collar with bead makes for ease of installation. The 1/2" x 1/2" x 1/2" lattice grille comes with an extruded frame fixed in a T-Bar panel. You can operate the opposed blade damper with the use of a screwdriver. The pre-coat and powder finish will resist rust for years. Shoemaker makes reliable HVAC products that will get the job done.

Manufacturer: Shoemaker
Shape: Square
Length: 16"
Width: 16"
Mount Type: Ceiling/Wall
Material: Aluminum
Style: Parts
Product: Air Grille and Registers
Color: Soft White
Mpn # 700-600-0-16X16-14
Weight 10.24 lbs.
  • Recessed screwdriver operated Opposed Blade Damper (700-600-0)
  • Standard color soft white and driftwood tan
  • 2 x 2 steel panel with seismic support holes (700)
  • ½ x ½ x ½ inch aluminum lattice return air grille in a extruded aluminum frame with signature line marks (600)
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Square Collar
  • 1/2 inch x 1/2 inch x 1 inch Lattice
  • 1 inch x 1 inch x 1 inch Lattice
  • TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
