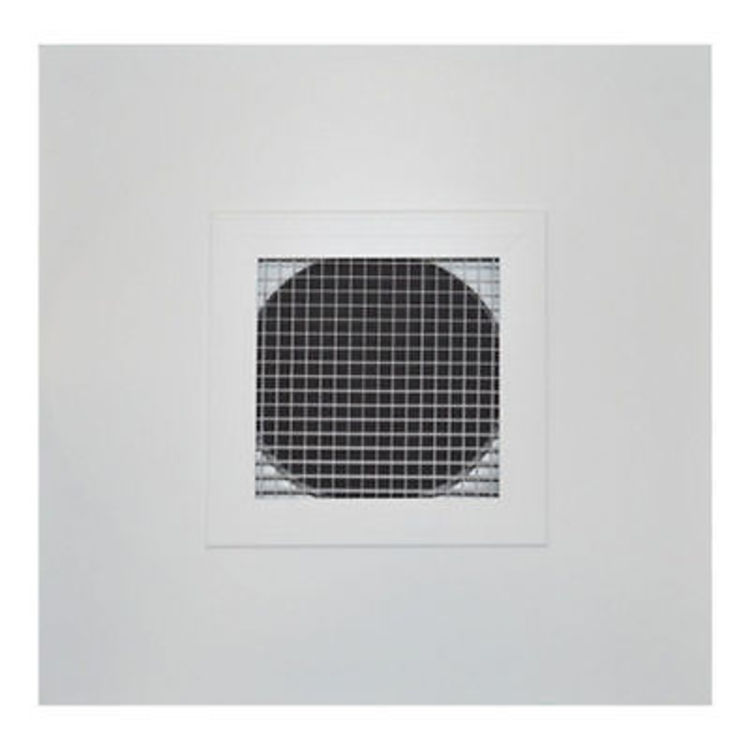

10" x 10" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 6" Collar, White - Shoemaker 700-600-10X10-6

SKU: 133117
Manufacturer Image
-27.8%
$ 146 .00 / ea
$ 202 .08 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
block Non Refundable
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Manufacturer stocks, ships quickly!
factory Orders from the Manufacturer

About the 10" x 10" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 6" Collar, White - Shoemaker 700-600-10X10-6

Get a deal on the 10" x 10" Aluminum Lattice Return Air Grille in T-Bar Panel with 6" Collar in soft white (Shoemaker 700-600-10X10-6) with the experts at PlumbersStock. The 2-inch ADC compliant round collar with bead makes for ease of installation. The 1/2" x 1/2" x 1/2" lattice grille comes with an extruded frame fixed in a T-Bar panel. There is no opposed blade damper with the 700-600 series, you have to check out the 700-600-O series. The pre-coat and powder finish will resist rust for years. Shoemaker makes heating and cooling products that are built to last.

Length: 10"
Width: 10"
Manufacturer: Shoemaker
Product: Air Grille and Registers
Color: Soft White
Mount Type: Ceiling/Wall
Material: Aluminum
Type: Return Air
Shape: Rectangle
Use: Ducting and Venting
Other Info: Easy To Install
Mpn # 700-600-10X10-6
Weight 4.00 lbs.
  • Standard color soft white and driftwood tan
  • 2 x 2 steel panel with seismic support holes (700)
  • ½ x ½ x ½ inch aluminum lattice return air grille in a extruded aluminum frame with signature line marks (600)
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Optional: Square Collar
  • Optional: ½ inch x ½ inch x 1 inch Lattice
  • Optional: 1 inch x 1 inch x 1 inch Lattice
  • Optional: TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional: NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (700-600-0)
