18" x 18" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 8" Collar, White - Shoemaker 700-600-18X18-8

SKU: 135931
Manufacturer Image
-38.3%
$ 285 .47 / ea
$ 462 .90 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
block Non Refundable
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Manufacturer stocks, ships quickly!
factory Orders from the Manufacturer

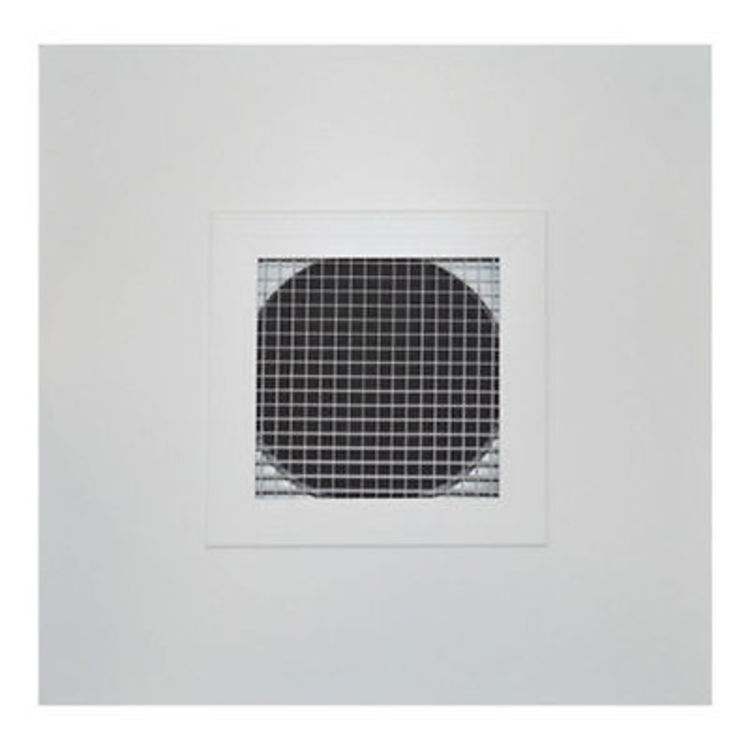

About the 18" x 18" Aluminum Lattice Return Air Grille in T-Bar Panel w/ 8" Collar, White - Shoemaker 700-600-18X18-8

Place an order now and get the 18" x 18" Aluminum Lattice Return Air Grille in T-Bar Panel with 8" Collar in soft white (Shoemaker 700-600-18X18-8) here at PlumbersStock.com. The 2-inch ADC compliant round collar with bead makes for ease of installation. The 1/2" x 1/2" x 1/2" lattice grille comes with an extruded frame fixed in a T-Bar panel. There is no opposed blade damper with the 700-600 series, you have to check out the 700-600-O series. The pre-coat and powder finish will resist rust for years. Shoemaker makes heating and cooling products that are built to last.

Length: 18"
Width: 18"
Manufacturer: Shoemaker
Product: Air Grille and Registers
Color: Soft White
Mount Type: Ceiling/Wall
Material: Aluminum
Type: Return Air
Shape: Square
Use: Ducting and Venting
Other Info: Easy To Install
Mpn # 700-600-18X18-8
Weight 12.96 lbs.
  • Standard color soft white and driftwood tan
  • 2 x 2 steel panel with seismic support holes (700)
  • ½ x ½ x ½ inch aluminum lattice return air grille in a extruded aluminum frame with signature line marks (600)
  • Grille available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Optional: Square Collar
  • Optional: ½ inch x ½ inch x 1 inch Lattice
  • Optional: 1 inch x 1 inch x 1 inch Lattice
  • Optional: TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional: NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time.
  • Call us, if desired, to order Recessed screwdriver operated Opposed Blade Damper (700-600-0)
