Shoemaker 903-0-20X6 20

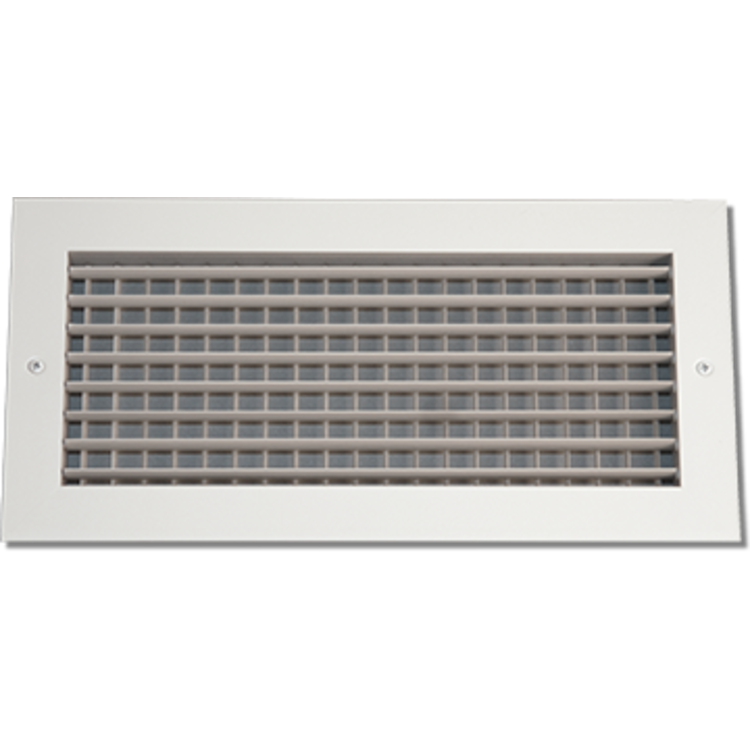

20" x 6" Double Deflection Adjustable Grille, Front Blades Parallel to Long Dimension, OB Damper, White - Shoemaker 903-0-20X6

SKU: 131659
$ 116.00 / ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

20" X 6" Double Deflection Adjustable Grille, Front Blades Parallel To Long Dimension, Ob Damper, White - Shoemaker 903-0-20X6

SKU: 131659
$116.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$116.00/ea

About the Shoemaker 903-0-20X6

Save now and get the 20" x 6" Double Deflection Adjustable Grille, Front Blades Parallel to Long Dimension, Opposed Blade Damper in white (Shoemaker 903-0-20X6) online at PlumbersStock. The 903-O series airfoil aluminum blades are adjustable and run parallel to the shortest dimension. It provides 4-way airflow on one plane. It runs quietly because of nylon bushings that prevent metal from rattling. The front blades are parallel to the longest dimension, and the back blades are parallel to the shortest dimension. This grille does not comes with an opposed blade damper. Shoemaker is known for engineering innovation and practical solutions.

The 903-0 series has an extruded aluminum surface mount frame with signature line marks. For a smooth appearance, it has countersunk mounting holes with Phillips posi-drive screws with colors that match the vent cover.

Manufacturer: Shoemaker
Color: White
Material: Aluminum
Style: Parts
Product: Air Grille and Registers
Mpn # 903-0-20X6
Weight 4.80 lbs.
  • Optional tamper-proof screws are available
  • Optional heavy duty construction (903-HD)
  • Optional insect screen (903-IS)
  • Optional square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead, available in square sizes only (903-NLC)
  • Optional fractional I.D and O.D sizes available
  • Optional finishes available: satin anodized, mill
  • Optional designer colors: almond, black velvet, bronze, Camaro silver, coffee tan, Navajo white, vanilla
  • 903-O recessed screwdriver operated opposed blade damper
  • Front blades are parallel to longest dimension
  • Back blades are parallel to shortest dimension
  • Allows 4-way air deflection on one plane
  • Aluminum .055 T6 surface mount diffuser
  • Fractional sizes, inner dimension and outside dimension available
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Standard colors: soft white, driftwood tan
