Shoemaker 932-0-24X20 24

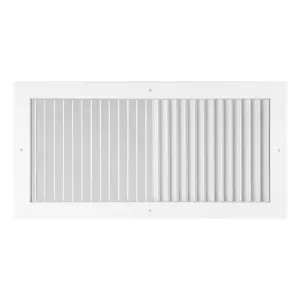

24" x 20" Single Deflection Adjustable Steel Blade Grille, Blades Parallel to Short Dimension, Opposed Blade Damper, White - Shoemaker 932-0-24X20

SKU: 134847
$ 189.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

24" X 20" Single Deflection Adjustable Steel Blade Grille, Blades Parallel To Short Dimension, Opposed Blade Damper, White - Shoemaker 932-0-24X20

SKU: 134847
$189.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$189.00/ea

About the 24" x 20" Single Deflection Adjustable Steel Blade Grille, Blades Parallel to Short Dimension, Opposed Blade Damper, White - Shoemaker 932-0-24X20

Be sure to take advantage of this deal on the 24" x 20" Single Deflection Adjustable Steel Blade Grille, Blades Parallel to Short Dimension with an Opposed Blade Damper in soft white (Shoemaker 932-0-24X20) at PlumbersStock.com. We are industry leaders in hard to find parts. The 932-O series offers single deflection surface mount grille with adjustable steel blades. The blades run parallel to the shortest dimension and offer 2-way airflow on one plane. Manually operate the opposed blade damper using a screwdriver (it's recessed). The nylon bushings reduce noise from metal rattling. Countersunk mounting holes provide a flush appearance. Shoemaker replacement parts can be hard to find, so contact us if you have any problems.

Product: Vents and Terminations
  Air Grille and Registers
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: White
Mpn # 932-0-24X20
Weight 19.20 lbs.
  • Optional tamper proof screws are available
  • Optional lever operated opposed blade damper (L-932-O)
  • Optional square to round ADC compliant 2” No Labor Collar with roll formed retention bead, available in square sizes only (932-NLC)
  • 932-O recessed screwdriver operated opposed blade damper
  • Rust-resistant precoat with durable powder finish
  • Available in even sizes up to 30” x 30”
  • Extruded aluminum frame
  • Adjustable blades are parallel to shortest dimension
  • Allows 2-way air deflection on one plane
  • Countersunk mounting holes for flush appearance with color matching Phillips posi-drive screws
  • Nylon bushings for easy adjustment and quiet setting of airfoil blades
  • Standard colors: soft white
