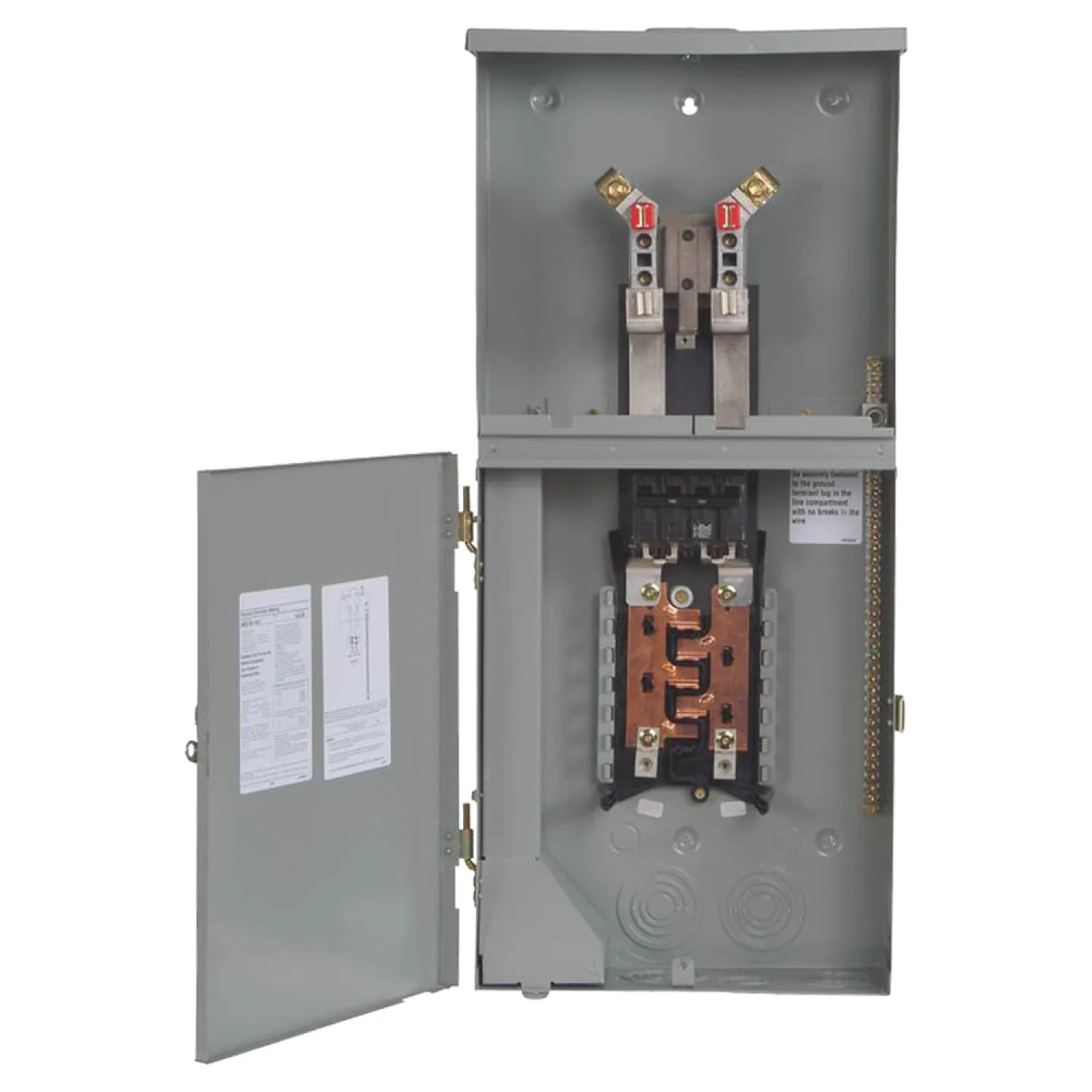

Siemens MC0816B1200RCT Speedfax MC0816B1200RCT Load Center, 120/240 VAC, 200 A, MBK200 Main Breaker

Speedfax MC0816B1200RCT Load Center, 120/240 VAC, 200 A, MBK200 Main Breaker

SKU: 591325

This product isn't currently available.

Check back later, as this product may still become available through our sources.

You may be able to find similar items listed below.

About the Siemens MC0816B1200RCT

Speedfax MC0816B1200RCT Load Center, 120/240 VAC, 200 A, MBK200 Main Breaker

Mpn # MC0816B1200RCT
Shipping Dimensions 14.6" x 14.6" x 33.0"
Weight 45.30 lbs.
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 200 A
  • Numberof Phases: 1
  • Interrupt Rating: 22 kA
  • Wiring Configuration: 3-Wire
  • Circuit Breaker Type: MBK200 Main Breaker
  • Number Of Spaces: 8
  • Numberof Circuits: 16
  • Cover Type: Ringless
  • Mounting Type: Surface
  • Enclosure Type: Nema 3R
  • Overall Height: 32 in
  • Buss Bar Material: Tin Plated Copper
  • Overall Width: 14 in
  • Overall Depth: 5 in
  • Standards: UL Listed
  • Special: 1 in Spacing
  • Usage: For Overhead and Underground Feed Applications
  • Overhead and underground feed applications
  • Underground feed accomplished by use of removable gutter trough
  • Load wires bottom or back exit only
  • Pad locking provisions on all devices
  • Side hinge doors removable by backing out only one screw
  • Suitable for use only as service entrance equipment
  • RX type hub provision on top end wall
