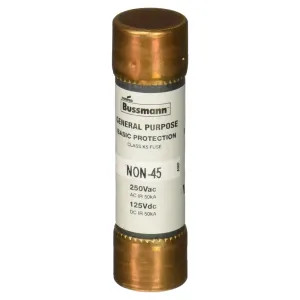

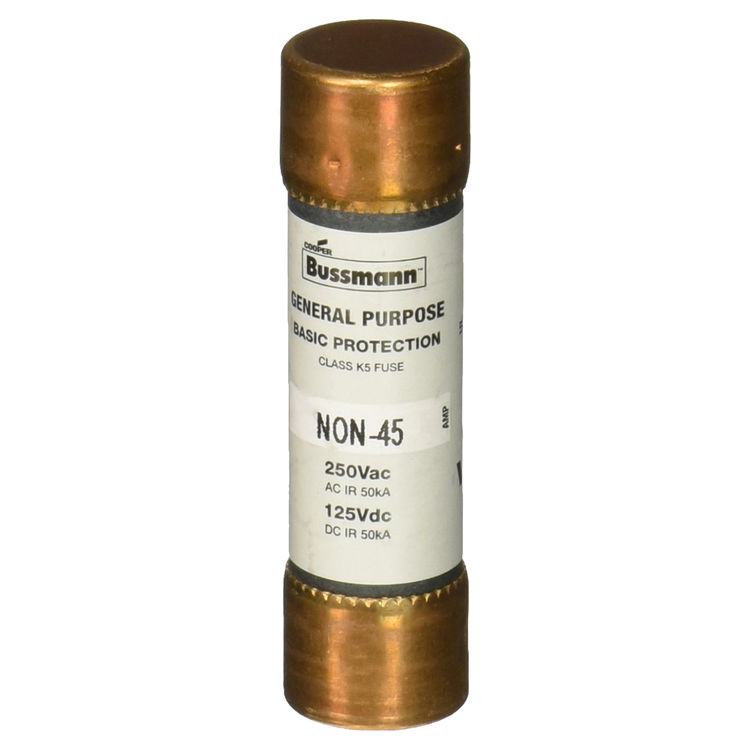

Bussmann NON-45 Bussmann NON-45 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 45 Amps

Bussmann NON-45 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 45 Amps

SKU: 585553
$ 3.55 / ea
Save 19% · Retail: $4.40

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"! In Stock and Ready to Ship
More Buying Options


Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$3.55/ea 90
Sikeston Missouri Warehouse
Ships in 5-7 Days
$3.55/ea 60
Order From Manufacturer
Available to Ship in 4-5 weeks
$3.55/ea ∞

About the Bussmann NON-45 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 45 Amps

The Bussmann NON-45 Fusetron Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 45 Amps is a quality fuse solution.

Amperage: 45 amps
Material: Melamine
Mpn # NON-45
Shipping Dimensions 4.2" x 3.3" x 1.8"
Weight 4.00 lbs.
  • Series: NON
  • Type: Cartridge, One Time, Non-Current Limiting, Low Voltage
  • Amperage Rating: 45 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 50 kA
  • Class: K5
  • Material: Melamine
  • Body Style: Non-Rejection Cylindrical
  • Diameter: 13/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Single
  • Length: 3 in
  • Usage: For General Purpose Circuits, Lighting Circuits, Main Panel Protection
  • Fuse Holder Code: K
  • Protect lighting, heating, and other circuits not subject to temporary surges and where available short circuit currents are relatively low
  • One-time fuses do not have a time delay feature and thus should not be specified in circuits where large transients or motor overloads occur
  • Use Buss FUSETRON or LOW-PEAK dual element, time delay fuses
  • For motor circuits, size at 300% - 400%
