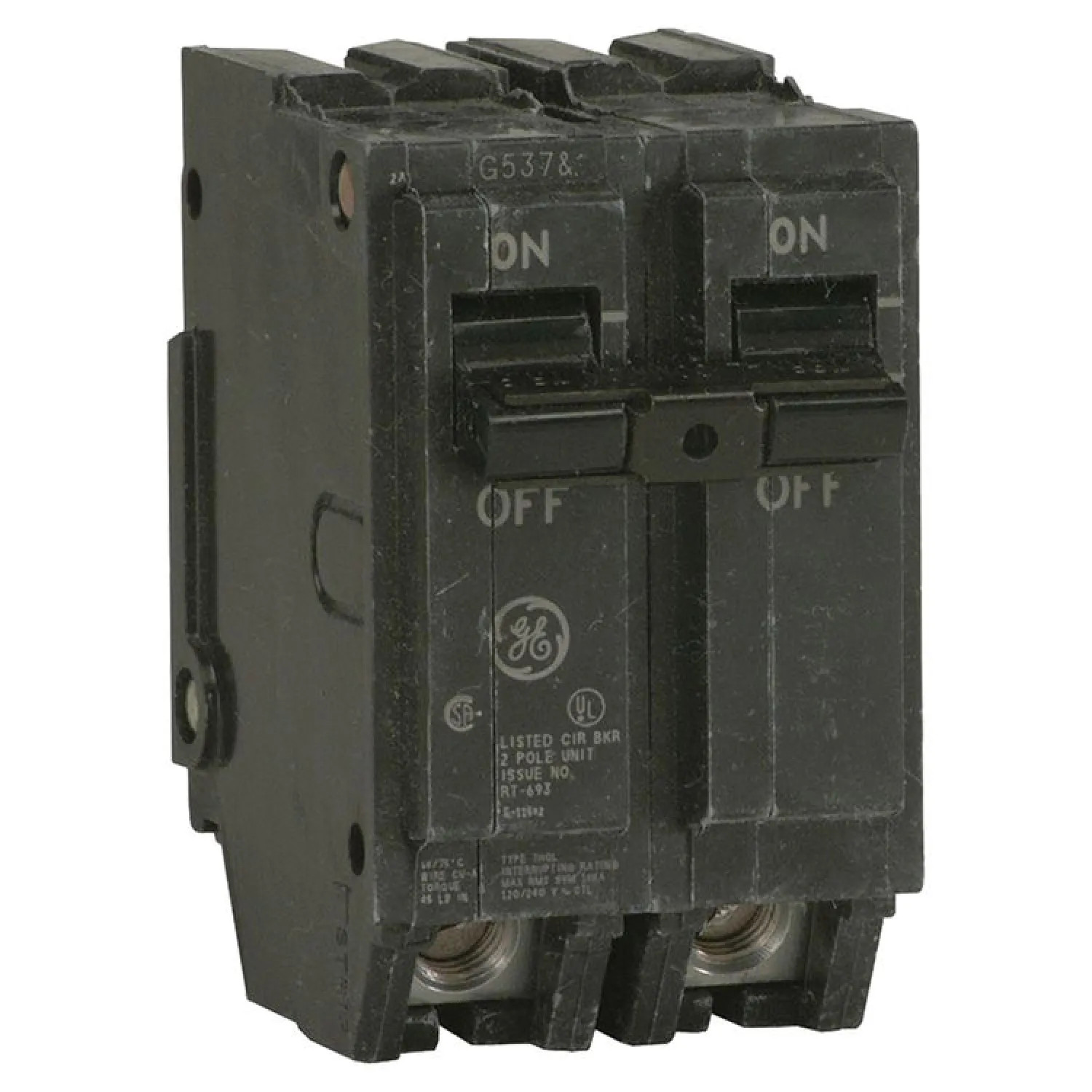

GE THQL21100 GE THQL21100 Type THQL Q-Line Standard Circuit Breaker, 120/240 VAC, 100 A, 2 P, 10 kA

GE THQL21100 Type THQL Q-Line Standard Circuit Breaker, 120/240 VAC, 100 A, 2 P, 10 kA

SKU: 588526

This product isn't currently available.

Check back later, as this product may still become available through our sources.

You may be able to find similar items listed below.

About the GE THQL21100

GE THQL21100 Type THQL Q-Line Standard Circuit Breaker, 120/240 VAC, 100 A, 2 P, 10 kA

Read More
Voltage: 120
Amperage: 100 amps
Mpn # THQL21100
Shipping Dimensions 12.0" x 4.0" x 3.7"
Weight 0.70 lbs.
Shipping Dimensional Weight 1.01 lbs.
  • Type: Type THQL, Q-Line, Standard
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 100 A
  • Phase: 1
  • Frame: THQ
  • Trip Type: Fixed
  • Trip Range: 1000 A
  • Interrupt Rating: 10 kA
  • Numberof Poles: 2
  • Terminal Type: Lug
  • Mounting Type: Plug In
  • Temperature Rating: 60 - 75 deg C
  • Overall Depth: 2.38 in
  • Material: Thermoset
  • Standards: ANSI Specified, CSA Certified, UL Listed
  • Special: 1 in Spacing, Panelboard Mount
  • Usage: For Power Mark Gold Load Centers and AQ Lighting Panels
  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position
