Product Details
Voltage:
120
Amperage:
15 amps
Mpn #
THQL1115
Shipping Dimensions
11.9" x
4.1" x
3.7"
Weight
0.30 lbs.
Shipping Dimensional Weight
1.04 lbs.

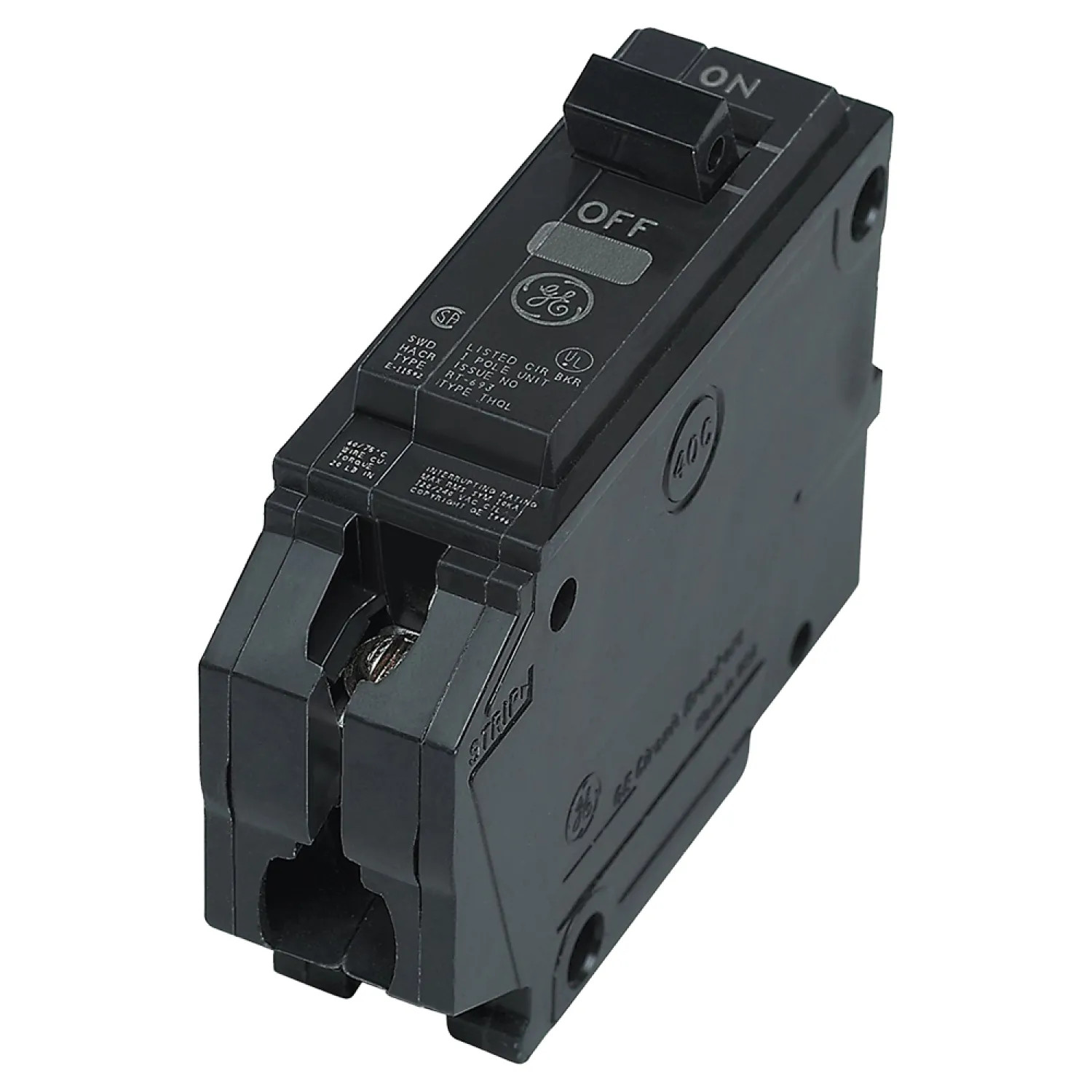

About the GE THQL1115
About the GE THQL1115 Type THQL Q-Line Standard Circuit Breaker, 120/240 VAC, 15 A, 1 P, 10 kA
GE THQL1115 Type THQL Q-Line Standard Circuit Breaker, 120/240 VAC, 15 A, 1 P, 10 kA
Product Features
Type: Type THQL, Q-Line, Standard
Voltage Rating: 120/240 VAC
Amperage Rating: 15 A
Phase: 1
Frame: THQ
Trip Type: Fixed
Trip Range: 150 A
Interrupt Rating: 10 kA
Numberof Poles: 1
Terminal Type: Screw Clamp
Mounting Type: Plug In
Temperature Rating: 60 - 75 deg C
Overall Depth: 2.38 in
Material: Thermoset
Standards: ANSI Specified, CSA Certified, UL Listed
Special: 1 in Spacing, Panelboard Mount
Usage: For Power Mark Gold Load Centers and AQ Lighting Panels
Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
Calibration screw is cemented to prevent shifting
Breaker case is made of heat-resistant thermoset for stability and structural integrity
Trips to the center position
