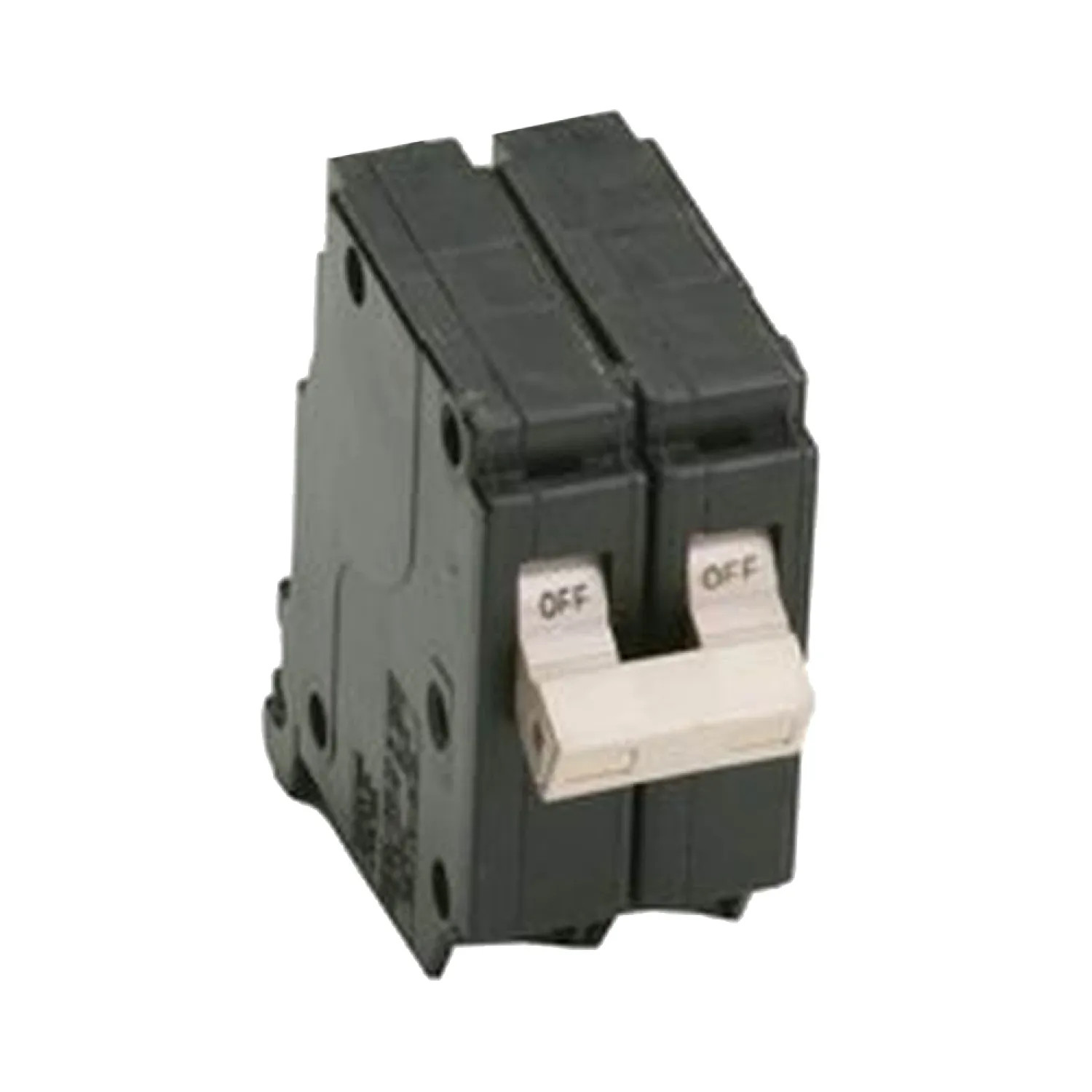

Cutler-Hammer CH260CS Cutler Hammer CH260CS Miniature Standard Type CH Circuit Breaker, 120/240 VAC, 60 A, 2 P, 10 kA

Cutler Hammer CH260CS Miniature Standard Type CH Circuit Breaker, 120/240 VAC, 60 A, 2 P, 10 kA

SKU: 586962
$ 25.13 / ea
Save 16% · Retail: $29.88

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Sikeston Missouri Warehouse
Ships in 5-7 Days
$26.85/ea 16
Order From Manufacturer
Available to Ship in 4-5 weeks
$25.13/ea

About the Cutler Hammer CH260CS Miniature Standard Type CH Circuit Breaker, 120/240 VAC, 60 A, 2 P, 10 kA

Cutler Hammer CH260CS Miniature Standard Type CH Circuit Breaker, 120/240 VAC, 60 A, 2 P, 10 kA

Amperage: 60 amps
Voltage: 120
Mpn # CH260CS
Shipping Dimensions 7.3" x 4.5" x 6.5"
Weight 1.80 lbs.
  • Type: Miniature, Standard, Type CH
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 60 A
  • Phase: 1
  • Trip Type: Common, Thermal Magnetic, Fixed
  • Interrupt Rating: 10 kA
  • Numberof Poles: 2
  • Actuator: Sandlewood Handle, On/Off
  • Wire Size: 3/0 AWG
  • Mounting Type: Plug On
  • Temperature Rating: 60 - 75 deg C
  • Overall Length: 3 in
  • Overall Width: 3/4 in
  • Overall Depth: 3-1/2 in
  • Standards: UL 489, CSA Certified, NEMA, Federal W-C 375 b/GEN
  • Special: 2 Space
  • Usage: For Load Centers and Residential
  • Installation flexibility
  • Unique sandalwood handles are marked with ONOFF indication and ampere rating of the breaker
  • The primary function of a circuit breaker is to protect the wire from overheating (referred to as an overload) and fault currents
  • Circuit breakers replaced fuses because they can be reset
  • HACR rated
  • Solid and stranded wire can be used together
