Product Details
Amperage:
70 amp
Voltage:
120
Mpn #
QO24L70RBCP
Shipping Dimensions
11.7" x
5.8" x
4.6"
Weight
4.60 lbs.

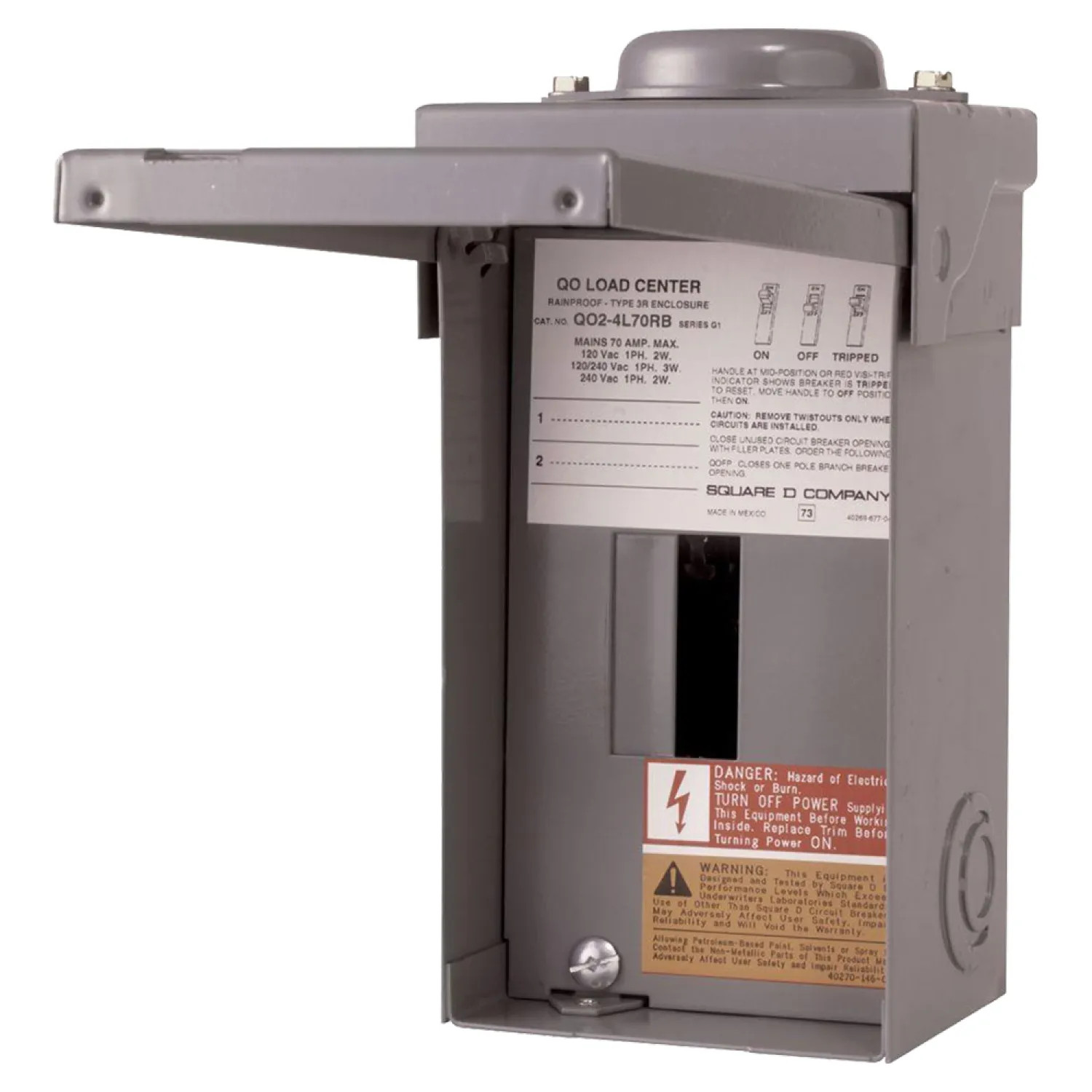

About the Square D QO24L70RBCP
About the Square D QO24L70RB Load Center, 120/240 VAC, 70 A, QO Main lug
Square D QO24L70RB Load Center, 120/240 VAC, 70 A, QO Main lug
Product Features
Voltage Rating: 120/240 VAC
Amperage Rating: 70 A
Numberof Phases: 1
Interrupt Rating: 10 kA
Standards: Federal W-P-115c, UL Listed
Wiring Configuration: 3-Wire
Usage: For Residential, Commercial and Industrial Requirements
Circuit Breaker Type: QO Main lug
Numberof Circuits: 4
Breaker Mounting: Plug-In
Cable Size: 12 - 3 AWG Al/14 - 4 AWG CU
Feed Type: Top
Enclosure Type: NEMA 3R Outdoor
Cover Type: Surface
Indoor and outdoor versions
Separate flush or surface mount covers
Exclusive shielded copper bus electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
