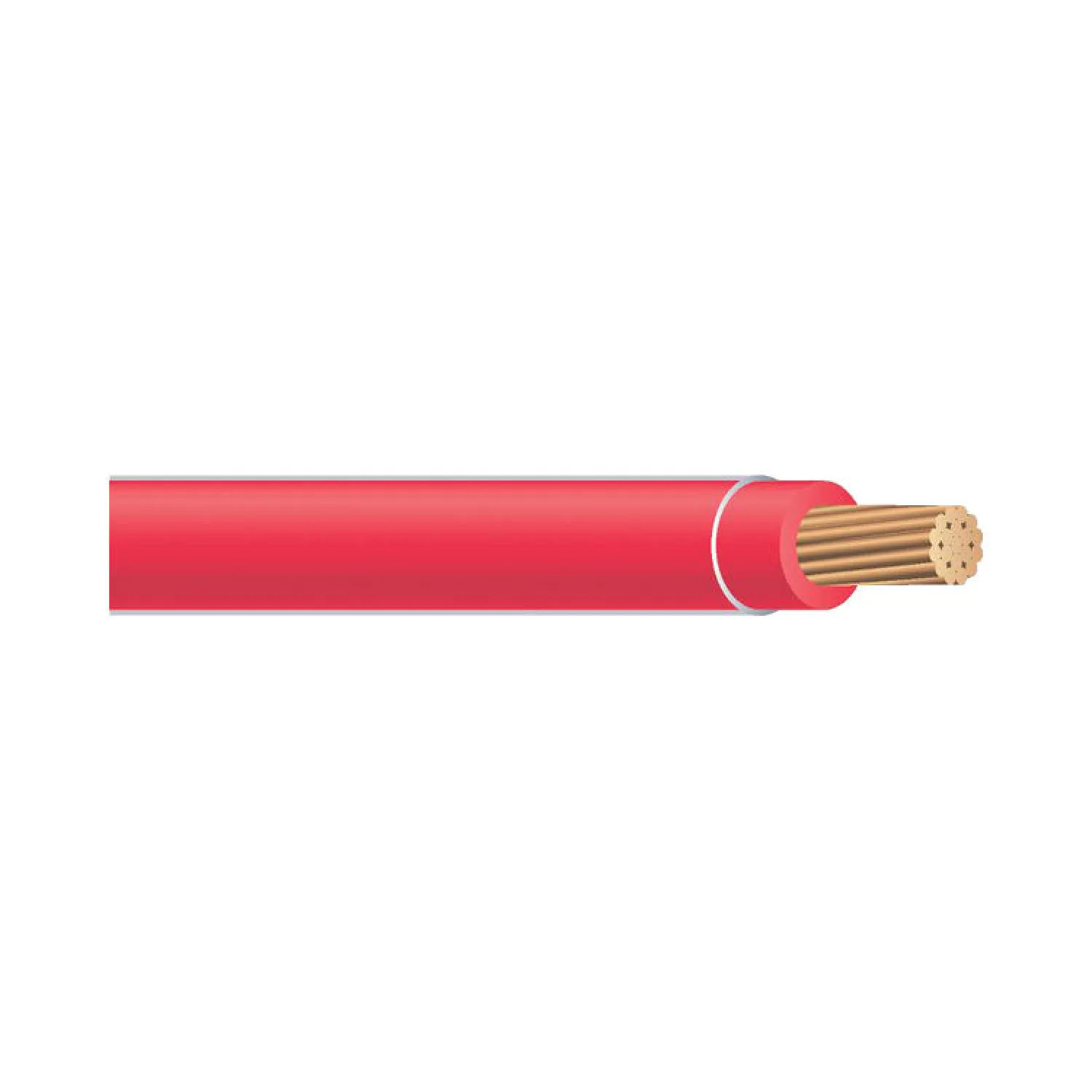

Southwire 22957551 THHN Building Wire, 14 AWG, 50 ft Spool, PVC

Name: Southwire 22957551 THHN Building Wire, 14 AWG, 50 ft Spool, PVC
Brand: Southwire
SKU: 591474
Price: 16.58 USD
Availability: InStock

SKU: 591474

-6.1%

$ 16 .58 / ea

$ 17 .66 / ea

Pay with Affirm on orders over $50. See if you qualify

Qty

remove

add

inventory_2 12 in Stock

add_shopping_cart Add To Cart

local_shipping Ships in 5-7 Days

warehouse Ships from Austin Texas Warehouse

add More Buying Options from $16.58

Manufacturer

$ 16 .58 / ea

local_shipping Available to Ship in 4-5 weeks

factory Orders from the Manufacturer

inventory_2 Unlimited Availability for Orders

remove

add

add_shopping_cart Add To Cart

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Mpn #	22957551
Shipping Dimensions	3.5" x 3.5" x 7.5"
Weight	0.90 lbs.

About the Southwire 22957551

About the Southwire 22957551 THHN Building Wire, 14 AWG, 50 ft Spool, PVC

Southwire 22957551 THHN Building Wire, 14 AWG, 50 ft Spool, PVC

Product Features

Type: THHN
Conductor Size: 14 AWG
Numberof Conductors: 1
Conductor Material: Annealed Copper
Length: 50 ft Spool
Strands: 19
Outside Diameter: 0.109 in
Amperage Rating: 15 A
Voltage Rating: 600 V
Insulation Type: PVC
Jacket Type: Nylon
Jacket Color: Red?
Temperature Rating: 194 deg F
Resistance: Gasoline, High Heat, Moisture and Oil
Standards: UL 83, 1063 Listed, CSA Certified, Fed Spec A-A59544, NEC, RoHS Compliant, GreenSpec
Usage: For Branch, Feeder and Service Power Distribution in Commercial, Industrial, Institutional and Multi-Residential Buildings
Made with annealed (soft) copper, compressed
Insulation is high heat and moisture resistant polyvinyl chloride (PVC)
Jacket is abrasion, moisture, gasoline and oil resistant nylon
Can be used in wet or dry locations
15 mil insulation thickness
4 mil jacket thickness
It is also used as a conductor in NM-B, UF-B, SER, SEU and MC
