Please make sure you understand the item and the dimensions before ordering.
By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns
| Manufacturer: | Dunkirk |
| Product: | Boiler |
| Color: | Blue |
| Electrical Voltage: | 120VAC, 60Hz |
| Capacity: | 1.75 Gallons |
| Connection Size: | 1/2" |
| Connection Type: | NPT |
| Modus Operandi: | Propane Gas |
| Height: | 29" |
| Width: | 11" |
| Depth: | 23-1/4" |
| Other Info: | Bell and Gossett Pump Included |
| ASME Certified | |
| AHRI certified | |
| BTU Rate: | 42,500 BTU |
| Material: | Cast iron |
| Mount Type: | Floor Mount |
| Water Connection: | 1-1/4" NPT |
| Amperage: | 15 amps |
| Mpn # | XEB204213130203 |
| Weight | 258.00 lbs. |

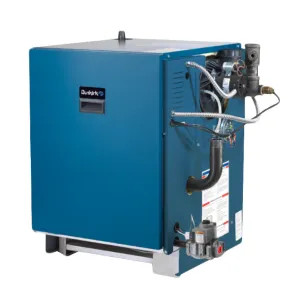

Save on the Dunkirk XEB-2 Chimney/Sidewall-Vented Boiler from the XEB Series II (42.5 Input MBH, 36 Heating Capacity MBH, 31 AHRI Net MBH, XEB204213130203) at PlumbersStock. This cast iron hot water boiler operates with liquid propane fuel and an AFUE rating of 84.4%. It requires a 4" flue or a 3-inch sidewall.
Alcove design is three sided space with no wall in front of boiler. ANSI standard is 18 inches from appliance to leading edge of side walls. Return water supply is 1-1/4-inch NPT and the gas inline is 1/2-inch NPT. It operates on 120 volts AC, 60 hertz, 1 phase at less than 12 amps. This model includes a Bell and Gossett Pump.
** Due to this product's considerable weight and size our current shipping costs could fluctuate. Please call 435-868-4020 for today's shipping rates.
