Elkay DRKAD371745LC Lustertone Classic 37-1/4" x 17" x 4-1/2" Double Bowl Drop-In Classroom ADA Sink Kit, Left Slotted, 4 Holes, 18-Gauge Stainless

SKU: 238483
$1,602.54/ea
 Free Shipping!
Save 50% · Retail: $3,234.00

  Available to Ship in 1-2 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$1,602.54/ea

About the Elkay DRKAD371745LC

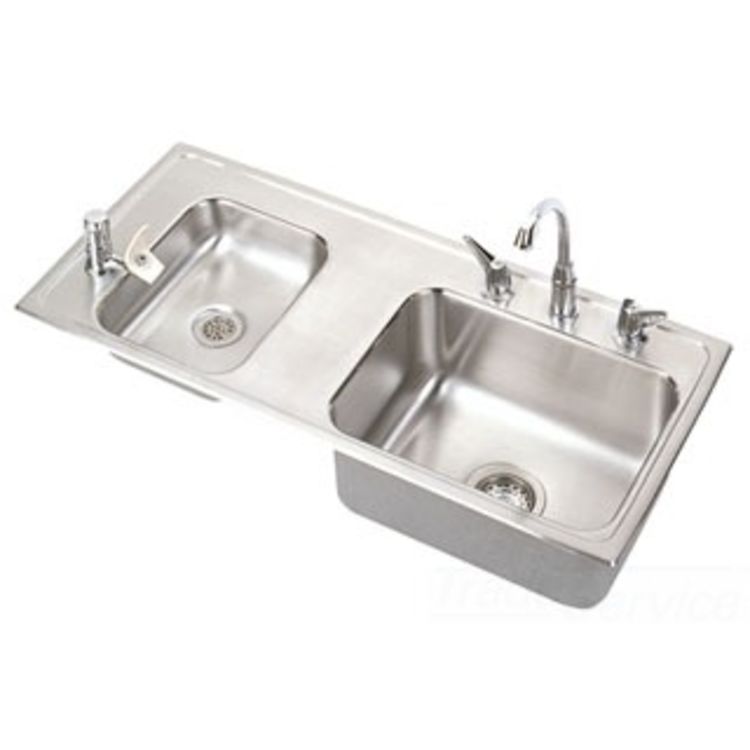

Save on this stainless steel Elkay DRKAD371745LC is a Lustertone Classic 37-1/4" x 17" x 4-1/2" Double Bowl Drop-in Classroom Sink Kit (4 Holes, ADA). This nickel-bearing stainless-steel sink is designed for top mount installation. The sink is furnished with a faucet, a bubbler, and 2 drains. The Elkay DRKAD371745LC is from the Lustertone Collection, designed for efficiency and functionality.

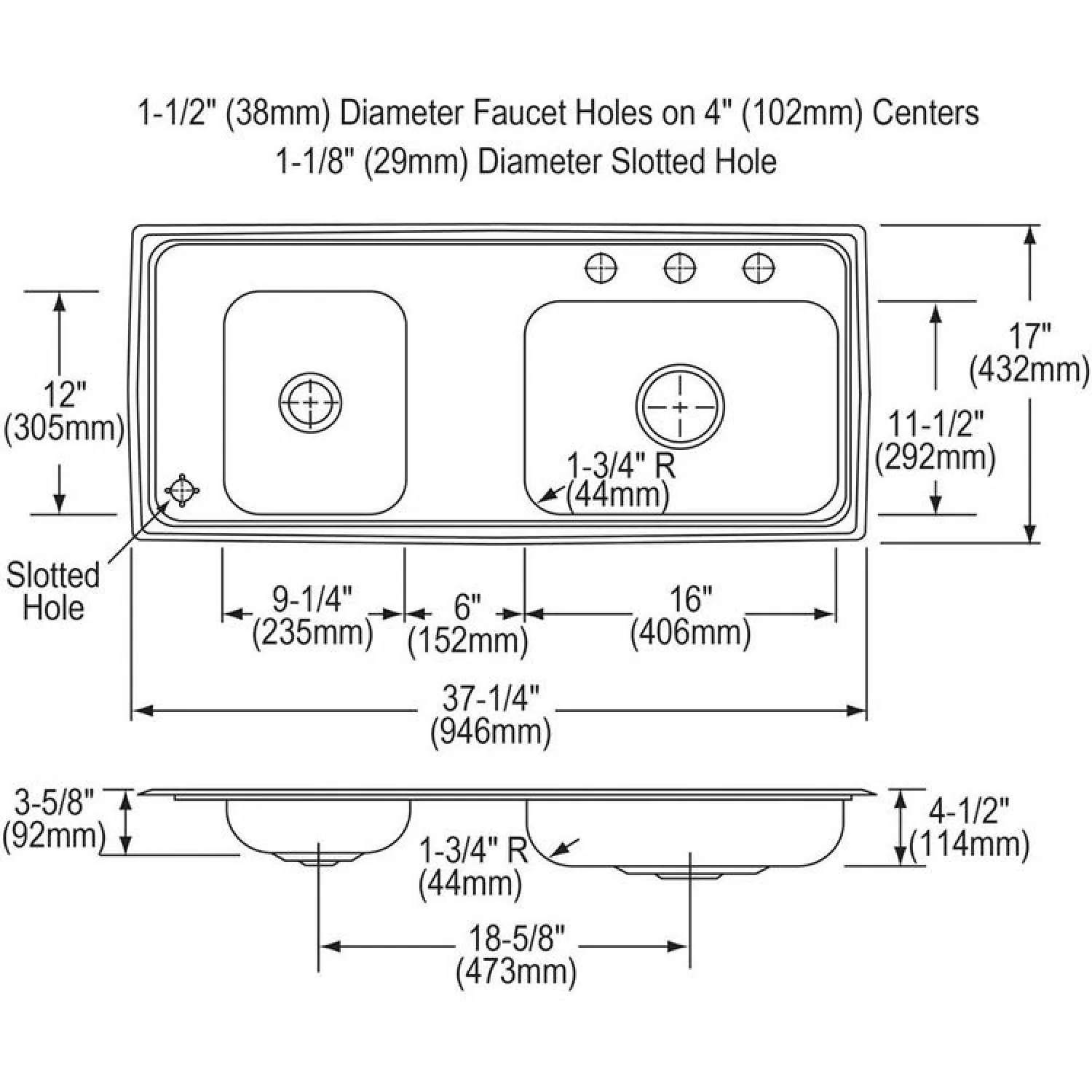

Overall dimensions are 37-1/4" in length and 17" in width. The left bowl is 9-1/4” long, 12” wide and 3-5/8” deep while the right bowl is 16" long, 11-1/2" wide and 5" deep. This sink has 4 faucet holes. The large bowl has a 3-1/2" drain opening while the fountain bowl has a 2" drain opening. The drain openings are located at the center of the bowls (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a lustrous highlighted satin finish.

 The bottoms of the bowls are fully sprayed for sound deadening and to prevent condensation. The Elkay DRKAD371745LC complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Number of Holes: 4 Hole
Material Gauge: 18 Gauge
Style: Large/ Small Bowl
Color: Stainless Steel
Mpn # DRKAD371745LC
Weight 27.00 lbs.

Product Features

  • Lustertone sink and fountain bowl combination.
  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Top mount.
  • Suffix L (left) and R (right) denotes location of the fountain bowl.
  • This sink package comes furnished with a faucet LKD2439C, the patented No Lead Flexi-Guard Bubbler LK1141A with Drains LK35 and LK8.
  • Requires a minimum of 42 cabinet size
  • Bowl Depth: the large bowl is 4-3/8 deep and the small bowl is 3-5/8 deep.
  • Exposed surfaces are hand blended to a Lustrous Highlighted Satin finish.
  • Fully sprayed to dampen sound and prevent condensation.
  • Sink complies with ASME A112.19.3/ CSA B45.4
  • This sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code , International Plumbing Code , and National Plumbing Code of Canada.
  • Both the faucet and the bubbler are classified by Underwriters Laboratories Inc. to NSF/ANSI61 for residential use.
  • This product, as constructed is subject to interpretation of A.D.A. requirements. The unobstructed knee space required to satisfy A.D.A. standards may not be desirable.
