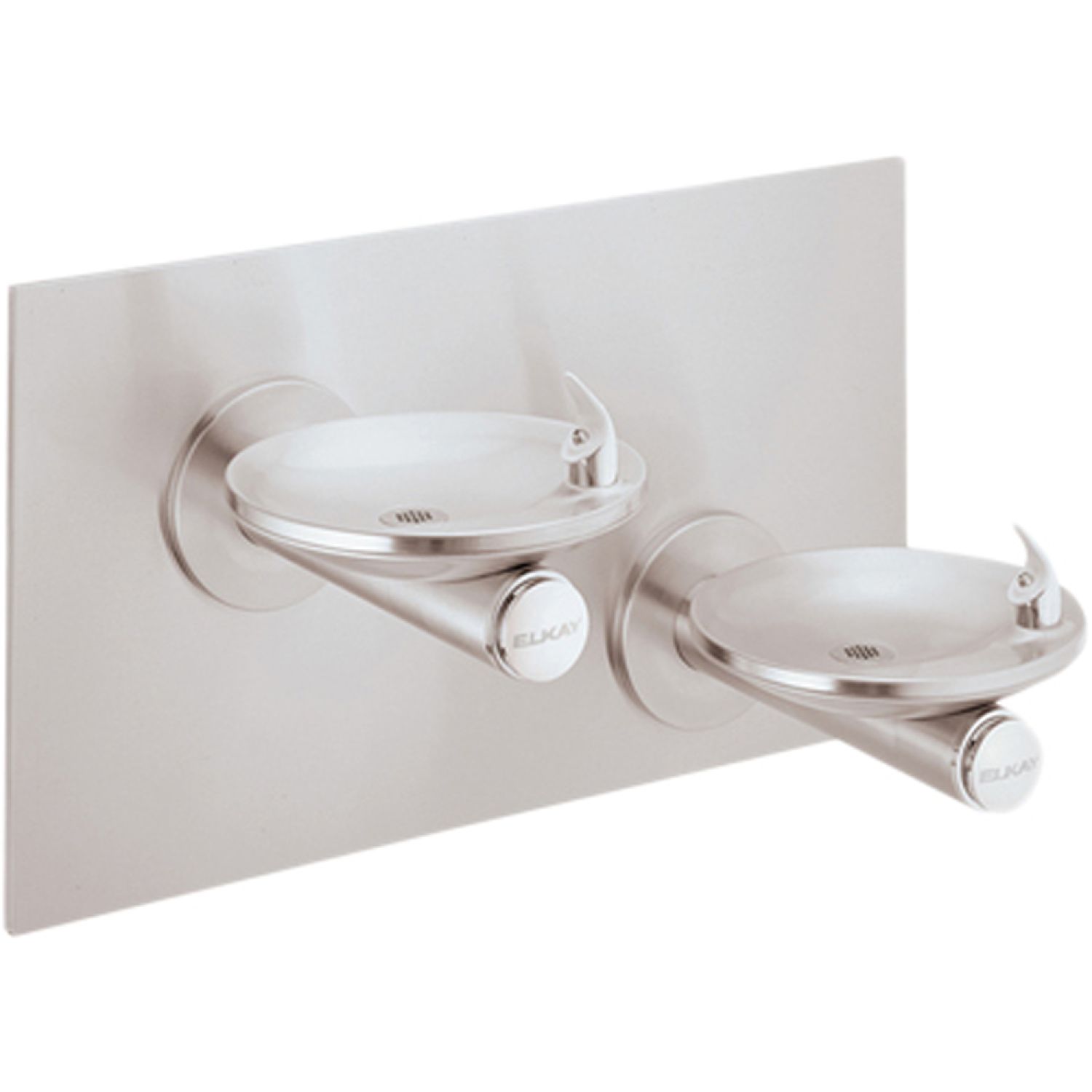

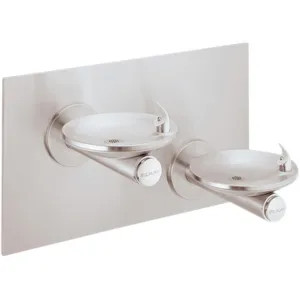

Elkay EDFPBM117C - SwirlFlo Bi-Level Fountain - Non-Filtered, Non-Refrigerated, Stainless

SKU: 75406

 Free Shipping!
Save 46% · Retail: $3,098.00

In Stock and Ready to Ship

Ships From Price Qty
Iowa Warehouse
Ships in 1-4 Days
$2,082.22/ea 40
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Elkay EDFPBM117C

Having seen the rising need for clean and fresh drinking water and preventing the risk of contact with disease-causing germs and lead contamination, Elkay improved and modernized the EDFPBM117C drinking fountain. This two-level drinking fountain is constructed from 18-gauge stainless steel to be aesthetically pleasing and solidly tough. It comes with 16-gauge tubular stainless steel support arms with distinct recesses, each integrating to a basin. Another benefit is the two (2) Swirflo fountains, each with the Flexi-Guard safety bubbler with push-bar activation features that are easy to operate and ADA compliant.

The Elkay EDFPBM117C drinking fountain delivers non-refrigerated water at a constant stream of 20-105 psi. It has a sleek finish polished to a lustrous satin, ensuring a bright outer edgeThe barrier-free fountain has two (2) basins specifically designed to minimize splashing; the left basin is positioned for standard standing height and the right basin is positioned for standard height wheelchair use.

This Elkay EDFPBM117C two-level drinking fountain will continue to supply water even during power outages due to its mechanically activated bubblers. The bubblers have flexible mouth guards with antimicrobial properties to lessen the risk of injuries and microorganisms. This fully-exposed drinking fountain is equipped with a back plate and surface mounting. You can install it inside or outside your home or building. This Elkay EDFPBM117C two-level drinking fountain is 38-1/2” long, 19” wide and 21-15/16” high overall. It is non-electric.

This drinking fountain enjoys a Limited Warranty, 1 year from installation for the electrical components and water system. It complies with ADA, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 42, 53, 61, and 372 (lead-free), and UL 399 requirements and standards, ensuring your safety and health.

Elkay wants you to experience only the best, combining eco-friendly and cost-effective measures with modern sensibility, always taking your health, style and quality of life into consideration every step of the way. You can save when you buy it here at PlumbersStock.

Product Details

Manufacturer: Elkay
Style: Two Fountain
Mount Type: Wall Mount
Mpn # EDFPBM117C
Shipping Dimensions 40.8" x 15.7" x 28.9"
Weight 72.00 lbs.
Shipping Dimensional Weight 104.85 lbs.

Product Features

  • SwirlFlo drinking fountain
  • Wall Mount and Barrier-Free
  • No Lead design
  • #18 gauge, 300 series stainless steel
  • Polished to a lustrous satin finish with high shine outer edge
  • #16 gauge, 300 series tubular stainless steel support arms incorporate unique recess to be integrated with basin
  • Fully exposed two-level fountain basins
  • One fountain is positioned lower on the right for wheelchair use
  • The other fountain is positioned on the left at a standing height
  • Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms
  • Fountains have contoured basin that minimizes splashing
  • Safety bubblers are keyed in location to prevent rotation
  • Fully functional, vandal-resistant front push button
  • Flow regulator provides constant stream from 20 to 105 psi water pressure
  • One-piece back panel eliminates unsightly seams
  • Includes surface mounting plate
  • Rated for indoor or outdoor use
  • No traps are furnished
  • Water system is warranted for 12 months from date of installation
  • ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, NSF 61, and NSF 372 (lead-free) compliance
