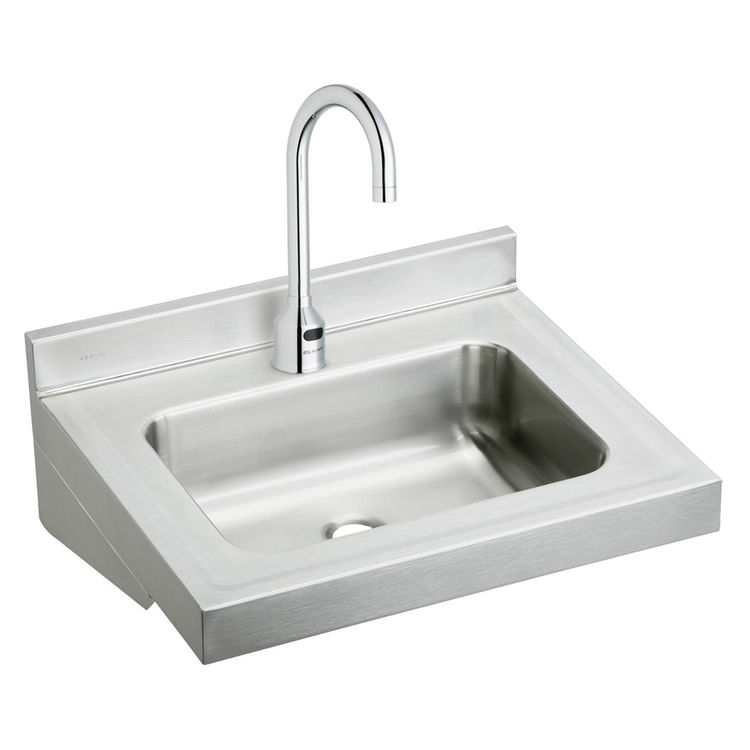

Elkay ELV2219SACMC Lavatory Stainless Steel Single Bowl Sink Package

SKU: 74029
Minimum Quantity: 1

$1,337.82/ea Free Shipping!
Save 44% · Retail: $2,369.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,337.82/ea

About the Elkay ELV2219SACMC

The Elkay ELV2219SACMC Lavatory Stainless Steel Single Bowl Sink Package. This sink is designed for a wall mount installation. This package includes the LKB721C sensor-operated, deck-mounted, non-mixing gooseneck faucet with adjustable sensor eyes and the LK724 mechanical mixing valve with a chrome-plated brass body. The Elkay ELV2219SACMC Single Bowl Sink is designed for efficiency and functionality. The overall dimensions of the sink are 19" in length and 22" in width while the bowl is 16" long, 11-1/2" wide and 5-1/2" deep with a 2-1/2” high back-splash and a 2-1/2” apron at the front and both sides. This sink has 1 faucet hole. This sink is furnished with integral stainless steel support brackets and separate wall-hanger. The 1-5/8” drain opening is located at the rear center of the bowl (refer to the specification sheet). The exposed surfaces of this #14-gauge sink have been polished to a uniform satin luster finish. The underside of this sink has been sound-deadened. The Elkay ELV2219SACMC Lavatory Sink complies with ASME A112.19.3/CSA B45.4 and ADA requirements. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product:
Manufacturer: Elkay
Material: Stainless Steel
Use:
Type: Sink
Style: Wall Mount
Size:
Product Collection:
Faucet Features: ADA
Other Info: Drain Not Included
Number of Holes: 1 Hole
Faucet Part Feature: Infrared Sensor
Shape: Rectangle
Color:
ADA:
Room: Bathroom
Faucet Part Type: Sensors
Bathroom Faucet Type: Commercial Faucet
Installation Type:
Faucet Handle Type: Motion Sense
Material Gauge: 18 Gauge
Mount Type:
Mpn # ELV2219SACMC
Weight 26.81 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Wall mount.
  • This sink package comes furnished with a faucet LKB721C and mixing valve LK724.
  • Bowl Depth: 5-1/2 inches.
  • Exposed surfaces are hand blended to a uniform satin luster finish.
  • Furnished with wall hanger and stainless steel support brackets.
  • Drain opening 1-5/8 inches.
  • Underside is sound deadened.
  • Furnished with integral stainless steel support brackets and separate wall hanger.
  • LKB721C is a sensor-operated, deck-mounted, non-mixing gooseneck faucet with adjustable sensor eyes.
  • A continuous beam is emitted from sensor and faucet is activated when hands are placed under the spout.
  • Water will flow as long as hands remain within sensor range. When hands are removed, the water stops automatically based on shut-off delay setting. The sensor then resets for the next user.
  • The faucet is a chrome-plated solid brass construction with 2.0gpm laminar flow control on spout end that includes water-resistant sensor control module and power cables.
  • The faucet features dual power options: AC plug-in and battery holder with four AA batteries.
  • The faucet has a slow-closing, piston-operated solenoid valve, an in-line filter with a clean-out trap and a flexible supply hose.
  • The faucets control circuit is solid state, has an adjustable sensor range of 7/8 inch (22mm) to 6-3/4 inches (171mm) with a shut-off delay preset at 1 second and field adjustable to 2 seconds (to prevent sink overflow).
  • LK724 is a mechanical mixing valve with C.P. brass body, 3/8 inch (10mm) compression inlets with check valves on and outlet connections.
  • Meets ADA requirements.
