About the Elkay EWS3120SACMC

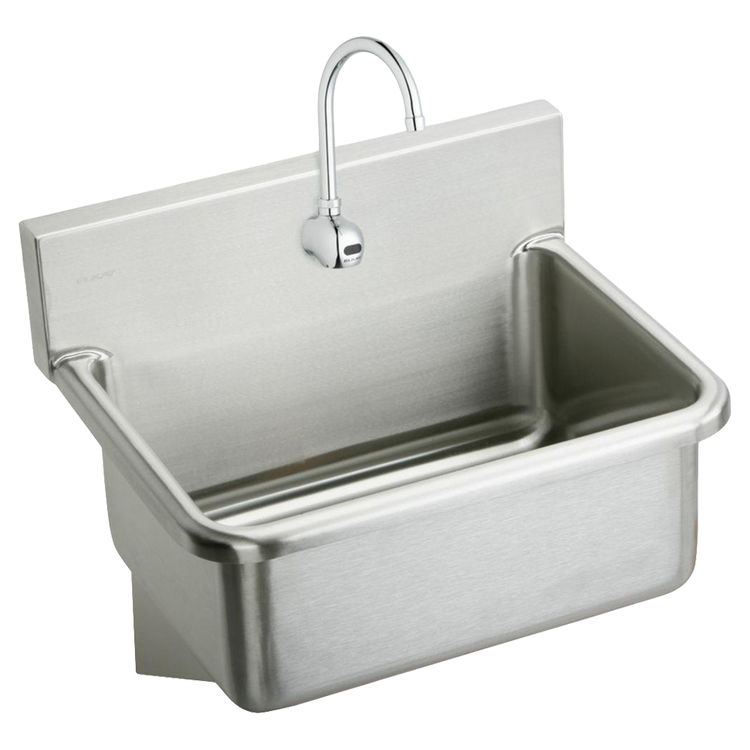

The Elkay EWS3120SACMC Scrub-Up Stainless Steel Single Bowl Sink Package. This sink is designed for a wall-mount installation. The sink is furnished with LKB722C, the sensor-operated, non-mixing and backsplash-mounted, goose-neck faucet, the LK724 mechanical mixing valve and the stainless-steel with perforated strainer LK18B drain. The Elkay EWS3120SACMC Single Bowl Sink is designed for efficiency and functionality. The overall dimensions of the sink are 19-1/2" in length and 31" in width while the bowl is 28" long, 16" wide and 15-1/2" deep with a full-length 6” high back-splash. This sink is furnished with 1 faucet hole and has a wall-hanger with stainless steel support brackets. The 3-1/4” drain opening is located at the rear center of the bowl (refer to the specification sheet). The exposed surfaces of this #14-gauge sink have been polished to a uniform satin luster finish. The underside of the sink is sound-deadened. The Elkay EWS3120SACMC Scrub-Up Sink complies with ASME A112.19.3/CSA B45.4, ASME A112.18.1/CSA B125.1, NSF 61, NSF 372 for being lead-free and ASME A112.18.2/CSA B125.2. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product: Medical
Manufacturer: Elkay
Material: Stainless Steel
Use:
Type: Surgeons Sink
Style: One Bowl
Rough-In Valve Series: Wall Mount
Size:
Product Collection:
Number of Holes: 1 Hole
Faucet Part Feature: Infrared Sensor
Color:
Room: Bathroom
Installation Type:
Material Gauge: 14 Gauge
Depth: 12" up to 24" Deep
Mpn # EWS3120SACMC
Weight 51.39 lbs.

Product Features

  • Highest quality sink formed of #14 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Wall mount.
  • Includes the drain LK18B, the mixing valve LK724 and the faucet LKB722C.
  • Bowl Depth: 10-1/2 inches
  • Exposed surfaces are hand blended to a uniform satin luster finish.
  • Underside is sound deadened.
  • Furnished with wall hanger and stainless steel support brackets.
  • LKB722C is a sensor-operated, deck-mounted, non-mixing gooseneck faucet with adjustable sensor eyes.
  • A continuous beam is emitted from the sensor and the faucet is activated when hands are placed under the spout.
  • Water will flow as long as hands remain within sensor range. When hands are removed, the water stops automatically based on shut-off delay setting. The sensor then resets for the next user.
  • The faucet is a chrome-plated solid brass construction with 2.0gpm laminar flow control on spout end that includes water-resistant sensor control module and power cables.
  • The faucet features dual power options: AC plug-in and battery holder with four AA batteries.
  • The faucet has a slow-closing, piston-operated solenoid valve, an in-line filter with a clean-out trap and a flexible supply hose.
  • The faucets control circuit is solid state, has an adjustable sensor range of 7/8
  • LK724 is a mechanical mixing valve with C.P. brass body, 3/8
  • The mixing valve is certified under ASSE1016.
  • LK18B is a stainless steel perforated strainer grid with a 1-1/2 inches(13mm) SWT inlets and outlet connections, check valves on the inlets and a mixed temperature range of 80- 120F.
  • Rear centered drain outlet with drain opening size 3-1/4 inches
  • Vertical and horizontal coved corners are 1-3/4 in radius.
