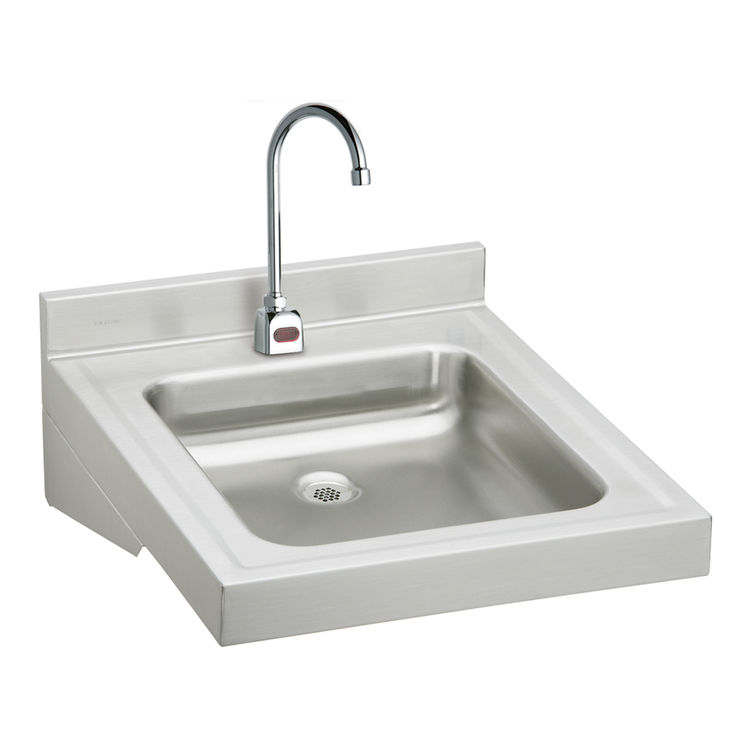

Elkay WCL1923OSDSACMC Lavatory Stainless Steel Single Bowl Sink Package

SKU: 73093

$1,183.45/ea Free Shipping!
Save 43% · Retail: $2,089.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,183.45/ea

About the Elkay WCL1923OSDSACMC

The Elkay WCL1923OSDSACMC Lavatory Stainless Steel Single Bowl Sink Package. The sink is designed for a wall-mount installation. This package includes the LKB721C sensor-operated, deck-mounted, non-mixing gooseneck faucet with adjustable sensor eyes and the LK724 mechanical mixing valve with C.P. brass body. The Elkay WCL1923OSDSACMC Single Bowl Sink is designed for efficiency and functionality. The overall dimensions of the sink are 19" in length and 23" in width while the bowl is 13-1/2" long, 16" wide and 4" deep with a full-length 2-1/2" high backsplash. This sink has 1 faucet hole. The 1-5/8” drain opening is located at the rear center of the bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a uniform satin luster finish. The underside of the sink is sound-deadened. The Elkay WCL1923OSDSACMC Lavatory Sink complies with ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product:
Manufacturer: Elkay
Material: Stainless Steel
Use:
Type: Sink
Style: Wall Mount
Size:
Product Collection:
Faucet Features: ADA
Other Info: Drain Not Included
Number of Holes: 1 Hole
Faucet Part Feature: Infrared Sensor
Shape: Rectangle
Color:
ADA:
Room: Bathroom
Faucet Part Type: Sensors
Bathroom Faucet Type: Bathroom Sink Faucet
Installation Type:
Material Gauge: 18 Gauge
Mount Type:
Mpn # WCL1923OSDSACMC
Weight 28.06 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Wall mount.
  • This sink package comes furnished with a faucet LKB721C and mixing valve LK723.
  • Bowl Depth: 4 inches.
  • Exposed surfaces are hand blended to a uniform satin luster finish.
  • Underside is sound deadened.
  • Furnished with integral stainless steel support brackets.
  • Rear centered drain outlet with drain opening size 1-5/8 inches (41mm).
  • With connected overflow.
  • LKB721C is a sensor-operated, deck-mounted, non-mixing gooseneck faucet with adjustable sensor eyes.
  • A continuous beam is emitted from sensor and faucet is activated when hands are placed under the spout.
  • Water will flow as long as hands remain within sensor range. When hands are removed, the water stops automatically based on shut-off delay setting. The sensor then resets for the next user.
  • The faucet is a chrome-plated solid brass construction with 2.0gpm laminar flow control on spout end that includes water-resistant sensor control module and power cables.
  • The faucet is a chrome-plated solid brass construction with 2.0gpm laminar flow control on spout end that includes water-resistant sensor control module and power cables.
  • The faucet has a slow-closing, piston-operated solenoid valve, an in-line filter with a clean-out trap and a flexible supply hose.
  • The faucets control circuit is solid state, has an adjustable sensor range of 7/8 inch (22mm) to 6-3/4 inches (171mm) with a shut-off delay preset at 1 second and field adjustable to 2 seconds (to prevent sink overflow).
  • LK724 is a mechanical mixing valve with C.P. brass body, 3/8 inch (10mm) compression inlets with check valves on and outlet connections.
  • This sink meets ADA requirements.
