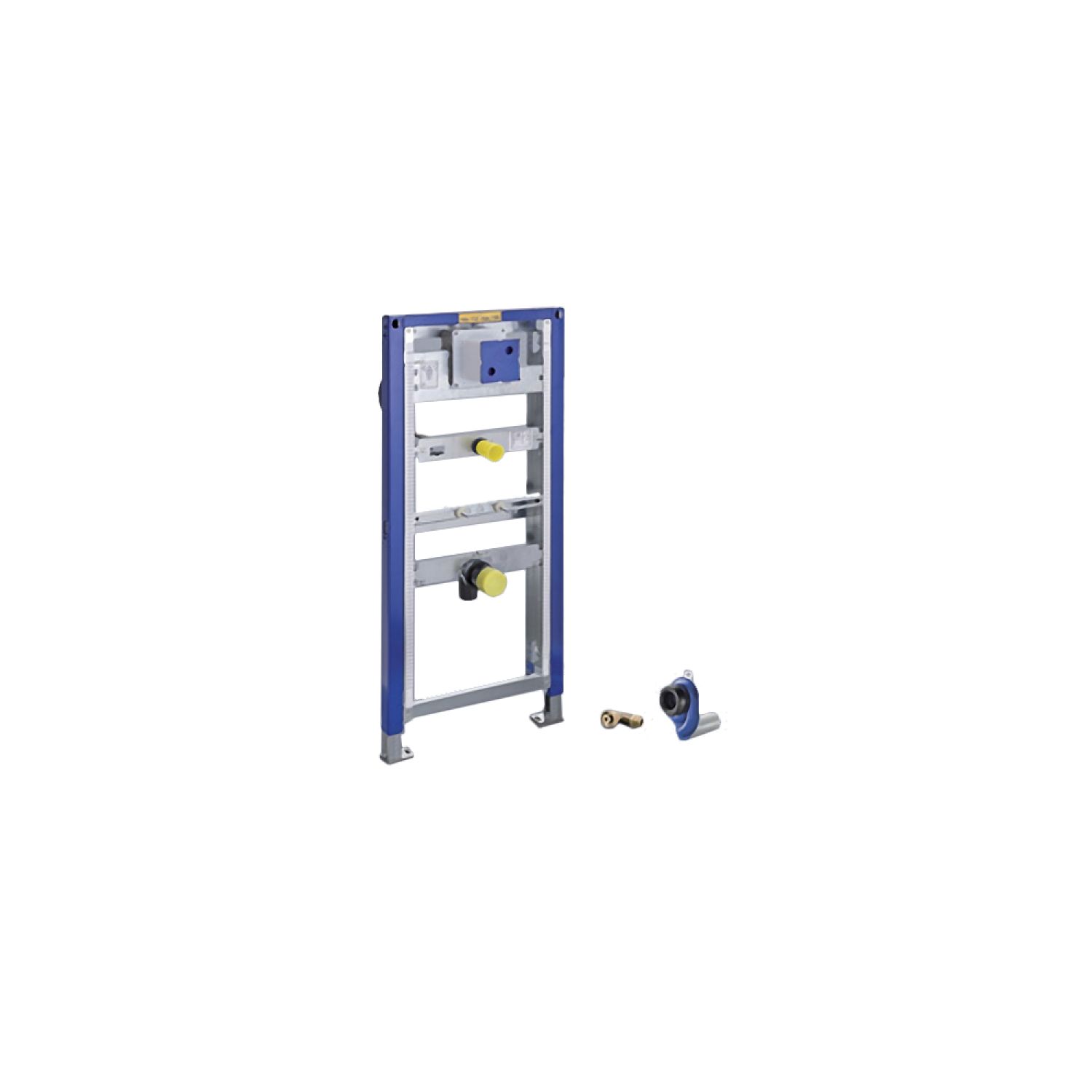

Geberit 111.625.00.1 Concealed Installation System For Wall-hung Urinal

SKU: 408388

Save 48% · Retail: $557.00

See buying options below:

Ships From Price Qty
Iowa Warehouse
Ships in 1-3 Days
$518.14/ea 10
Tennessee Warehouse
Ships in 1-3 Days
$647.67/ea 1
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Geberit 111.625.00.1

Geberit 111.625.00.1 Concealed Installation System For Wall-hung Urinal. The Geberit Group is the European market leader in bathroom innovations and technology. Their high-end products provide over 40 countries a unique alternative to the traditional toilet and sanitary systems. The concealed tanks and carrier systems improve the look of any bathroom by placing the toilet tank within the wall. Their wide range of durable and eco-friendly products vary from wall/floor mounted toilets to piping systems, and everything in between. This Geberit 111.625.00.1 Concealed Installation System For Wall-Hung Urinal is a duofix carrier installation frame deigned for urinal systems. This 44" Frame is for use with the Wall-Hung flush valves and urinals only. This system includes the metal frame, and the mounting hardware for the urinal and carrier frame. The Wall-Hung urinal frame is durable enough to support 110 pounds. This carrier frame is ideal for residential and light commercial grade applications.

Product Details

Manufacturer: Geberit
Style: Commercial
Shape: Concealed
Room: Bathroom
Mount Type:
Mpn # 111.625.00.1
Weight 24.00 lbs.

Product Features

  • Duofix carrier installation frame for wallhung urinal Universal.
  • With adjustable fixture, supply, drain and valve mounitng elevations and/or widths
  • Supports up to 110 lbs (50 kg)
  • Not suitable for hangertype urinals with flushometer spud connections
  • Water supply connection at right
  • Selflocking feet for toolfree alignment of the element
  • Feet galvanized, infinitely adjustable 0 8 in (0 20 cm)
  • Flow rate at 15 psi (1 bar): 3.8 / 4.7 gpm without flow limiter (0.24 / 0.3 l/s)
  • Water test pressure: 230 psi (16 bar)
  • Operating pressure range: 14 116 psi (1 8 bar)
  • Frame, roughin box, water supply, drainage elbow
  • For installation of concealed flush valves for wallhung urinal
  • 2 threaded rods M8 for ceramics fastening
  • Vaccuum breaker
  • Fastening material
  • For installation in wood or steel stud walls that provide support in a minimum 3" (75 mm) depth
  • For single flush
  • For room wall or preWall construction covered with panels (gypsum or wood)
  • For installation in front of a solid or drywall
  • For installation in roomheight preWall or partition wall
  • For a floor construction of 0 8 in (0 20 cm)
  • For 2hole stud mounted wallhung urinal with rear water inlet
