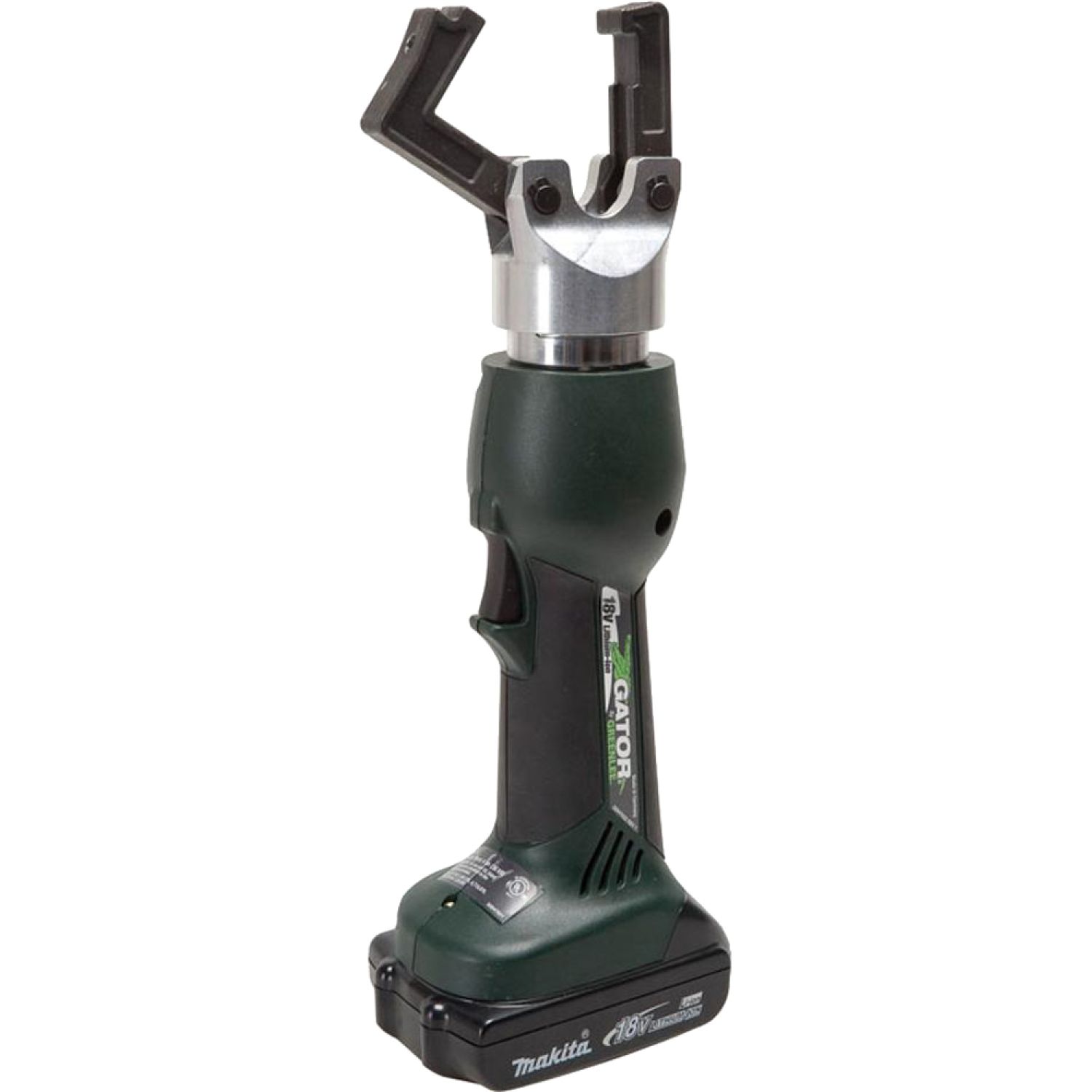

Greenlee EK410L120 Battery-Powered Crimp Tool (4-ton)(120V AC Adapter)

SKU: 274522

 Free Shipping!
Save 23% · Retail: $1,875.12

  Available to Ship in 3-4 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Greenlee EK410L120

The Greenlee EK410L120 Battery-Powered Crimp Tool (4-ton)(120V AC Adapter) is part of Greenlee's premium collection of tools and accessories. This A/C-powered crimping tool features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It has an automatic retraction stop that retracts the ram just enough to get ready for the next cycle time, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, and an LED worklight.

Product Details

Manufacturer: Greenlee
Style: Hydraulic
Mpn # EK410L120
Weight 0.12 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Used with Greenlee KC4, KA4 and KD4 crimping dies
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Battery : 18 V, 1.5 AMP-HR Lithium-Ion
  • Battery Charge Time : 30 MINT
  • Crimp Cycle Time : 4 S
  • Crimping Capacity : 8 AWG - 300 KCMIL (MCM) Copper Color Coded Connectors, 8-2/0 AWG Aluminum Color Coded Connectors, 5/8 IN Service Entrance Connectors, 840 Service Entrance Connectors
  • Crimping Force : 7900.000 LB (35.000 KN)
  • Estimated Cycles per Charge : 200
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Overall Length : 13-1/4 IN (337.000 MM)
  • Replacement Part : 52177 UPC 52177 18 V 1.5 AMP-HR Li-ion Battery, 25752 UPC 25752 Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC52179 12 V Charger, 52180 UPC52180 230 V Charger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • Weight : 4.000 LB (1.800 KG)
  • Width : 2-7/8 IN (73.000 MM)
  • LED light provides the operator with the battery charge and tool maintenance status
  • In line tool style is light weight and very easy to control
  • One trigger controls all tool functions
  • Crimping head rotates 350 degrees
  • Tools automatically retract when the crimping or cuttingcycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminatesdark work areas
