Grundfos CMBE 5-62 Booster Pump - 35 GPM at 40-60 PSI, 2 HP, 230V - Grundfos 98548116

SKU: 527579
   based on 1 Reviews
$2,123.08/ea
 Free Shipping!
Save 55% · Retail: $4,687.00

  Available to Ship in 3-4 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$2,123.08/ea

About the Grundfos 98548116

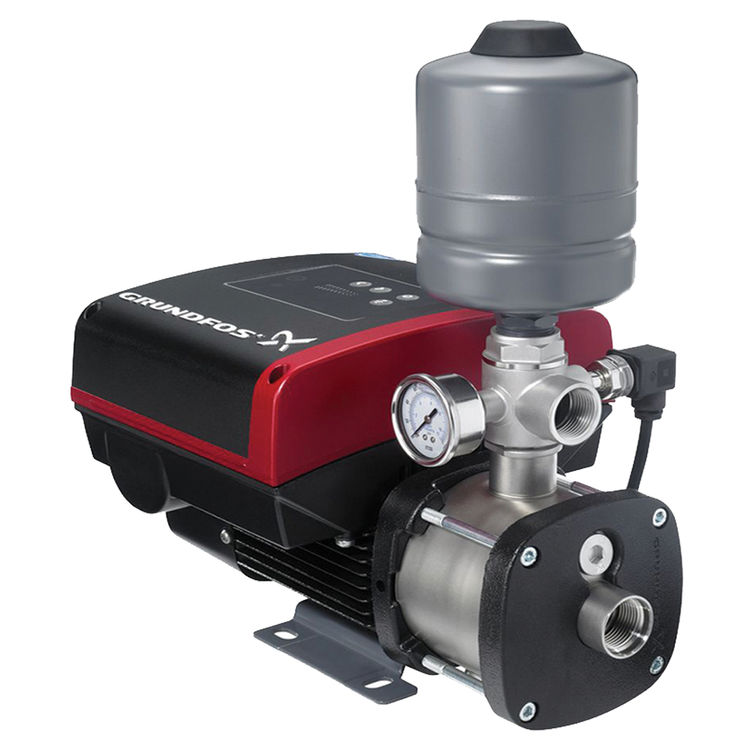

The Grundfos CMBE 5-62 2-horsepower, 230-volt, 50/60 Hz, constant-pressure, multistage, centrifugal booster pump (98548116 ) is designed for water supply, irrigation, and dewatering in domestic and light-commercial applications. This easy-to-install, horizontal, compact system comes preassembled with a CME pump, a highly efficient ECM motor, a diaphragm tank, pressure gauge, pressure and flow sensor, controller, and a 5-way fitting with a non-return check valve. The permanent-magnet motor provides an energy-saving, reliable, and quiet booster pumping solution; and an integrated speed controller maintains constant pressure by changing the motor speed as needed whenever the sensor detects a fluctuation in discharge pressure.The system also includes dry-running protection. With its robust, stainless-steel construction, the Grundfos model CMBE 5-62 98548116 can be used to boost pressure for a wide range of purposes, including the supply of water for drinking (NSF 61/372 approved), gardening, and agriculture. The supply source could be tap water, chlorinated water, softened water, a shallow well, rainwater, condensate, groundwater, river or lake water, boiler feed water, district heating water, and so on, as long as the liquids being transferred are clean, thin, with no solid particles or fibers that could cause wear or clog the pump, and are not aggressive or explosive (no diesel oil or other liquids containing oil). The PSI Boost on this specific CBME 5-62 98548116 constant-pressure booster pump operates at 20-60 PSI, 0-35 GPM. On a simple control panel, the Grundfos Eye indicates system status, warnings, and alarms.One-touch control buttons make set point adjustment easy; and the free Grundfos GO App allows you to communicate with and control this pump from your mobile device. In selecting an appropriately sized CMBE model, consider whether the pump will serve just one or several homes, apartments, a school or small office building, agriculture, or irrigation purposes to make sure you have the required pressure, flow, horsepower, and voltage to meet the demands on the system. Both 1x110-120V and 1x200-240V alternatives are available in the CMBE series. Please refer to the "CMBE Data Booklet" in the Resources section of this web page for the most complete set of Selection Guides and performance data to help you choose the best model of pump for your specific circumstances.

Product Details

Electrical Voltage: 220-240 Volt
Motor Size: 2 HP
Flow Rate: 35 GPM
Cord Length: Cord Not Included
Product: Pumps
Manufacturer: Grundfos
Mpn # 98548116
Shipping Dimensions 22.0" x 16.0" x 19.0"
Weight 65.00 lbs.

Product Videos

CME Booster (Service video)
CM booster video

Product Features

  • Constant pressure via integrated speed control
  • 2 HP
  • PSI Boost: 20-80 PSI at 0-25 GPM, 20-60 PSI at 0-35 GPM
  • Commercial-grade quality in one compact system, including pump, motor, tank, pressure and flow sensor, controller, and check valve
  • Reliable and easy to install
  • Low energy consumption with highly efficient ECM motor that reduces operating costs
  • Drinking water NSF 61/372 approved
  • Robust, stainless steel construction
  • Dry-running protection
  • Noise level below 55 dBA and even lower at controlled speed
  • Simple control panel features GRUNDFOS Eye that indicates system status, warnings, and alarms
  • 230 Volt
  • Constant pressure with Integrated Speed Control
  • Robust Stainless Steel
  • Dry Run Protection
  • The CME Booster is very easy to install
  • Thermal protection CME Booster pumps require no external motor protection
  • Tank volume: 2 liter
  • Approvals and markings: CE and CULUS
  • Full Sku: CMBE 5-62 I-U-C-E-D-F
  • Rated speed: 360-4000 rpm
  • Liquid temperature range: 0 .. 60 C
  • High-efficiency motor with frequency converter (IP55)
  • Pump Inlet: 1-1/4"
  • pump Outlet: 1"
