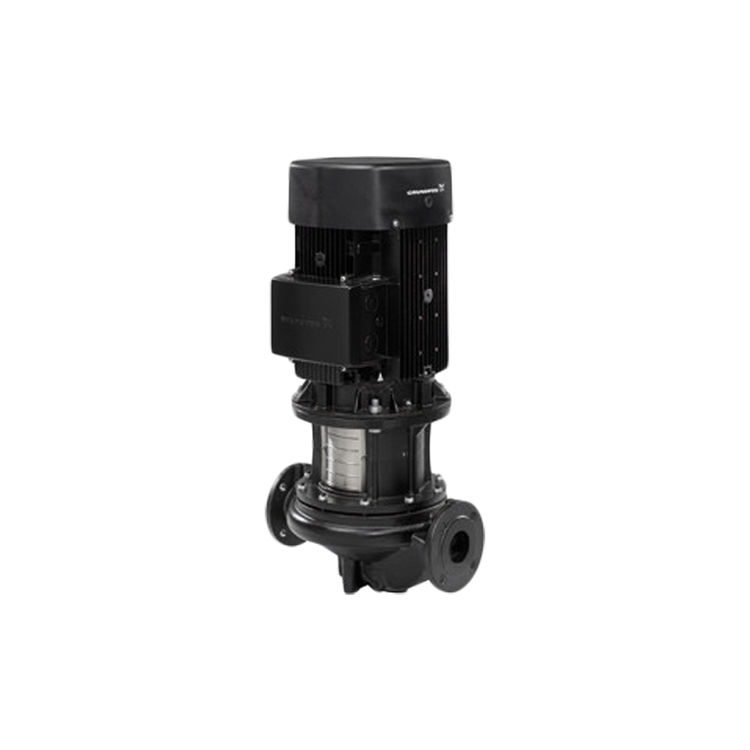

Grundfos 96411784 Grundfos TP 32-80/2B 1-Stage Inline Centrifugal Pump, 1/2 HP, 37.4 GPM, 115/230V, Bronze, Flanged - A-G-Z-BUBE-DY2 (96411784)

Grundfos TP 32-80/2B 1-Stage Inline Centrifugal Pump, 1/2 HP, 37.4 GPM, 115/230V, Bronze, Flanged - A-G-Z-BUBE-DY2 (96411784)

SKU: 102550
Manufacturer Image
-51.1%
$ 2638 .37 / ea
$ 5394 .00 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 3-4 weeks
factory Orders from the Manufacturer
Manufacturer: Grundfos
Electrical Voltage: 115/230 Volt
Motor Size: 1/2 HP
Pump Features: 1 Phase
Product: Pumps
Product Collection: TP
Pressure Rating: 145 PSI
Housing Material: Bronze
Color: Black
Connection Size: 1-1/4"
Connection Type: ANSI
Flow Rate: 37.4 GPM
RPM: 3450 RPM
  Water Recirculation
Pump Type: Centrifugal Pump
Mpn # 96411784
Weight 55.70 lbs.

About the Grundfos TP 32-80/2B 1-Stage Inline Centrifugal Pump, 1/2 HP, 37.4 GPM, 115/230V, Bronze, Flanged - A-G-Z-BUBE-DY2 (96411784)

Introducing the Grundfos TP 32-80/2B A-G-Z-BUBE-EY2 1-Stage Inline Circulator Pump, 1/2 HP, 37.4 GPM, 115/230V, Bronze, Flanged (part number: 96411784). Grundfos TP pumps are single-stage, close-coupled centrifugal pumps with a mechanical shaft seal designed for heating, cooling, and district energy systems.

Fitted with fixed-speed motors, like the TP 32-80/2B A-G-Z-BUBE-EY2, these pumps utilize centrifugal force created by the rotation of an impeller to move fluid through the system efficiently and reliably. Whether in industrial, commercial, or residential settings, they deliver consistent performance for optimal operation.

  • Grundfos 96411784 1/2 HP 115/230V Inline Circulator Pump
  • Dual Voltage
  • In-Line Mounting
  • 1.5 Year Warranty
  • Flanged Connection
  • Single Speed/Phase Pump
  • Corrosion-resistant and built to last
  • Temperature Range (F): 5?F to 250?F
  • NEMA motor and mechanical shaft seals
  • Stainless steel double curbed blade impellers
  • Ideal for a variety of commercial and industrial applications
