Grundfos 96411815 Grundfos TP 50-160/2 1-Stage Inline Circulator Pump, 1.5 HP, 92.5 GPM, 208-230/460V, Cast Iron, GF 50 Flange, A-G-A-BUBE-HX2 - 96411815

Grundfos TP 50-160/2 1-Stage Inline Circulator Pump, 1.5 HP, 92.5 GPM, 208-230/460V, Cast Iron, GF 50 Flange, A-G-A-BUBE-HX2 - 96411815

SKU: 282282
$ 2,801.83 / ea
 Free Shipping!
Save 54% · Retail: $6,079.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 3-4 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 3-4 weeks
$2,801.83/ea

About the Grundfos TP 50-160/2 1-Stage Inline Circulator Pump, 1.5 HP, 92.5 GPM, 208-230/460V, Cast Iron, GF 50 Flange, A-G-A-BUBE-HX2 - 96411815

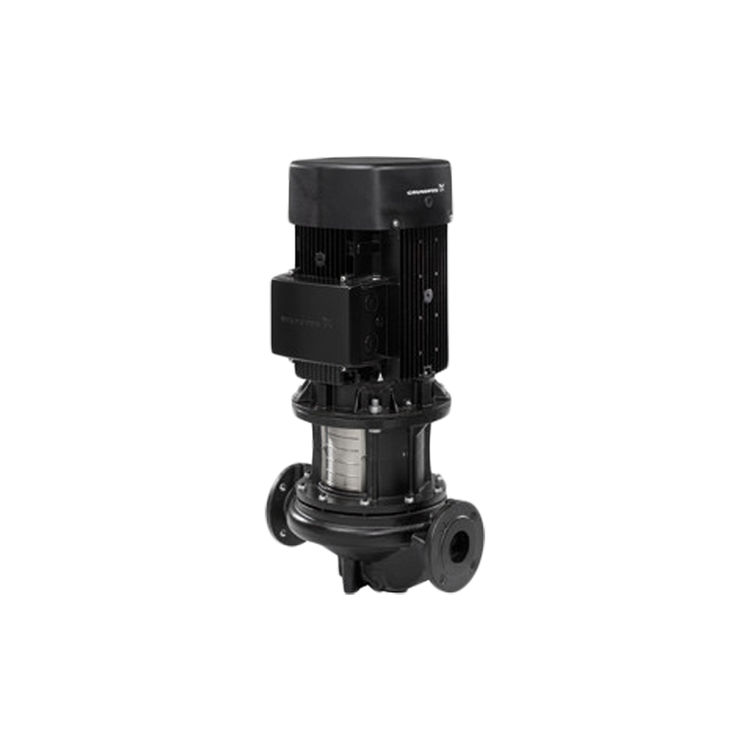

Introducing the Grundfos TP 50-160/2 A-G-A-BUBE-HX2 1-Stage Inline Circulator Pump, 1.5 HP, 92.5 GPM, 208-230/460V, Cast Iron, GF 50 Flange (part number: 96411815). Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps designed for heating, cooling, and district energy systems.

Equipped with a mechanical shaft seal, these pumps ensure reliable application performance. They are fitted with fixed-speed motors, providing consistent operation. Centrifugal pumps operate by converting the rotational energy from the motor into kinetic energy, facilitating the efficient movement of fluids through pipelines.

Manufacturer: Grundfos
Electrical Voltage: 230/460 Volt
Pump Type: Inline Circulator Pump
Motor Size: 1-1/2 HP
Pump Features: 3 Phase
Mpn # 96411815
Weight 65.60 lbs.
  • Grundfos 96411815 1-1/2 HP 230/460V Inline Circulator Pump
  • Dual Voltage
  • In-Line Mounting
  • 1.5 Year Warranty
  • Flanged Connection
  • Single Speed/Phase Pump
  • Corrosion-resistant and built to last
  • Temperature Range (F): 5?F to 250?F
  • NEMA motor and mechanical shaft seals
  • Stainless steel double curbed blade impellers
  • Ideal for a variety of commercial and industrial applications
