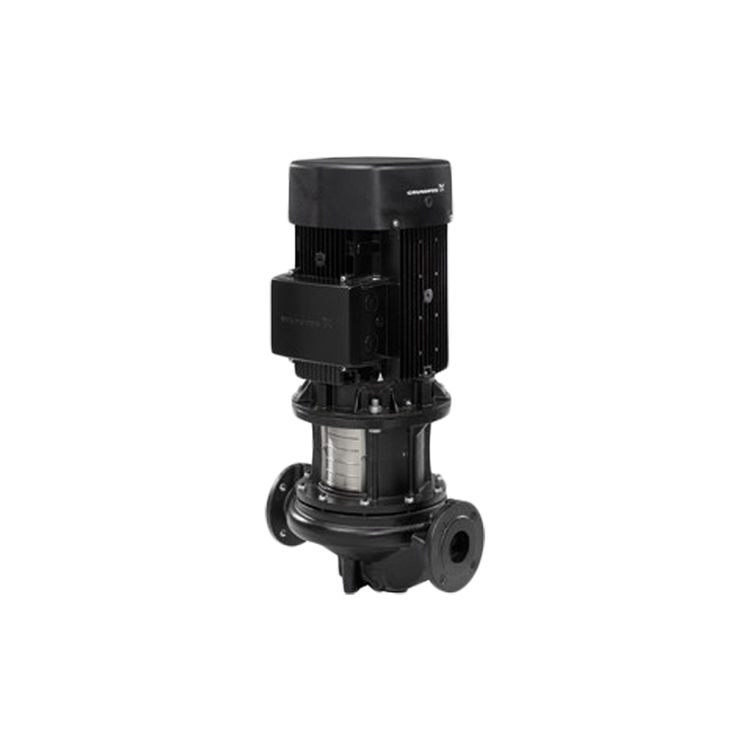

Grundfos TP 50-40/4B 1-Stage Inline Circulator Pump End, Less 1/3 HP Motor, 70.4 GPM, 208-230/460V, Bronze, GF 50 Flange, A-G-Z-BUBE-DY4 - 96411809

SKU: 282276

-51.1%

$ 3226 .30 / ea

$ 6596 .00 / ea

local_shipping Free Shipping

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Available to Ship in 3-4 weeks

factory Orders from the Manufacturer

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Manufacturer:	Grundfos
Electrical Voltage:	230/460 Volt
Motor Size:	1/3 HP
Pump Type:	Centrifugal Pump
Pump Features:	3 Phase
	Water Recirculation
Color:	Black
Connection Type:	ANSI
Pressure Rating:	145 PSI
Product:	Pumps
Product Collection:	TP
Connection Size:	2"
Housing Material:	Bronze
Flow Rate:	70.4 GPM
RPM:	1,725 RPM
Mpn #	96411809
Weight	64.70 lbs.

About the Grundfos 96411809

About the Grundfos TP 50-40/4B 1-Stage Inline Circulator Pump End, Less 1/3 HP Motor, 70.4 GPM, 208-230/460V, Bronze, GF 50 Flange, A-G-Z-BUBE-DY4 - 96411809

Introducing the Grundfos TP 50-40/4B 1-Stage Inline Circulator Pump End, Less 1/3 HP Motor, 70.4 GPM, 208-230/460V, Bronze, GF 50 Flange, A-G-Z-BUBE-DY4 (part number: 96411809). Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps with a mechanical shaft seal, designed for heating, cooling, and district energy applications.

This circulator pump end, crafted from durable bronze, is compatible with a 1/3 HP motor (motor sold separately). With a flow rate of 70.4 GPM, it ensures efficient circulation in various systems. Whether for residential, commercial, or industrial use, the Grundfos TP 50-40/4B delivers reliable performance and longevity.

Product Features

Grundfos 96411809 1/3 HP 230/460V Inline Circulator Pump
Dual Voltage
In-Line Mounting
1.5 Year Warranty
Flanged Connection
Single Speed/Phase Pump
Corrosion-resistant and built to last
Temperature Range (F): 5?F to 250?F
NEMA motor and mechanical shaft seals
Stainless steel double curbed blade impellers
Ideal for a variety of commercial and industrial applications
