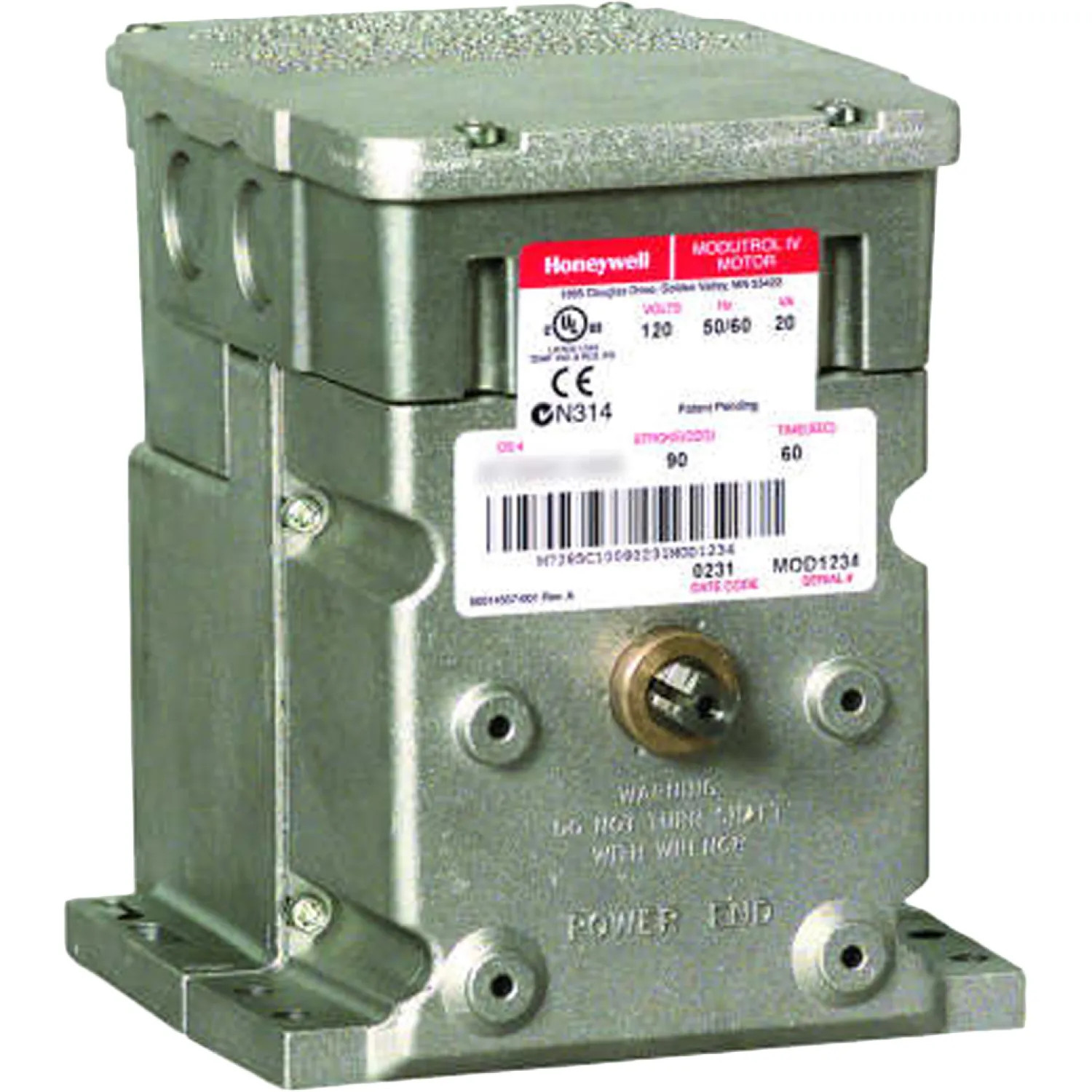

Honeywell 203762C/U NSR Modutrol Motor

SKU: 372080

$650.65/ea
Save 61% · Retail: $1,687.85

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$650.65/ea

About the Honeywell 203762C

Honeywell 203762C/U NSR Modutrol Motor. Honeywell 203762C 300 lb-in NSR Modutrol Motor

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Motor
Style: Parts
Type:
Mpn # 203762C
Weight 0.25 lbs.

Product Features

  • Electric
  • 24V
  • Driving-- 15 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • 2 to 10 Vdc
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • Non-Spring Return
  • 300 lb-in.
  • 34 Nm
  • Yes
  • 160 degrees
  • 60-120 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 164 mm high x 140 mm wide x 185 mm deep
  • 6.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed File: E4436, Guide: XAPX2
  • Certified: File No. LR1620, Guide No. 400-E
  • Quick-connect terminals
