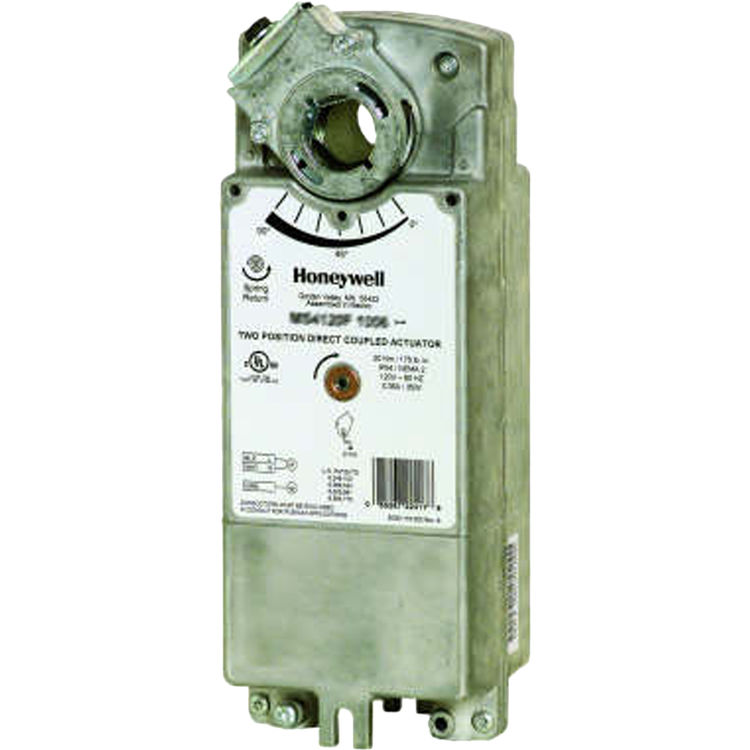

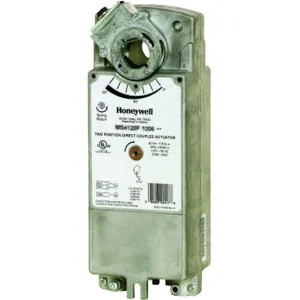

Manufacturer Image
-64.1%
$ 384 .56 / ea
$ 1071 .29 / ea
visa mastercard american-express discover paypal crypto
Qty
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Available to Ship in 2-3 weeks
factory Orders from the Manufacturer
add rocket_launch Faster Shipping  from $415.65
Boise Idaho
$ 415 .65 / ea
local_shipping Ships in 5-7 Days
warehouse Ships from the Warehouse
inventory_2 10 in Stock
add_shopping_cart Add To Cart
Boston Massachusetts
$ 445 .73 / ea
local_shipping Ships in 1-2 Days
warehouse Ships from the Warehouse
inventory_2 20 in Stock
add_shopping_cart Add To Cart
Chicago Illinois
$ 451 .24 / ea
local_shipping Ships in 5-7 Days
warehouse Ships from the Warehouse
inventory_2 130 in Stock
add_shopping_cart Add To Cart

About the Honeywell MS4120F1006/U Honeywell Fast-Acting, Actuator

Honeywell MS4120F1006/U Honeywell Fast-Acting, Actuator. Honeywell MS4209F is a 80 lb-in, spring return, Direct-Coupled, 120 Vac, CW Actuator that accepts Two-Position SPST controls with an integral junction box and on/off signal from a SPST controller. Reliably operates" smoke control systems requiring UL555S ratings up to 350F.

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MS4120F1006
Shipping Dimensions 18.0" x 4.0" x 7.0"
Weight 13.85 lbs.
  • Fire and Smoke
  • 60 Hz
  • UL873, Plenum Rated
  • Teflon-jacketed cable
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 0.35A, 35W, Holding-- 0.15A, 10W
  • -40 F to +140 F
  • -40 C to +60 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 10.67 in high x 3.94 in wide x 2.95 in deep
  • -40 F to +130 F
  • -40 C to +55 C
  • N314
  • NEMA 2; IP54
  • 0
  • Driving (dB(A) @ 1m)-- 70; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 95 degrees
  • 3/8 to 1.06 in. round or 3/8 to 11/16 in. square
  • Damper
  • Two position; SPST
  • 271 mm high x 100 mm wide x 75 mm deep
  • Spring Return
  • 175 lb-in.
  • 20 Nm
  • Maximum Stall-- 425 lb-in.; Minimum Driving at 350 F-- 175 lb-in.
  • Maximum Stall-- 48 Nm; Minimum Driving at 175 C-- 20 Nm
  • No
  • Driving @ 60 Hz (sec)-- 15 sec
  • Maximum-- 15 sec
  • Self-centering clamping
  • Manual crank
  • Self-centering shaft adapter, 3mm crank
  • 10 to 27 mm round or 10 to 18 mm square
  • By orientation
  • 40 in.
  • 1 m
  • 8 lb
  • 3.63 kg
  • Aluminum housing
  • Two integral 3/8 in. flexible conduit connections
  • Direct Coupled
