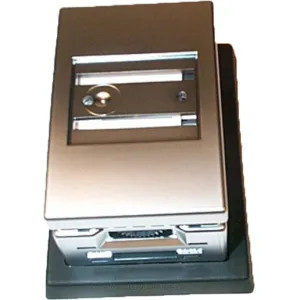

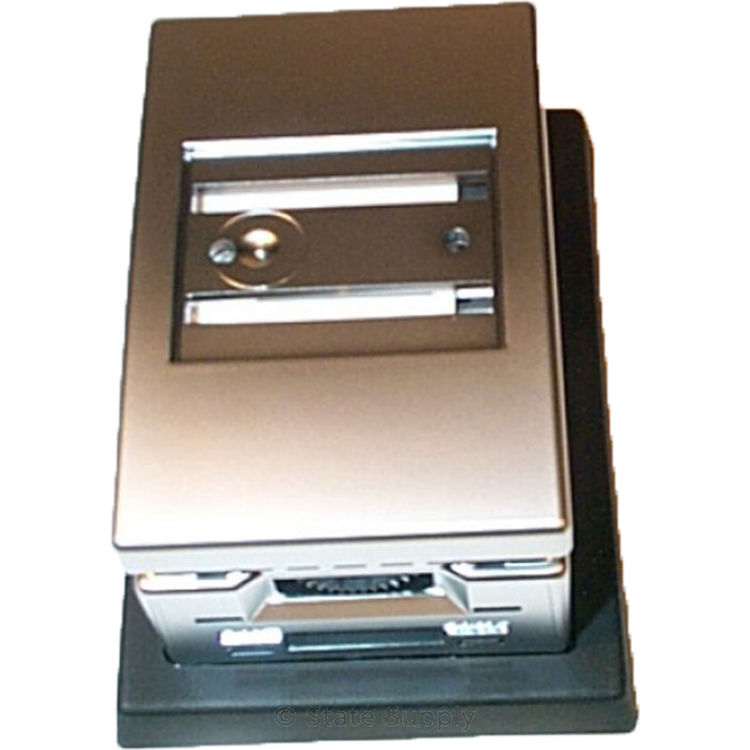

Honeywell TP972A2002 Honeywell TP972A2002/U Pneumatic Thermostat Direct Heating, Reverse Cooling
View 2 of Honeywell TP972A2002 Honeywell TP972A2002/U Pneumatic Thermostat Direct Heating, Reverse Cooling
View 3 of Honeywell TP972A2002 Honeywell TP972A2002/U Pneumatic Thermostat Direct Heating, Reverse Cooling

Honeywell TP972A2002/U Pneumatic Thermostat Direct Heating, Reverse Cooling

SKU: 376466

This product is not currently available for purchase.

About the Honeywell TP972A2002/U Pneumatic Thermostat Direct Heating, Reverse Cooling

Honeywell TP972A2002/U Pneumatic Thermostat - Direct Acting Heating, Reverse Acting Cooling. The Two-pipe, One to Two temperature, pneumatic thermostat gives proportional control of pneumatic valves & damper actuators. Replacement Kits available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic thermostats.

Manufacturer: Honeywell
Style: Pneumatic
Mpn # TP972A2002
Weight 0.20 lbs.
  • Wall Thermostat, Heat/Cool Operation
  • N/S
  • 59 F to 90 F
  • 150 F maximum
  • 66 C maximum
  • Bimetal
  • 2 F to 10 F
  • 1 C to 5 C
  • Direct Acting Heating, Reverse Acting Cooling
  • Single
  • 2
  • 0.011 scfm (5.2 mL/s)
  • Heat 18 psi, Cool 13 psi
  • Heat 124 kPa, Cool 90 kPa
  • 3 1/4 in. high x 2 in. wide x 1 5/8 in. deep
  • 83 mm high x 51 mm wide x 41 mm deep
  • 25 psi
  • 170 kPa
  • 100 F maximum
  • Order Cover Separately
  • Wall mount
