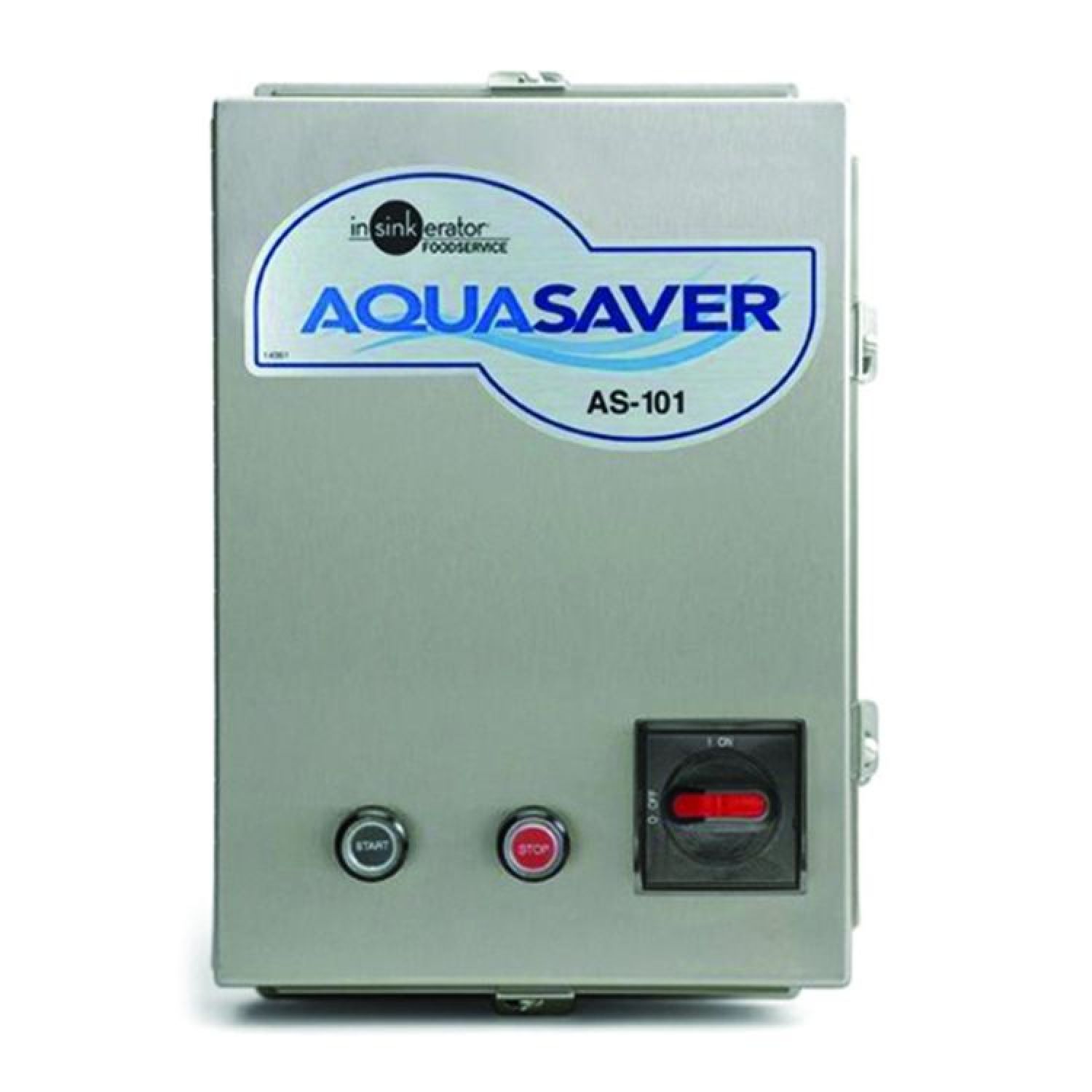

InSinkErator AquaSaver 101 Water and Energy Saving Disposer Control Center

InSinkErator AquaSaver 101 Water and Energy Saving Disposer Control Center

SKU: 89894
$4,310.26/ea
 Free Shipping!
Save 49% · Retail: $8,405.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4,310.26/ea

About the InSinkErator AquaSaver 101 Water and Energy Saving Disposer Control Center

This InSinkErator AS-101 control center will help you save water and energy. This control center utilizes two solenoid valves to automatically supply the exact amount of water for the grinding process of the garbage disposer. It also includes flow control valves with a 1GPM water flow rate. The automatic reverse control helps to boost the capacity of the cutting elements by preventing unwanted jams in the disposer. It actually gives 5-second reverse delay to avoid motor damage. The function of this control center doesn't stop after the grinding process or the motor is turned off. It has the so-called water shut-off delay (post flush) that lets the water flow for another 10 minutes, flushing away all food waste from the drain line. This AS-101 model is a NEMA 4 rated unit and constructed of stainless steel (outdoor/indoor use) to give necessary protection against particles and/or elements that can fail in other lower quality systems. It operates on a low 24V control circuit and designed with a push button to manually start/stop the disposer. This AS-101 is backed by InSinkErator's 1-year standard warranty.

Manufacturer: Insinkerator
Electrical Voltage: 24 Volt
Usage: Indoor
Room: Kitchen
  • The Aqua Saver control center should be mounted 1-1/2" (38.1 mm) back from the front surface of the table.
  • The Aqua Saver System acts as an on-demand water-saving system for InSinkErator foodservice disposers.
  • The AS-101 Control senses the load of the disposer and regulates the amount of water necessary for grinding and non-grinding situations.
  • This Control Panel comes with a stainless steel enclosure.
  • An Automatic Reversing Control changes the direction of the motor in each start-up.
  • Delays the reverse of the disposer while the motor is in motion.
  • Integrated with the Automatic Drop-Out System.
  • Operates on 24V Solid State Control.
  • With a Solid State Control Circuit.
  • It is designed with a post water flush.
  • Includes two 24V solenoid valve.
  • 1GPM flow control valve is also included.
  • The standard warranty is 1-year from the date of installation.
  • The Aqua Saver control center should be mounted 1-1/2
  • Switch/Control Only
  • Incinerator Accessory
  • Authentic in sink orator part
