Little Giant 509561 Little Giant 509560 ES40D1-20 Wastewater Pump

Little Giant 509560 ES40D1-20 Wastewater Pump

SKU: 104912
$ 282.10 / ea
Save 55% · Retail: $623.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Little Giant 509561

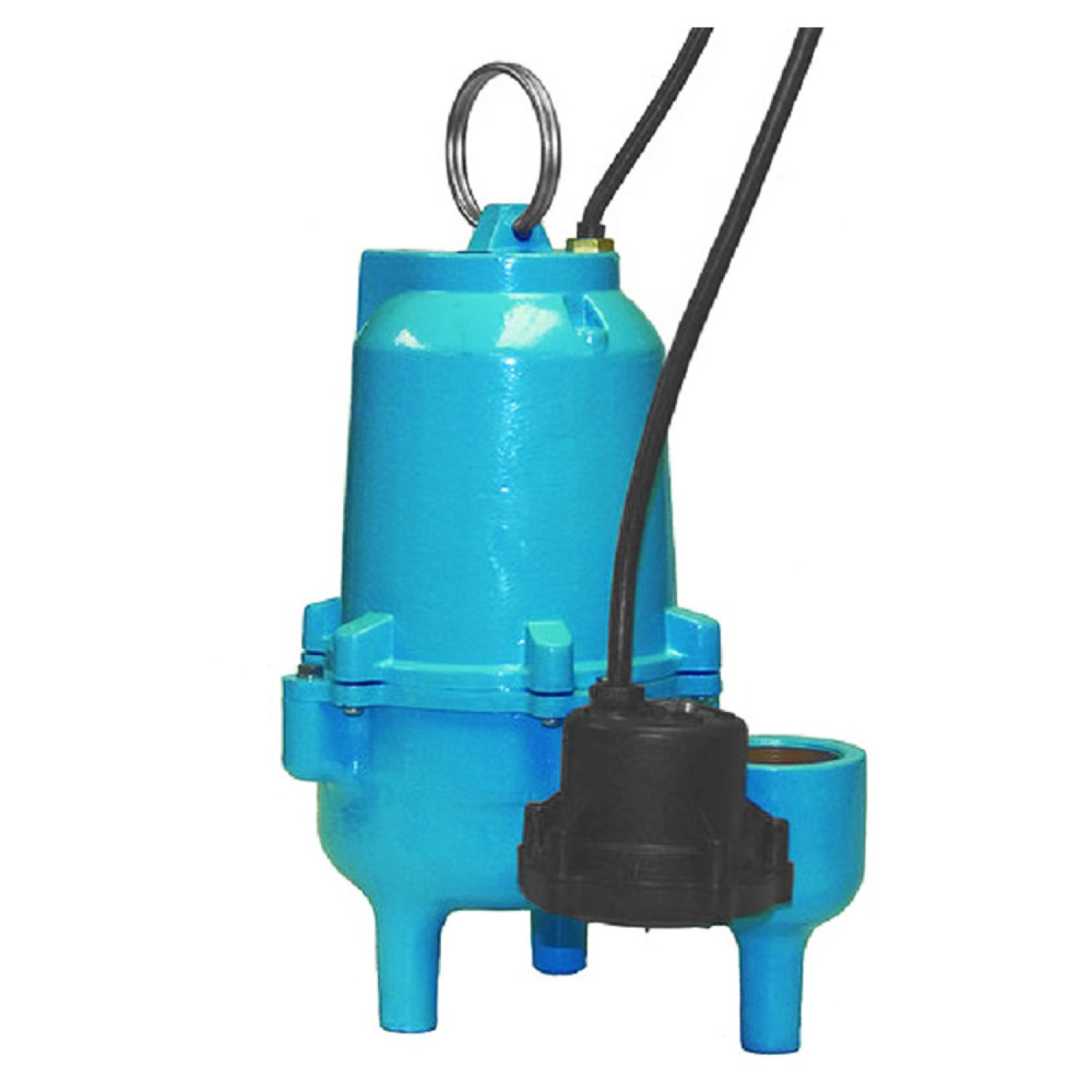

The Little Giant 509560 ES40D1-20 is a submersible wastewater pump. It is designed for sewage and effluent wastewater transfer. This pump has a discharge size of 2” (51 mm) and it can handle up to 2" solids. It has a 4/10 hp permanent split capacitor (PSC) motor with thermal overload protection. This Little Giant 509560 ES40D1-20 Wastewater Pump can pump 95 GPM at 5’ head pressure and up to 22 GPM at 15’ head pressure. It features a vertical diaphragm switch. This pump comes with a 20’ cord. The voltage needed to run this pump is 115V single phase. It has an epoxy-coated cast iron motor housing. Its vortex impeller, which is made of engineered composite materials, is recessed to minimize clogging. For more details, you can refer to the specification sheet. The Little Giant 509560 ES40D1-20 Wastewater Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

Manufacturer: Little Giant
Pump Type: Wastewater Pump
Mpn # 509561
Weight 1.00 lbs.
  • Powerful, 4/10 HP Permanent Split Capacitor (PSC) motor for high starting and running torque, with low amp draw to conserve electrical energy
  • Recessed, vortex impeller made of tough, engineered composite materials to reduce clogging; will pass 2-inch spherical solids
  • Bearings: Upper and lower ball bearings for extended life
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) to assure maximum protection against pump failure
  • Rugged cast iron pump housing with epoxy coating for corrosion resistance
  • Choice of automatic operation: Diaphragm pressure switch Wide angle float switch
  • Oil-filled motor housing for lifetime bearing lubrication and maximum heat dissipation
  • Stainless steel hardware to protect against corrosion
  • Thermal overload protection
