Little Giant 514630 Little Giant 16S-CIM Submersible 1-Phase Sewage Pump, 1 HP, 230v, 178 GPM, 3

Little Giant 16S-CIM Submersible 1-Phase Sewage Pump, 1 HP, 230v, 178 GPM, 3" Discharge - 514630

Name: Little Giant 16S-CIM Submersible 1-Phase Sewage Pump, 1 HP, 230v, 178 GPM, 3" Discharge - 514630
Brand: Little Giant
SKU: 105154
Price: 987.00 USD
Availability: PreOrder

SKU: 105154

-58.0%

$ 987 .00 / ea

$ 2350 .00 / ea

local_shipping Free Shipping

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Available to Ship in 4-5 weeks

factory Orders from the Manufacturer

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Manufacturer:	Little Giant
Product:	Pumps
Pump Features:	1 Phase
Pump Type:	Submersible Pump
Motor Size:	1 HP
Amperage:	19.2/9.6 A
Wattage:	1900W
Electrical Voltage:	230 - 460 V
Power:	Corded
Cord Length:	40'
WiFi Accessable:	No
Modus Operandi:	Electric
Discharge Size:	3"
Connection Size:	3"
Housing Material:	Cast Iron
Color:	Blue
Connection Type:	FNPT
Mpn #	514630
Shipping Dimensions	15.0" x 11.0" x 24.0"
Weight	95.00 lbs.

About the Little Giant 514630

About the Little Giant 16S-CIM Submersible 1-Phase Sewage Pump, 1 HP, 230v, 178 GPM, 3" Discharge - 514630

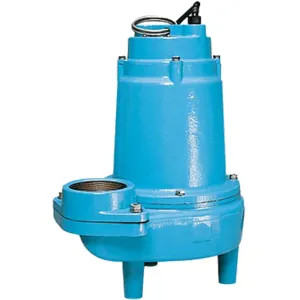

The Little Giant 16S-CIM Dominator Submersible Sewage Pump is highly suitable for sewage and effluent wastewater transfer and dewatering. It is also recommended for basins, and for pumping other non-corrosive and non-flammable liquids. The pump has a discharge size of 3” FNPT (76.2mm) in diameter, so it can handle solids of up to 2” (51 mm) in diameter. The pump has a 1 hp motor.

This Little Giant pump can pump up to 160 GPM at 10' head pressure and up to 40 GPM at 30’ head pressure. It is manually operated. It includes a 20’ cord. The needed voltage to run this pump is 230V single phase. It is designed for lifetime usage because it features a cooler running motor yet is resilient for continuous duty. It allows you to save power because of its energy-saving low amp draw feature. More details are available in the specification sheets.

The Little Giant 514630 is covered by a Limited Warranty for a period of 24 months from the purchase date or 30 months from the manufacture date, whichever takes place first. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability, and dependability of their products have made them a world leader in pumps of virtually every variety.

Product Features

230 Vac 60 Hz Single Phase 40 Foot Cord
Designed For Continuous Duty
1 Horse Power
160 Gallon Per Minute At 10 Foot Rise 35 Foot Max Height
Handles Liquids And Solid Waste Materials Up To 2" Diameter.
3" Fnpt Discharge
Cast iron pump housing with protective epoxy coating for corrosion resistance
Oil-Filled Motor Housing For Lifetime Lubrication And Rapid Heat Dissipation
Two Vane Non-Clog Epoxy Coated Cast Iron Impeller
Upper And Lower Ball Bearings
