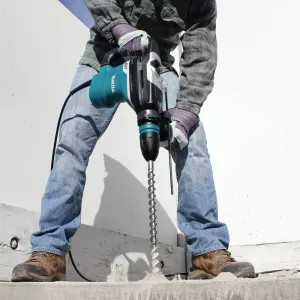

Makita HR4013C 1-9/16" Advanced AVT Rotary Hammer, accepts SDS-MAX bits

SKU: 668110

$731.25/ea
Save 38% · Retail: $1,170.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$731.25/ea

Product Details

Manufacturer: Makita
Mpn # HR4013C

Product Features

  • Powerful 11 AMP motor delivers 8.4 ft.lbs. / 11.4 J. of impact energy to handle the most demanding applications
  • Advanced Anti-Vibration Technology (AVT) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s2
  • Advanced AVT includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
  • Advanced AVT includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
  • Advanced AVT includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more precision and better accuracy
  • Soft no-load function automatically reduces the speed of the motor when idling to help increase tool life and performance
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • L.E.D. power light indicates switch failure or cord damage
  • L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
  • Automatic brush cut-off protects commutator from damage for longer tool life
  • 2-mode operation for "Chipping Only" or "Hammering with Rotation"
  • Lock-on or trigger activation in "Chipping Only" mode with a push button start/stop control for more convenient operation
  • 24 bit angle settings allow the bit to be set at different positions for operating convenience
  • One-touch sliding chuck for quick bit changes
  • Includes a 16.4 ft. power cord for user convenience
  • AMPS : 11
  • Max. Capacity (concrete drilling) : 1-9/16"
  • Optimum Range (concrete drilling) : 5/8" - 1-1/4"
  • Max. Capacity (concrete drilling w/ core bit) : 4-1/8"
  • Impact Energy (Joules) : 11.4 J
  • Impact Energy (ft.lbs.) : 8.4
  • Vibration (m/s) : 5
  • Blows Per Minute (variable speed) : 1,450 - 2,900 BPM
  • No Load Speed (variable speed) : 250 - 500 RPM
  • Overall Length : 18-11/16"
  • Cord Length (ft) : 15.6'
  • Net Weight : 15.1 lbs.
  • Bit Type : Accepts SDS-MAX
  • Power Type : Corded
  • Shipping Weight : 27.8 lbs.
  • UPC Code : 088381-651325
