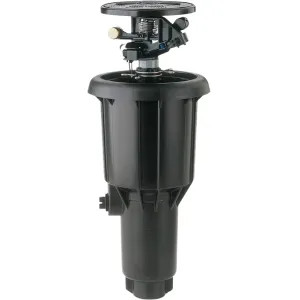

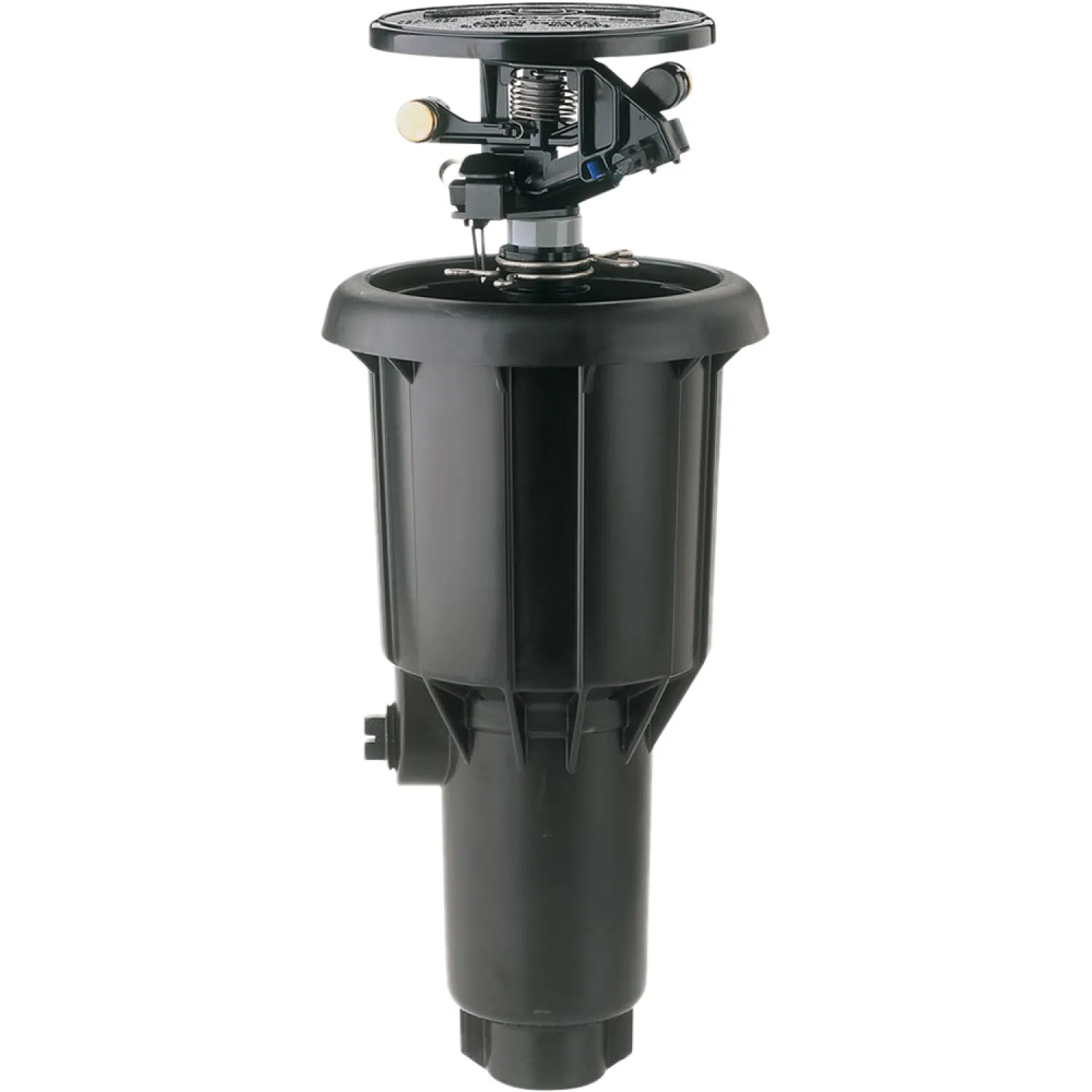

Rainbird 2045ANP B0613008NP Maxi-Paw Impact Rotor Pop-Up Sprinklers

Product Features

• Adjustable arm spring for low-pressure and low-gallonage operation.
• Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
• FP trip for full- or part-circle operation.
• Full-circle or part-circle arc 20 Degrees to 340 Degrees .
• Heavy-duty plastic case with sturdy, reinforced ribbed design.
• Heavy-duty, stainless steel retract spring assures positive sprinkler pop-down.
• Hooded bearing for longer life.
• Inlet filter screen and pressure-activated wiper seal protect internal assembly from debris to ensure positive pop-up and retraction.
• LA nozzle outlet trajectory is 11 Degrees .
• Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
• Low Angle 07LA, 10LA
• Combination 1/2" (15/21) or 3/4" (20/27) bottom inlet.
• Multi-function, pressure-activated wiper seal.
• No tools required to change nozzles.
• Nozzle outlet trajectory is 23 Degrees for 06, 07, 08, 10, and 12 nozzles.
• Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
• Optional internal Seal-A-Matic (SAM) prevents puddling and erosion caused by low head drainage and saves water.
• Optional nonpotable cover.
• Overall height: 9 3/10" (23,6 cm)
• Pop-up height: 3" (7,6 cm)
• Powerful reverse action.
• Precipitation Rate: 0.28 to 1.17 inches per hour (7 to 30 mm/h)
• Combination 1/2" (15/21) or 3/4" (20/27) FPT bottom inlet 1/2" (15/21) FPT side inlet
• Precision Jet tube (PJ) minimizes side splash.
• Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
• Proven impact drive.
• Radius with Radius Reduction Screw: 18 ft (5,4 m)
• Radius: 22 to 45 feet (6,7 to 13,7 m)
• Self-flushing inner trip with improved inner trip lever.
• Serviceable through the top of the case.
• Side inlet installation is not recommended in freezing climates.
• Side or combination bottom inlet for design flexibility.
• Standard trajectory 06, 07, 08, 10, 12
• Distance control diffuser pin.
• Straight-through flow for superior performance in dirty water.
• Three-year professional customer satisfaction policy.
• Two interchangeable low angle (LA) nozzles.
• Double-weighted arm for slower rotation and increased distance of throw.
• Easy to adjust, easy to service.
• Energy efficient, low pressure and low-gallonage operation.
• Exposed surface diameter: 5" (12,7 cm)
• Five interchangeable, color-coded MPR nozzles with standard trajectory.
• Combination 1/2
• Overall height: 9 3/10
• Pop-up height: 3
• Exposed surface diameter: 5
