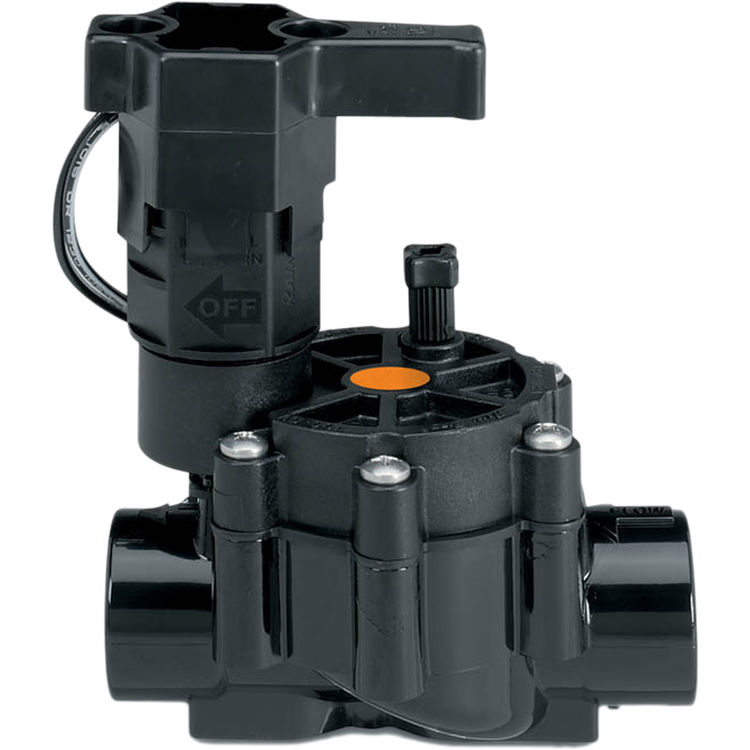

Rainbird LFV100 24 Vac 1" Low Flow Dv Control Valve
SKU: 41890
$28.70/
Save 40% · Retail: $48.01

   Available to Ship in 2-3 weeks

About the Rainbird LFV100

Rainbird LFV100 1 Low Flow Dv Control Valve. The Rain Bird LFV100 is a 1" Low Flow DV Control Valve. It features a unique "double-knife" diaphragm coupled with a 1/2" diameter seat for flawless operation at low flow rates, a double-filtered pilot flow design for maximum reliability, an external bleed to manually flush the system of dirt and debris during installation and system start up, and an internal bleed for spray-free manual operation.

Product Details

Sprinkler Valve Features: Globe Valve/ Angle Valve
Manufacturer: Rainbird
Mpn # LFV100
Dimensions 0 " X 0 " X 0 "
Weight 0.93 lbs.

Product Features

  • 24 VAC 50/60 Hz (cycles/sec) solenoid
  • Unique "double-knife" diaphragm coupled with 1/2" diameter seat for flawless operation at low flow rates.
  • Double-filtered pilot flow design for maximum reliability.
  • External bleed to manually flush the system of dirt and debris during installation and system start-up.
  • Flow: 0.20 to 8.0 gpm (0.6 to 30.0 l/m)
  • Holding current: 0.19 A (4.56 VA)
  • Inrush current: 0.30 (7.2 VA) at 60 Hz
  • Internal bleed for spray-free manual operation.
  • Low Flow Valve is available in 3/4" in-line model, and 3/4" Anti-Siphon Valve.
  • Pressure: 15 to 150 psi (1.0 to 10.3 bars)
