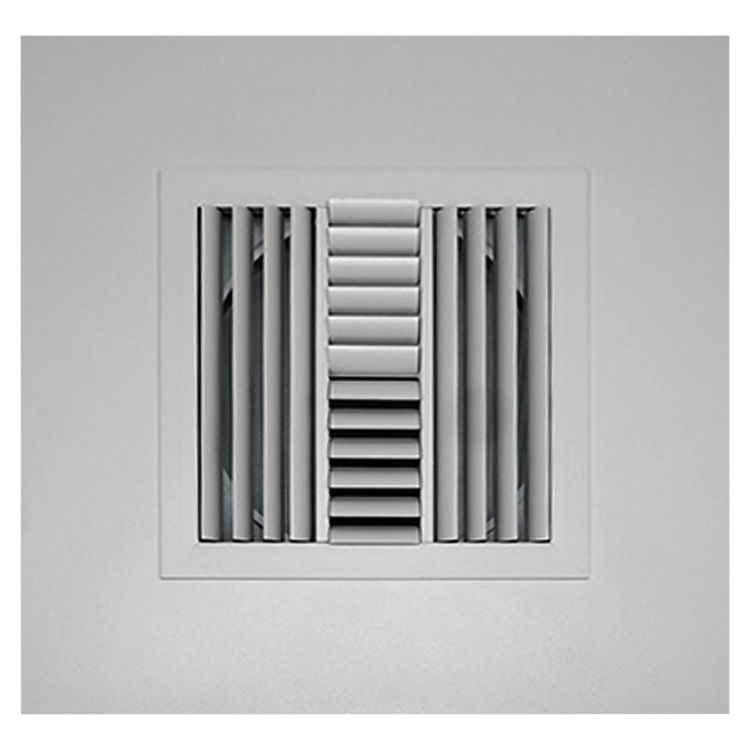

14" x 14" Adjustable Curved Blade Diffuser w/ 8" Collar, 4-Way Square, Opposed Blade Damper, White - Shoemaker 700CB40-0-14X14-8

Name: 14" x 14" Adjustable Curved Blade Diffuser w/ 8" Collar, 4-Way Square, Opposed Blade Damper, White - Shoemaker 700CB40-0-14X14-8
Brand: Shoemaker
SKU: 136697
Price: 269.00 USD
Availability: InStock

SKU: 136697

-16.0%

$ 269 .00 / ea

$ 320 .08 / ea

4 interest-free payments of $68 with Affirm. See if you qualify

local_shipping Free Shipping

block Non Refundable

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Manufacturer stocks, ships quickly!

factory Orders from the Manufacturer

You are ordering a Non-Returnable Product

Please make sure you understand the item and the dimensions before ordering.

By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns

Product Details

Manufacturer:	Shoemaker
Use:	Heating and A/C
	Ducting and Venting
Product:	Air Grille and Registers
Color:	Soft White
Mount Type:	Ceiling Mount
Material:	Steel
Type:	Air Diffuser
Shape:	Rectangle
Air Flow Direction:	4-Way
Other Info:	Easy To Install
Mpn #	700CB40-0-14X14-8
Weight	7.84 lbs.

About the Shoemaker 700CB40-0-14X14-8

About the 14" x 14" Adjustable Curved Blade Diffuser w/ 8" Collar, 4-Way Square, Opposed Blade Damper, White - Shoemaker 700CB40-0-14X14-8

Enjoy bargain pricing on the 14" x 14" Adjustable Curved Blade Diffuser with 8" Collar, 4-Way Square, Opposed Blade Damper in soft white (Shoemaker 700CB40-0-14X14-8) while it's still available here at PlumbersStock.com. The adjustable aluminum curved blades provide a square airway (CB40A, as opposed to the rectangular CB40B or CB40C). air pattern and prevent metal rattling with nylon bushings. The extruded frame is intended for surface mounting. You can operate the opposed blade damper with the use of a screwdriver. The pre-coat and powder finish will resist rust for years. Shoemaker has earned their reputation as a manufacturer by making quality solutions.

Product Features

4-way air pattern (700CB40-0)
Recessed screwdriver operated Opposed Blade Damper (700CB-0)
Adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of blades
2 x 2 steel panel with seismic support holes
Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
Standard collar diameter is the same as the diffuser size
Soft White
Optional air patterns available 1 Way (700CB-10A), 2 Way (700CB-20A), 2 Way Corner (700CB-20D), 3 Way (700CB-30A)
Optional Square Collar
Optional Non-standard size collar (available in 6 inches through 20 inches collar)
Optional TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
Optional NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700CB-NGD).
Call us, if desired, to order optional designer colors Driftwood Tan, Almond, Black Velvet, Bronze, Camaro Silver, Coffee Tan, Navajo White, Vanilla, Aluminum Paint
