Please make sure you understand the item and the dimensions before ordering.
By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns
| Manufacturer: | Shoemaker |
| Use: | Heating and A/C |
| Ducting and Venting | |
| Product: | Air Grille and Registers |
| Color: | Soft White |
| Mount Type: | Ceiling Mount |
| Material: | Steel |
| Type: | Air Diffuser |
| Shape: | Rectangle |
| Air Flow Direction: | 4-Way |
| Other Info: | Easy To Install |
| Mpn # | 700CB40-0-18X18-8 |
| Weight | 12.96 lbs. |

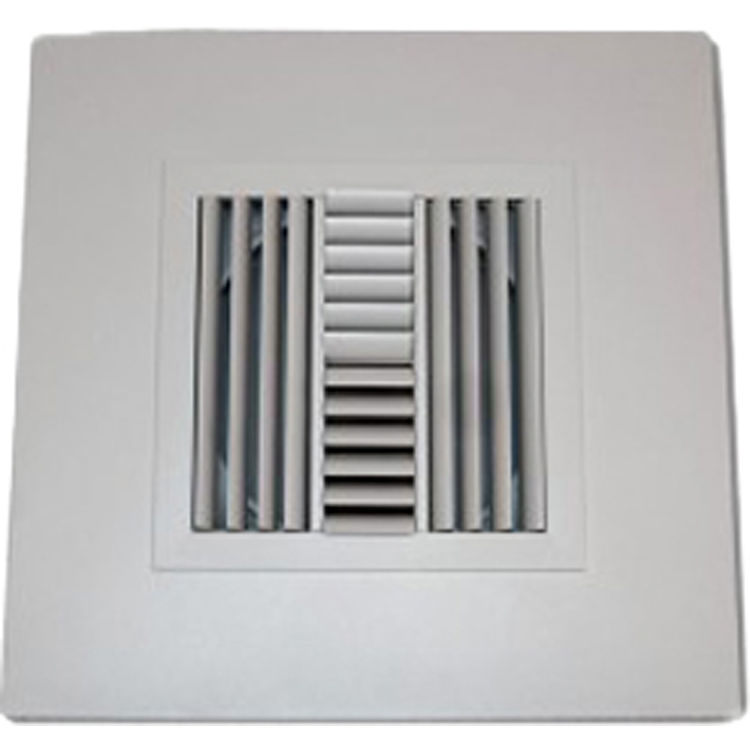

Shop a great deal on the 18" x 18" Adjustable Curved Blade Diffuser with 8" Collar, 4-Way Square, Opposed Blade Damper in soft white (Shoemaker 700CB40-0-18X18-8) online at PlumbersStock.com. The adjustable aluminum curved blades provide a square airway (CB40A, as opposed to the rectangular CB40B or CB40C). air pattern and prevent metal rattling with nylon bushings. The extruded frame is intended for surface mounting. You can operate the opposed blade damper with the use of a screwdriver. The pre-coat and powder finish will resist rust for years. Shoemaker is a trusted name for good reason. They have earned their reputation with quality manufacturing.
