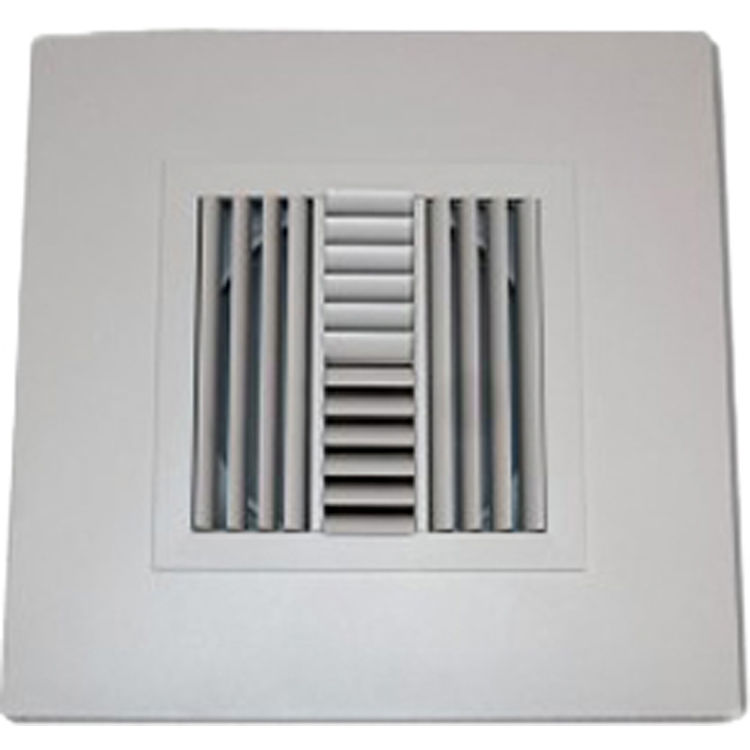

Shoemaker 700CB40-10X10-8 10X10-8 Soft White Adjustable Curved Blade Diffuser in T-Bar Panel - Shoemaker 700CB-40 Series

10X10-8 Soft White Adjustable Curved Blade Diffuser in T-Bar Panel - Shoemaker 700CB-40 Series

SKU: 135143
$200.00/ea
 Free Shipping!

  Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

10X10-8 Soft White Adjustable Curved Blade Diffuser In T-bar Panel - Shoemaker 700CB-40 Series

SKU: 135143
$200.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$200.00/ea ∞

About the Shoemaker 700CB40-10X10-8

The Shoemaker 700CB-40 Series offers steel panel with seismic support holes giving this diffuser durability and reliability.

Read More
Product: Vents and Terminations
Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Color: White
Mpn # 700CB40-10X10-8
Weight 4.00 lbs.
  • 4-way air pattern (700CB-40)
  • Adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of blades
  • 2 x 2 steel panel with seismic support holes
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional air patterns available 1 Way (700CB-10A), 2 Way (700CB-20A), 2 Way Corner (700CB-20D), 3 Way (700CB-30A)
  • Optional Recessed screwdriver operated Opposed Blade Damper (700CB-0)
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700CB-NGD).
