Shoemaker 700CB40-16X16-12 16
View 2 of Shoemaker 700CB40-16X16-12 16
View 3 of Shoemaker 700CB40-16X16-12 16
View 4 of Shoemaker 700CB40-16X16-12 16

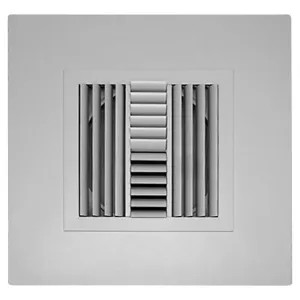

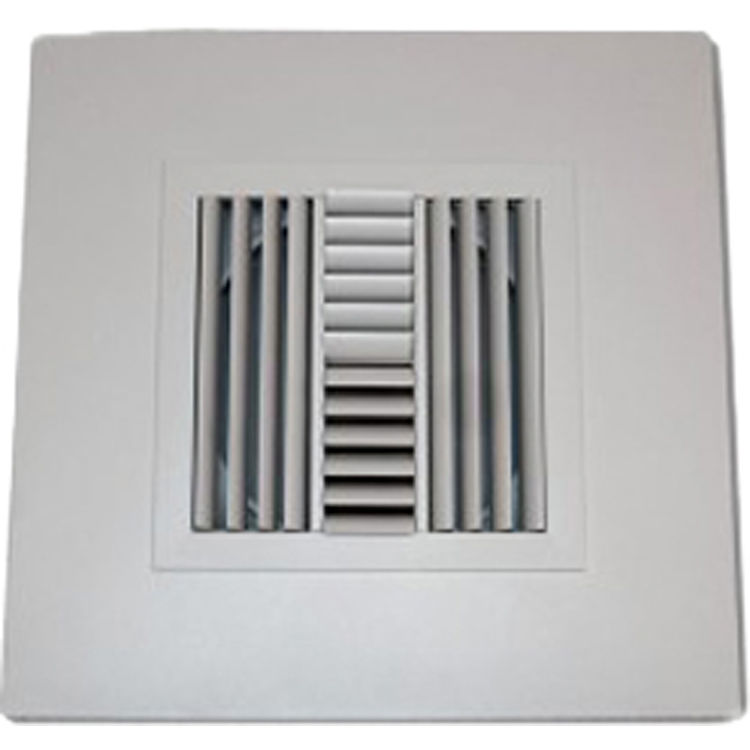

16" x 16" Adjustable Curved Blade Diffuser w/ 12" Collar, 4-Way Square, White - Shoemaker 700CB40-16X16-12

SKU: 137101
$ 294.00 / ea
 Free Shipping!

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

16" X 16" Adjustable Curved Blade Diffuser W/ 12" Collar, 4-Way Square, White - Shoemaker 700CB40-16X16-12

SKU: 137101
$294.00/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$294.00/ea

About the Shoemaker 700CB40-16X16-12

Save when you buy the 16" x 16" Adjustable Curved Blade Diffuser with 12" Collar, 4-Way Square in soft white (Shoemaker 700CB40-16X16-12) at PlumbersStock. Pros and DIY novices both love our site. The adjustable aluminum curved blades provide a square airway (CB40A, as opposed to the rectangular CB40B or CB40C). The extruded frame is intended for surface mounting. There is no opposed blade damper with the 700CB40 series, you have to check out the 700CB40-O series. The pre-coat and powder finish will resist rust for years. Shoemaker stands by its products with their focus on design, innovation, and functionality.

Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Product: Vents and Terminations
Color: White
Mpn # 700CB40-16X16-12
Weight 10.24 lbs.
  • 4-way air pattern (700CB-40)
  • Adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of blades
  • 2 x 2 steel panel with seismic support holes
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional air patterns available 1 Way (700CB-10A), 2 Way (700CB-20A), 2 Way Corner (700CB-20D), 3 Way (700CB-30A)
  • Optional Recessed screwdriver operated Opposed Blade Damper (700CB-0)
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700CB-NGD).
