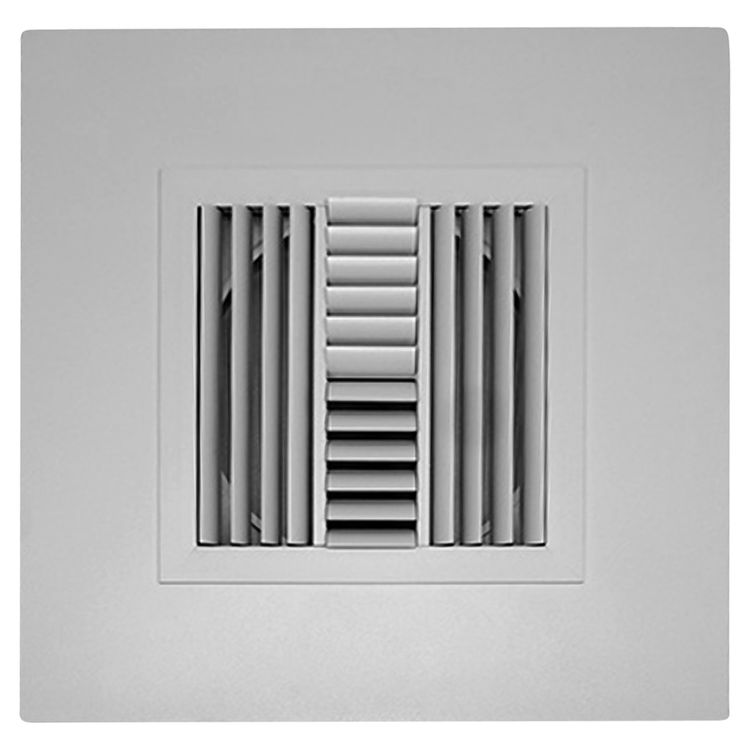

18" x 18" Adjustable Curved Blade Diffuser w/ 14" Collar, 4-Way Square, White - Shoemaker 700CB40-18X18-14

SKU: 137473
Manufacturer Image
$ 323 .00 / ea
visa mastercard american-express discover paypal crypto
local_shipping Free Shipping
block Non Refundable
Qty
remove
add
inventory_2 Unlimited Availability
add_shopping_cart Add To Cart
local_shipping Manufacturer stocks, ships quickly!
factory Orders from the Manufacturer

About the 18" x 18" Adjustable Curved Blade Diffuser w/ 14" Collar, 4-Way Square, White - Shoemaker 700CB40-18X18-14

Act fast and order the 18" x 18" Adjustable Curved Blade Diffuser with 14" Collar, 4-Way Square in soft white (Shoemaker 700CB40-18X18-14) from the experts at PlumbersStock.com. The adjustable aluminum curved blades provide a square airway (CB40A, as opposed to the rectangular CB40B or CB40C). The extruded frame is intended for surface mounting. There is no opposed blade damper with the 700CB40 series, you have to check out the 700CB40-O series. The pre-coat and powder finish will resist rust for years. Shoemaker makes solutions that you can trust. Contact us with any questions about your project or this product.

Manufacturer: Shoemaker
Use: Heating and A/C
  Ducting and Venting
Product: Air Grille and Registers
Color: Soft White
Mount Type: Ceiling Mount
Material: Steel
Type: Air Diffuser
Shape: Square
Other Info: Easy To Install
Air Flow Direction: 4-Way
Mpn # 700CB40-18X18-14
Weight 12.96 lbs.
  • 4-way air pattern (700CB-40)
  • Adjustable curved blades set in nylon bushings for easy adjustment and quiet setting of blades
  • 2 x 2 steel panel with seismic support holes
  • Diffuser available in sizes 6 inches x 6 inches through 20 inches x 20 inches
  • Square to round ADC compliant 2 inches No Labor Collar with roll formed retention bead
  • Standard collar diameter is the same as the diffuser size
  • Soft White
  • Optional air patterns available 1 Way (700CB-10A), 2 Way (700CB-20A), 2 Way Corner (700CB-20D), 3 Way (700CB-30A)
  • Optional Recessed screwdriver operated Opposed Blade Damper (700CB-0)
  • Optional Square Collar
  • Optional Non-standard size collar (available in 6 inches through 20 inches collar)
  • Optional TVB – Thermal Vapor Blanket: 1 inch thick 2 x 2 foil faced insulation blanket
  • Optional NGD – Narrow Ceiling Grid Dimples for 9/16 inch T-Bar grid applications. Dimples will keep T-Bar centered in narrow grid, improving installation quality and time (700CB-NGD).
